Hamilton Cams Valve Springs - 98.5-18 Cummins 5.9L/6.7L 24V - 07-S-003

Thoroughbred Sku #: HAM07-S-003
Manufacturer Sku #: 07-S-003

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Shipping Restrictions:
This part is NOT available to ship to the state of California.


$349.00

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

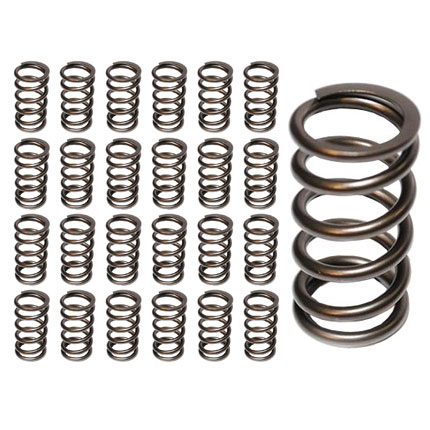

Product Name: Hamilton Cams Valve Springs - 1998.5-2018 Dodge 5.9L/6.7L Cummins
Manufacturer: Hamilton Cams
Manufacturer Part #: 07-S-003
Thoroughbred Diesel Part #: HAM07-S-003
Fitment Notes: 1998.5-2018 Dodge 5.9L/6.7L Cummins

Stock  24v springs have 78-82lbs of seat pressure at 1.380". If you are over 35psi(boost or drive pressure), stock springs do not fully control the valvetrain. Intake and exhaust valves can be blown open by boost and exhaust drive pressure which allows reversion. Reversion can hurt your power potential by allowing exhaust gasses to enter the cylinder on the intake stroke. Inert gasses in the exhaust, when re-introduced into the cylinder shield the fuel particles from oxygen in the cylinder. This does a few things that negatively affect power. It increases the time delay from start of injection to start of combustion, it decreases the maximum pressure and maximum temperature reached in the cylinder and it increases the total time needed to completely burn the available fuel. Correct valve spring pressure is a very important piece of power production. Hamilton springs solve this problem.

Nose pressure has been lowered from 220lb to 180lb recently. Watch out for other companies that have nose pressures over 250lb. Your cam will have a shorter life with high rate springs. Don’t just ask what seat pressure is when you are shopping for springs, ask what the pressure is on the nose(1.031" with OEM cams or .958" with the 188-220) Lately we have seen a few cams damaged when customers run cheaper aftermarket springs from other shops. We only offer warranty on our cams with our cams if you run our springs and tappets. These springs are great to 4500 rpm. Over that the #110 springs are necessary. Over 4500 rpm with #103 springs you will see broken or cracked retainers due to float and harsh valve actuation.

*tool steel retainers are not included but can be purchased separately.

Hamilton Cams Valve Springs Features:

  • Solution: Hamilton Springs:
    • Address the issue of inadequate valve spring pressure to control valvetrain under high boost or drive pressure conditions.
  • Nose Pressure:
    • Recently lowered from 220lbs to 180lbs.
    • Caution against other companies with nose pressures exceeding 250lbs, as it can shorten cam life.
  • Importance of Nose Pressure:
    • Critical to inquire about both seat and nose pressure when shopping for springs.
  • Warranty and Compatibility:
    • Warranty on cams is provided only when Hamilton springs and tappets are used.
  • Spring Limits:
    • Springs are effective up to 4500 rpm; beyond that, #110 springs are necessary to avoid issues like broken or cracked retainers due to valve float and harsh valve actuation.
  • Tool Steel Retainers:
    • Not included but available for separate purchase.
  • For more information on Hamilton Cams call us at 1-859-737-4966

Reviews

  • Do these come with keepers and caps?

    Caleb Crompton | 9/13/2023

    No sold separately

  • Will this set of springs work with a stock cam

    Nate Pratt | 5/27/2022

    Yes

  • Is $249 the price for a full set of valve springs?

    Tyler Woodington | 2/10/2021

    Yes, full set.
