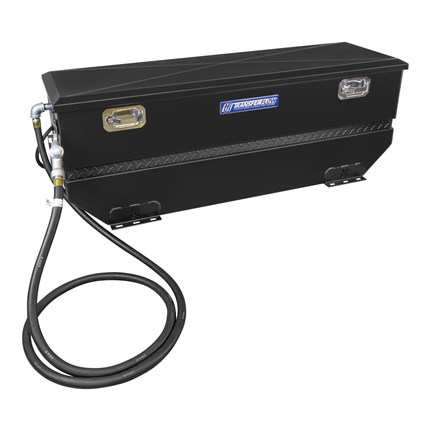

Transfer Flow Refueling Tank & Tool Box Combos - 40 Gal - 0800115195

Thoroughbred Sku #: TFL0800115195
Manufacturer Sku #: 800115195


$2,310.18

+ $189.95 Shipping
Universal - Many Applications

Product Details

Product Name: Transfer Flow Toolbox Refueling Fuel Tank Combos
Manufacturer: Transfer Flow
Manufacturer Part #: 0800115195
Thoroughbred Diesel Part #: TFL0800115195
Fitment Notes: Transfer Flow Toolbox Refueling Tank Combo - Fits: Universal - (Powder Coated Black)(Aluminized Steel) - 40 Gal - 0800115195
Dimensions: 59"L x 21"W x 21"H

Transfer Flow manufactures a variety of in-bed auxiliary fuel tank systems including our popular toolbox and fuel tank combos. With this system, fuel is automatically pumped from the Transfer Flow auxiliary tank into the stock fuel tank, extending the driving range of the vehicle. The toolbox fuel tank is computer controlled by either our TRAX-II or MaxFlo-TFI operating system; a dash-mounted LCD displays the gallons in the main and auxiliary tanks, as well as the vehicle's combined fuel capacity. Alternatively, our MaxFlo-TFI system does not require an LCD because it works with your existing fuel gauge. Transfer Flow, Inc. has introduced 30-gallon and 50-gallon toolbox and refueling tank combos - great for manually filling your fuel tank as well as filling other vehicles or equipment. The 30-gallon unit will fit short and long bed pickups, while the 50-gallon unit will fit long bed pickups only.

Transfer Flow's refueling tanks come with a Department of Transportation Special Permit Number, allowing them to carry gasoline, diesel, gasohol, and kerosene fuels.

The toolbox and refueling tank combos come pre-assembled with a 12-volt pump located inside the locking storage compartment. The fuel nozzle is mounted on the outside of the toolbox, and comes with an 8-foot hose. The storage compartment of the 30-gallon unit has about 4 1/2 cubic feet of space, while the 50-gallon unit has a storage area of about 8 cubic feet. The tanks are made from 14-gauge aluminized steel for superior rust resistance and strength, and are mounted inside the bright aluminum diamond plate shell of the toolbox. The tanks are baffled to reduce fuel sloshing.

An optional riser kit is available that allows you store several sheets of plywood or sheetrock under the tank. Comes with a 60,000 mile/3 year limited warranty.

NOTE: This product ships truck freight. Please allow 1-2 weeks for delivery.
  • Toolbox & Refueling Tank Combo is available in 30 and 50 gallons

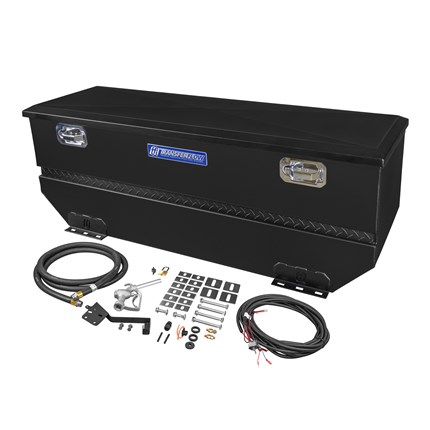

  • Includes eight foot hose, fill nozzle, and refueling pump

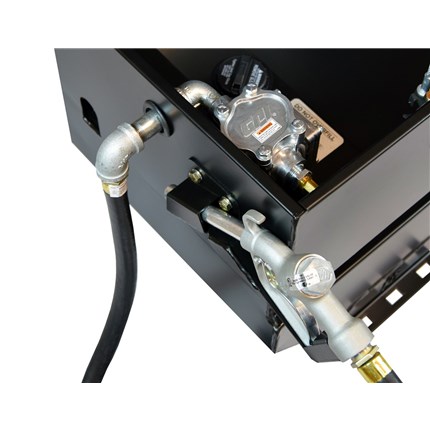

  • 12-volt pump mounted inside locking storage compartment
  • 30 gallon unit has about 4 1/2 cubic feet of storage space
  • 50 gallon unit has about 8 cubic feet of storage space
  • Toolbox & Refueling Tank Combos have D.O.T. Special Permit Number
  • Fuel tank is baffled to prevent fuel sloshing
  • 30 gal. unit dimensions ” 61 3/"L, 17 1/2 W, 19 1/2 D
  • 50 gal. unit dimensions ” 61 3/"L, 27 1/2 W, 19 1/2 D
  • Optional Riser Kit raises Toolbox & Refueling Tank Combo 3
  • 5/8 to allow for storage of plywood
  • 3 year/60,000 mile limited warranty


Reviews

  • Do you have in stock model 800116230. A 30 gallon tank and tool box if so how much

    Alan f Uhl | 8/1/2024

    Not at this time.

  • Can I close tonneau cover on 40 gallon combo tank

    Jeff Wilson | 9/1/2021

    Here are the Dimensions: 59"L x 21"W x 21"H. do you have over 21” to the tonneau cover?

  • The 100 G fuel tank. Does it have a tool box.

    James Baxter | 9/2/2020

    Yes.

  • i see the dimensions for the toolbox portion but not the complete size of the unit. im wondering what the dimensions are and if ill be able to close a tonneau cover over the box.

    Lucas Hoffman | 7/17/2019

    This would  be  the unit dimensions  61  L, 17 1/2 W, 19 1/2 D

  • Does this come in gravity feed

    Billy carter | 1/30/2022

    Not at this time.

  • Can this be gravity fed into the original tank? If it depends on the state I am in Arizona.

    Ivan Martinez | 1/30/2020

    No, these tanks are designed to be used with a pump system.
