BD Diesel Dodge 47RH Transmission & Converter Package - 1994-1995 4wd c/w Billet Input

Thoroughbred Sku #: BDD1064154BM-CRE

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit


$6,179.00

+ $200.00 Shipping
NOTE: BD makes returning your core easy. Use the return label from BD’s website (CLICK HERE) and the cost will be deducted from your core credit or charged to your card if you chose the "Pay Core Later" option

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

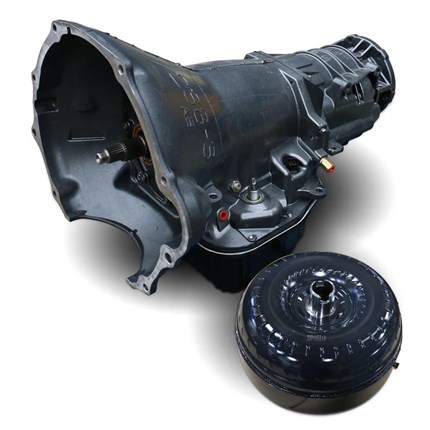

Product Name: BD Diesel Dodge 47RH Transmission & Converter Package - 1994-1995 4WD c/w Billet Input
Manufacturer: BD Diesel
Manufacturer Part #: 1064154BM
Thoroughbred Diesel Part #: BDD1064154BM
Fitment Notes: 1994-1995 Dodge Cummins 4WD

BD Diesel's Dodge 47RE Transmission & Converter Package for 1994-1995 Dodge Cummins 4WD diesels.

BD Diesel Dodge 47RE Transmission & Converter Package Features:

  • TRANSMISSION:
    • TRANSMISSION:
    • Upgraded Valvebody
    • Increased line pressure to 190-200psi
    • Stock thrust bushings replaced with roller Torrington bearings
    • Clutch Count: DIRECT 5
    • Clutch Count: FORWARD 5
    • Clutch Count: OD 6
    • Clutch Count: OD DIRECT 10
    • High temp Raybestos band
    • Billet band strut
    • Billet 300M input shaft
    • BD rigid aluminum heavy Duty transmission pan
    • Pan adds 2qt extra oil capacity
    • Pan heat-dissipating fins keep temperature down
    • Magnetic drain plug
    • Increase the durability of your drivetrain
    • BD auxiliary full flow filter kit for extra protection
    • Cooler line case saver in every transmission
    • Every transmission is tested on a dyno
    • Not warranted for Race or Sled Pull use
  • TORQUE CONVERTOR:
    • Enhanced Stall - Street/Towing applications
    • Machined pistons
    • HD springs absorb shock of engagement
    • Stamp forged 1-piece cover
    • Eliminates warpage from clutch heat
    • Taller cover can be rebuilt more often
    • Trapezoid teeth design
    • Engineered tighter tolerances
    • Self-centering teeth design increases contact decreases wear and chatter
    • Thrust bearings - not plastic thrust washers
    • Riveting process ensures alignment & eliminates vibration or embrittlement from welding
    • Cast stator designs maximizes torque
    • New sprag components ensure long term durability
    • Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency
    • Reduced overall weight by 12lbs compared to competitors
  • For more on BD Diesel call us at 1-859-737-4966.

Warranty

Parts

  • 36-Months
  • 150,000 Miles

Labour

  • 24,000 miles
  • 12-Months

Note

  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
