BD Diesel Dodge Performance Plus Transmission (Includes Billet Input Shaft) - 2000-2002 47RE 4WD - 1064184BF

Thoroughbred Sku #: BDD1064184BF-CRE

Item Options:

Documents - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$4,945.00

+ $200.00 Shipping
NOTE: BD makes returning your core easy. Use the return label from BD’s website (CLICK HERE) and the cost will be deducted from your core credit or charged to your card if you chose the "Pay Core Later" option

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

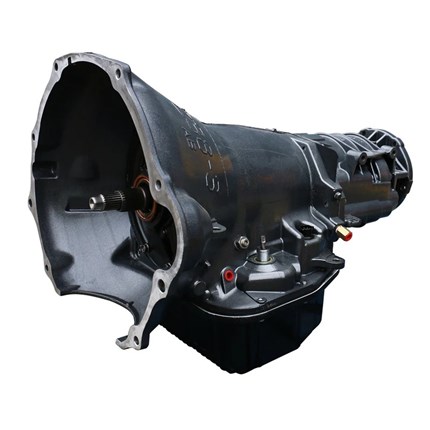

Product Name: BD Diesel Dodge Performance Plus Transmission (Includes Billet Input Shaft)
Manufacturer: BD Diesel
Manufacturer Part #: 1064184BF
Thoroughbred Diesel Part #: BDD1064184BF
Fitment Notes: BD Diesel Dodge Performance Plus Transmission (Includes Billet Input Shaft) - 2000-2002 47RE 4WD - 1064184BF

BD Diesel Dodge Performance Plus Transmission (Includes Billet Input Shaft)
2000-2002 47RE 4WD


Warranty: 36 month / 150,000 mile limited warranty on non competitive, racing or sled-pulling applications. Broken shafts & abuse are not covered under warranty

Your transmission was only designed to handle the torque and horsepower the stock engine delivers, and in the case of some Dodge models, even the stock torque can present a challenge. So when you start adding power modules, turbo upgrades and other bolt-ons, it's only a matter of time before the transmission wears out and eventually fails.

BD transmissions are built specifically to handle the high torque loads of diesel engines at our state-of-the-art transmission facility. We re-program the valve body for higher line pressure, and add heavy-Duty clutches with up to 25% more material than stock. The stock thrust washers, which disintegrate and leave metal filings in your transmission, are replaced with roller Torrington bearings. We install a new billet input shaft for applications with extra big tires and modified power levels.

Inside each transmission is a NEW DESIGN valve body that achieves up to 80% higher clutch apply pressures over the stock unit and up to 50% over the competitors with the pressure increase starting at much lower engine rpm's and at lighter throttle pedal position movement. Light throttle shift firmness is also maintained at these higher apply pressures and no shuttle shifting problems.

Our transmission packages also include a BD rigid aluminum heavy Duty transmission pans, which adds extra oil capacity and reduces case flex, plus, includes a BD auxiliary full flow filter kit for extra protection.

Each transmission is dyno-tested to make sure it functions properly in all gears, then the pan is dropped and everything inspected and adjusted before it is shipped to you in one of our containers. Torque Converter sold separately.

  • Comes with Billet Input
  • Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
  • Not warranted for Race or Sled Pull use
  • Increase the durability of your drivetrain
  • Revised oil circuits
  • Roller bearings throughout
  • Extra clutches and stronger internals
  • Handles up to 300% more power and torque than the stock transmission
  • Comes with BD's heavy Duty transmission pan
  • Most applications come bundled with Full Flow Transmission Filter kit
