BD Diesel Dodge 68RFE Transmission & Converter Package - Dodge 2007.5-2018 4wd c/w Billet Input

Thoroughbred Sku #: BDD1064264BM-CRE

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:


$8,019.00

+ $200.00 Shipping
NOTE: BD makes returning your core easy. Use the return label from BD’s website (CLICK HERE) and the cost will be deducted from your core credit or charged to your card if you chose the "Pay Core Later" option

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

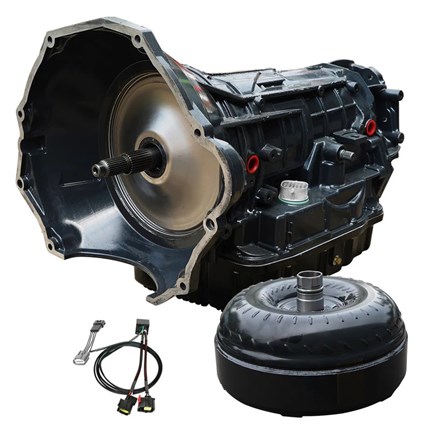

Product Name: BD Diesel Dodge 68RFE Transmission & Converter Package - Dodge 2007.5-2018 4WD c/w Billet Input
Manufacturer: BD Diesel
Manufacturer Part #: 1064264BM
Thoroughbred Diesel Part #: BDD1064264BM
Fitment Notes: 2007.5-2018 Dodge Cummins 4WD

BD Diesel's Dodge 68RFE Transmission & Converter Package for 2007.5-2018 Dodge Cummins 4WD diesels.

BD Diesel Dodge 68RFE Transmission & Converter Package Features:

  • TRANSMISSION:
    • Hard anodized valve body and new solenoid pack installed in every unit
    • Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks
    • Heavy Duty cam & roller design low reverse one way clutch
    • New 4C billet spring retainer
    • Steel girdle added to 2C piston to allow for more clutches and broader apply area
    • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
    • Over Drive clutches 33% increase & 2C clutches 33% increase
    • Custom Big Stack overdrive shaft
    • BD reinforced accumulator plate
    • TCC limit valve machined and sleeved to address high wear area with in pump
    • BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
    • BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
    • Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
  • TORQUE CONVERTOR:
    • Enhanced Stall - Street/Towing applications
    • Machined pistons
    • HD springs absorb shock of engagement
    • Stamp forged 1-piece cover
    • Eliminates warpage from clutch heat
    • Taller cover can be rebuilt more often
    • Trapezoid teeth design
    • Engineered tighter tolerances
    • Self-centering teeth design increases contact decreases wear and chatter
    • Thrust bearings - not plastic thrust washers
    • Riveting process ensures alignment & eliminates vibration or embrittlement from welding
    • Cast stator designs maximizes torque
    • New sprag components ensure long term durability
    • Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency
    • Reduced overall weight by 12lbs compared to competitors
  • For more on BD Diesel call us at 1-859-737-4966.

Warranty

Parts

  • 36-Months
  • 150,000 Miles

Labour

  • 24,000 miles
  • 12-Months

Note

  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

Reviews

  • What hp rating does this transmission have.

    Heath Zakrzewski | 4/10/2023

    550-600 hp
