BD Dodge 68RFE Transmission & Torq Force Converter Package - Dodge 2007.5-2018 4wd

Thoroughbred Sku #: BDD1064264SS-CRE

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit


PAYMENT NOTE: If you choose Pay Core Later, from the Core option below, you will not be able to pay for this order using Affirm or PayPal

$7,260.00

+ $350.00 Shipping
NOTE: The shipping charge on your order will be to get your product to you.  The core return label charge is to cover shipping your core back to BD.

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

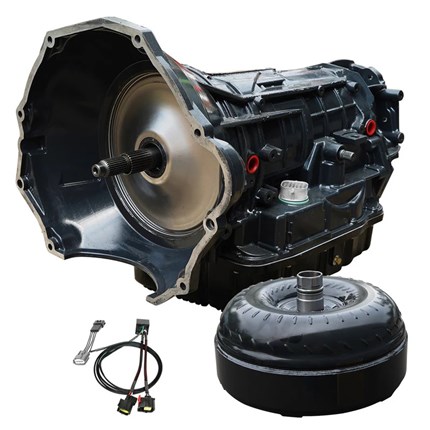

Product Name: BD Diesel 68RFE Transmission & Torq Force Converter Package
Manufacturer: BD Diesel
Manufacturer Part #: 1064264SS
Thoroughbred Diesel Part #: BDD1064264SS
Fitment Notes: 2007.5-2018 Dodge Cummins 4WD

BD Diesel's 68RFE Transmission & Torq Force Converter Package for 2007.5-2018 Dodge Cummins 4WD diesels.

BD Diesel Torque Converter Features:

  • TRANSMISSION:
    • Hard anodized valve body and new solenoid pack installed in every unit
    • Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks
    • Heavy Duty cam & roller design low reverse one way clutch
    • New 4C billet spring retainer
    • Steel girdle added to 2C piston to allow for more clutches and broader apply area
    • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
    • Over Drive clutches 33% increase & 2C clutches 33% increase
    • Custom Big Stack overdrive shaft
    • BD reinforced accumulator plate
    • TCC limit valve machined and sleeved to address high wear area with in pump
    • BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
    • BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
  • PROFORCE CONVERTER:
    • Good for 550 flywheel HP
    • Ideal replacement for stock torque converter
    • High performance Enhanced stall stator
    • Great for street and towing applications
    • Lower rpm response than the stock converter
    • Furnaced brazed turbine fins for improved fluid coupling efficiency
    • Damper springs replaced
    • 11.625 inch dual-clutch
    • Billet forged front cover with thicker walls and stronger mounting pads
  • For more on BD Diesel call us at 1-859-737-4966.

Warranty

Parts

  • 36-Months
  • 150,000 Miles

Labor

  • 24,000 miles
  • 12-Months

Note

  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
