BD 68RFE Transmission - Dodge 2019-2022 4wd

Thoroughbred Sku #: BDD1064294-CRE

Item Options:

Documents - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$5,515.00

+ $200.00 Shipping
NOTE: BD makes returning your core easy. Use the return label from BD’s website (CLICK HERE) and the cost will be deducted from your core credit or charged to your card if you chose the "Pay Core Later" option

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

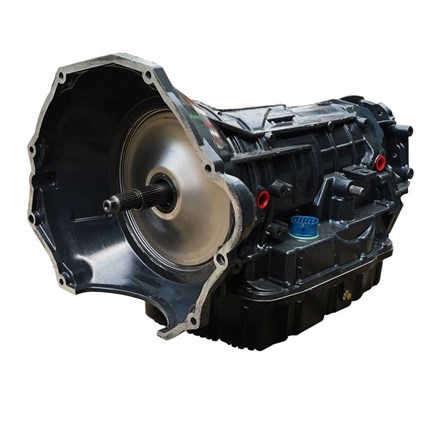

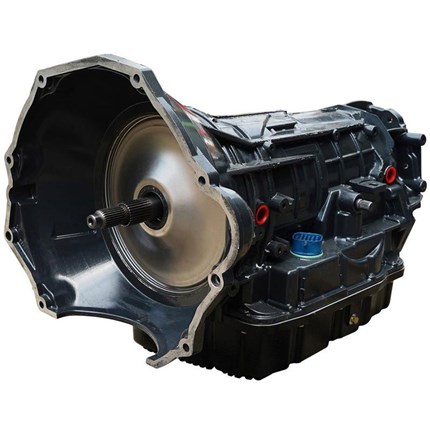

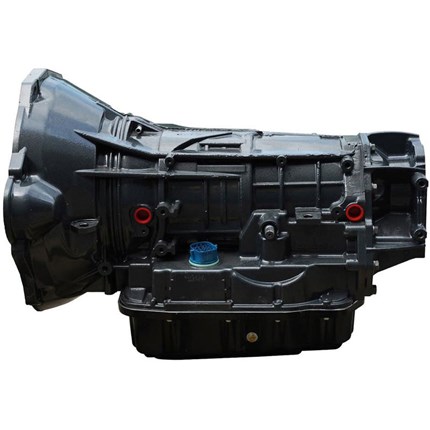

Product Name: BD 68RFE Transmission - Dodge 2019-2022 4WD
Manufacturer: BD Diesel
Manufacturer Part #: 1064294
Thoroughbred Diesel Part #: BDD1064294
Fitment Notes: 2019-2022 Dodge 4WD

BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces.

BD 68RFE Transmission Features:

  • Hard anodized valve body and new solenoid pack installed in every unit
  • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
  • Heavy duty cam & roller design low reverse one way clutch
  • New 4C billet spring retainer
  • Steel girdle added to 2C piston to allow for more clutches and broader apply area
  • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
  • Over Drive clutches 33% increase & 2C clutches 33% increase
  • Custom Big Stack overdrive shaft
  • BD reinforced accumulator plate
  • BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
  • Available with Billet input shaft
  • Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
  • For more information on BD Diesel call us at 1-859-737-4966

INSTALL TIME

  • 9 Hours

WARRANTY

Parts

  • 36-Months
  • 150,000 Miles
Labour
  • 12-Months
  • 24,000 miles
Note
  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

NOTE

  • BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
  • Special tuning required for 2019-up applications for increased line pressure

EMISSIONS

  • This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
