BD Diesel Ford E4OD Transmission & Converter Package - 95-97 Ford Powerstroke 4wd c/w Filter Kit

Thoroughbred Sku #: BDD1064424SM-CRE

Item Options:

Documents - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$5,045.00

+ $200.00 Shipping
NOTE: BD makes returning your core easy. Use the return label from BD’s website (CLICK HERE) and the cost will be deducted from your core credit or charged to your card if you chose the "Pay Core Later" option

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

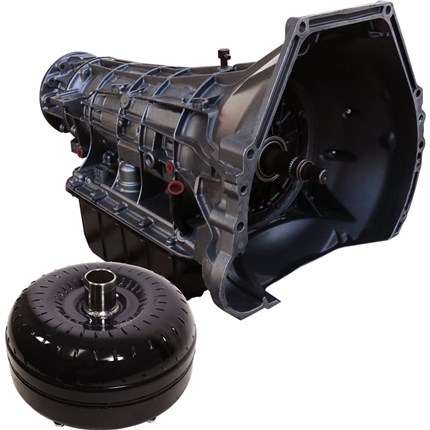

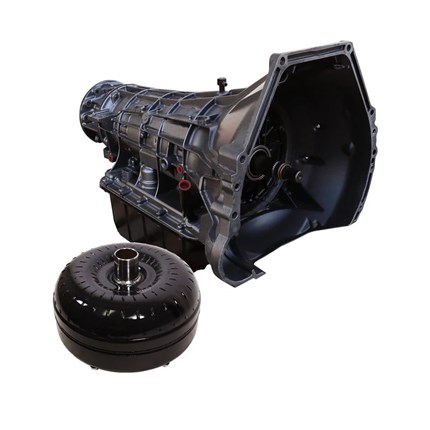

Product Name: BD Diesel Ford E4OD Transmission & Converter Package - 1995-1997 Ford Powerstroke 4WD c/w Filter Kit
Manufacturer: BD Diesel
Manufacturer Part #: 1064424SM
Thoroughbred Diesel Part #: BDD1064424SM
Fitment Notes: 1995-1997 Ford Powerstroke 4WD

BD Diesel's Ford E4OD Transmission & Converter Package for 1995-1997 Ford Powerstroke 4WD diesels.

BD Diesel Ford E4OD Transmission & Converter Package Features:

  • TRANSMISSION:
    • Machined center support
    • Machined intermediate piston
    • Machined low/reverse pressure plate
    • Machined rear ring gear hub
    • Added lube circuits to OD planet
    • Added lube and support to output and intermediate shafts
    • Replaced all aluminum planetaries with steel
    • Drilled and tapped direct and intermediate feeds to prevent leaks at case
    • Re-programmed accumulator body
    • Full shift kit with line mod valve to increase pressures
    • Accumulator body enhanced oil flow
    • Increased cooler pressure
    • Increased pressure to converter
    • Creates positive clutch application
    • Created lube circuit for towing in overdrive
    • 1990-2003 include auxiliary frame mounted full flow filter kit
    • Clutch Count: COAST CLUTCH 2
    • Clutch Count: FORWARD 5
    • Clutch Count: DIRECT 5
    • Clutch Count: LOW REVERSE 7
    • Clutch Count: INTERMEDIATE 4
    • Clutch Count: OVERDRIVE 4
    • Pan adds 6qt extra oil capacity
    • Fully rollerized geartrain
    • Tighter clutch packs that provide a quicker shift
    • 30%-40% more clutch material with additional steels
    • Improved internal lubrication by adding high power boost valves
    • Reworked front pump
    • Improved bearing designs
    • Upgrade supports
    • Upgraded sprags
    • Sure-loc snap rings
    • Solenoids hard wiring providing high temperature resistance
    • Increase the durability of your drivetrain
    • Revised oil circuits
    • Handles up to 300% more power and torque than the stock transmission
    • Extra clutches and stronger internals
    • BD rigid aluminum heavy Duty transmission pan
    • Pan reduces case flex
    • Pan reduces internal oil leakage
    • Pan heat-dissipating fins keep temperature down
    • Pan magnetic drain plug
    • Not warranted for Race or Sled Pull use
    • Each transmission is dyno tested
  • TORQUE CONVERTOR:
    • Enhanced Stall - Street/Towing applications
    • Torque multiplying cast aluminum stators
    • Lower rpm response than the stock converter
    • More efficient operation
    • Less heat and better fuel economy.
    • Stamp-forged steel front cover
    • Furnace-brazed fins
    • Up to triple the amount of lock-up clutch material
  • For more on BD Diesel call us at 1-859-737-4966.

Warranty

Parts

  • 36-Months
  • 150,000 Miles

Labour

  • 24,000 miles
  • 12-Months

Note

  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

Reviews

  • Does it down shift coming to a stop or does it do the stock thing of going into neutral at certain rpms

    Steve clements | 1/3/2021

    Downshift coming to a stop.
