Product Details

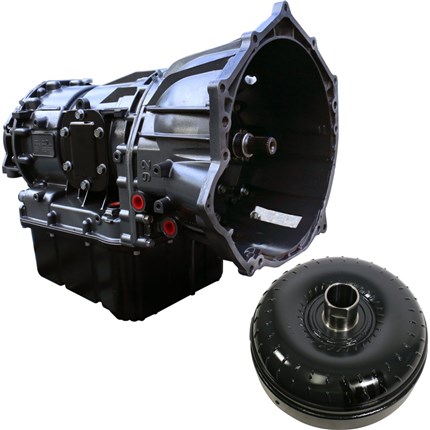

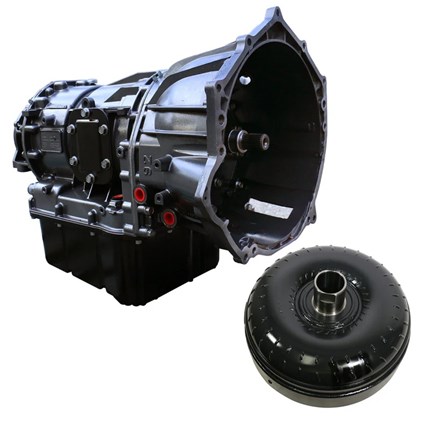

Product Name: BD Diesel Duramax Allison Transmission & Converter Package
Manufacturer: BD Diesel
Manufacturer Part #: 1064704SS
Thoroughbred Diesel Part #: BDD1064704SS
Fitment Notes: 2001-2004 Chevy LB7 4WD

BD Diesel's Duramax Allison Transmission & Converter Package for 2001-2004 Chevy LB7 4WD diesels.

BD Diesel Duramax Transmission & Converter Package Features:

  • TRANSMISSION:
    • Increase the durability of your drivetrain
    • BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
    • High energy clutch material
    • Revised oil circuits
    • New convertor lock up valve to boost lock-up pressures
    • New A & B trim valves deliver full line pressure to the clutches
    • Increased clutch count
    • Clutch Count: C1 8 clutches (14% increase over stock)
    • Clutch Count: C2 7 clutches (17% increase over stock)
    • Clutch Count: C3 6 clutches (50% increase over stock)
    • Clutch Count: C4 6 clutches (0% increase over stock)
    • Clutch Count: C5 7 clutches (17% increase over stock)
    • Each transmission is dyno tested
  • TORQUE CONVERTOR:
    • Enhanced Stall - Street/Towing applications
    • Torque multiplying cast aluminum stators
    • Lower rpm response than the stock converter
    • More efficient operation
    • Less heat and better fuel economy.
    • Stamp-forged steel front cover
    • Furnace-brazed fins
    • Up to triple the amount of lock-up clutch material
  • For more on BD Diesel call us at 1-859-737-4966.

Warranty

Parts

  • 36-Months
  • 150,000 Miles

Labour

  • 24,000 miles
  • 12-Months

Note

  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

Reviews

  • Do the trans cool lines and everything like that that I need to install come with the transmission when I buy it

    Noah | 5/18/2021

    No, you would reuse your transmission lines.

  • What all comes with the BD Diesel Duramax Allison Transmission & Converter Package - 01-04 Chevy LB7 4wd whenever you buy it

    Noah | 5/18/2021

    ·  TRANSMISSION:

    • Increase the durability of your drivetrain
    • BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
    • High energy clutch material
    • Revised oil circuits
    • New convertor lock up valve to boost lock-up pressures
    • New A & B trim valves deliver full line pressure to the clutches
    • Increased clutch count
    • Clutch Count: C1 8 clutches (14% increase over stock)
    • Clutch Count: C2 7 clutches (17% increase over stock)
    • Clutch Count: C3 6 clutches (50% increase over stock)
    • Clutch Count: C4 6 clutches (0% increase over stock)
    • Clutch Count: C5 7 clutches (17% increase over stock)
    • Each transmission is dyno tested

    ·  TORQUE CONVERTOR:

    • Enhanced Stall - Street/Towing applications
    • Torque multiplying cast aluminum stators
    • Lower rpm response than the stock converter
    • More efficient operation
    • Less heat and better fuel economy.
    • Stamp-forged steel front cover
    • Furnace-brazed fins
    • Up to triple the amount of lock-up clutch material
