PPE Allison Deep Transmission Pan (Brushed) - 01-19 Allison 1000/2000/2400 Transmission With Double Deep Filter

Thoroughbred Sku #: KITPPE128051010-128059150

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Shipping Restrictions:
This part is NOT available to ship to the state of California.


Quick Ship

$368.98

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
ppe

View More Products From

PPE

Product Details

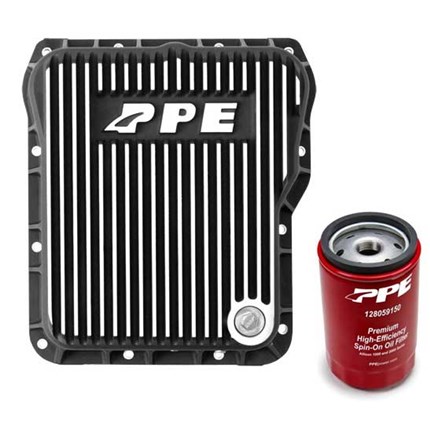

Product Name: PPE Allison Deep Transmission Pan (Brushed) - 2001-2019 Allison 1000/2000/2400 Transmission With Double Deep Filter
Manufacturer: PPE
Thoroughbred Diesel Part #: KITPPE128051010-128059150
Fitment Notes: 2001-2019 GM 6.6L Duramax (Allison 1000/2000/2400)

The new heavy Duty PPE Transmission pan is cast from A356-T6 aluminum alloy. Fluid capacity increased by 4 quarts. Robust side ribs provide added strength to transmission. 1 1/4" high-internal heatsink baffles absorb heat and channel oil flow to filter oil pick-up port. 3/4" deep-bottom heatsink, with flow through channels, dissipates heat into passing air flow. Bare aluminum finish significantly reduces transmission oil temperatures. 1/4" NPT and 1/8" NPT threaded ports for gauge sensors. Retains use of high quality original Allison pan gasket.

Includes Allison deep pan filter and installation hardware. 1" 304 Stainless drain plug with large 17mm hex head and re-usable VITON O-ring.

  • NOTE: This product CAN NOT ship to California due to CARB regulations.
  • Cast from A356-T6 aluminum
  • Robust side ribs provide added strength to transmission
  • Retains use of high quality original Allison pan gasket
  • Significantly reduces transmission oil temperatures
  • Includes Allison deep pan filter
  • Fluid capacity increased by 4 quarts
  • 1/4" NPT and 1/8" NPT ports available for additional sensors
  • Re-usable VITON drain plug O-ring
  • 1" 304 Stainless Steel drain plug with 17mm hex head
  • High strength Neodymium drain plug magnet collects harmful ferrous metals
Product Name: PPE Double-Deep Spin-On Filter - 2001-2019 GM Duramax - Allison 1000/2000 Series

The PPE 128059150 Double-Deep Spin-On Filter promotes more responsive and smother shifts in your Allison 1000 or 2000 Series transmission. This spin on oil filter features a filter media that catches particles that are 15 microns, which is half the size of what a standard transmission filter can catch. This filter also offers well over double (2.72 times) the surface area for more complete filtration that also improves fluid flow to allow better oiling of internal components.

PPE Double-Deep Spin-On Filter Features:

  • 15 Micron Filter
  • Improved Fluid Flow & Filtering
  • Over 2.5 Times More Filter Surface Area
  • Promotes Smoother, More Responsive Shifts
  • For more information on PPE call us at 1-859-737-4966.

Reviews

Submit a question

  • Will this PPE deep tranny pan fit under stock skid plate? If not, is there a skid plate that will work with it?

    John Sawyer | 4/1/2020

    Yes, this will fit with the stock skid plate.

  • Do you offer an extra capacity Trany pan with a drain plug and filter and pickup for a. 2021 ford 4x4 4 door super duty 10 speed

    Mike Lopes | 1/9/2024

    No

  • Will this pan and filter work with a 5.7 gas engine with the zf8hp70h

    Earl Libby | 11/14/2020

    No.
