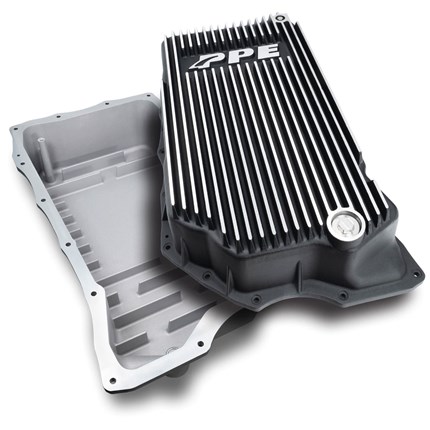

PPE Heavy-Duty Cast Aluminum 10l1000 Deep Transmission Pan - 2020-2023 GM Duramax L5P 6.6L (BRUSHED)

Thoroughbred Sku #: PPE128051410
Manufacturer Sku #: 128051410

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


Quick Ship

$377.99

free-shipping-no-handling
Simple

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: PPE Heavy-Duty Cast Aluminum 10l1000 Deep Transmission Pan - 2020-2023 GM Duramax L5P 6.6L (BRUSHED)
Manufacturer: PPE
Manufacturer Part #: 128051410
Thoroughbred Diesel Part #: PPE128051410

The Allison transmission has a reputation for performance and longevity. Now that it is available as the 10L1000, the reputation continues.

Get the best protection and performance out of your 10L1000 by upgrading to the PPE Heavy-Duty Cast Aluminum Deep Transmission pan. The deep PPE Pan Increases fluid capacity by a full gallon which lowers transmission fluid temperature and increases thermal stamina. The engineered design includes cast aluminum fins and heat sinks to improve heat dissipation. The external gussets provide extra support to the machined flange to increase overall robustness.

PPE includes a high-power Neodymium magnet-equipped billet 304 stainless steel drain plug with Viton O-ring seal and a 9/16’’ ORB Neodymium Magnetic Plug with Viton O-ring seals for the fluid level check port. These powerful magnets pull ferrous metals out of the fluid before they can do damage to the internals.

PPE Heavy-Duty Cast Aluminum Allison 10 Speed Deep Transmission Pan Features:

  • Increases fluid capacity by 4 quarts which lowers transmission fluid temperature
  • Thick, cast A356.0 T6 aluminum alloy
  • .75’’ inch external fins engineered to utilize underbody air flow
  • .75’’ and 1.2’’ internal heat sinks improve heat dissipation and reduce sloshing
  • One-inch Neodymium magnet-equipped 304 stainless steel drain plug with Viton O-ring seal
  • 9/16’’ ORB Neodymium Magnetic Plug with Viton O-ring seals the fluid level check port
  • Tapped and plugged 1/8" NPT port for optional fluid temperature monitoring sensor
  • External gussets provide extra support to the machined flange to increase overall robustness
  • Compatible with OEM gasket
  • Limited lifetime warranty
  • For more information on PPE call us at 1-859-737-4966
