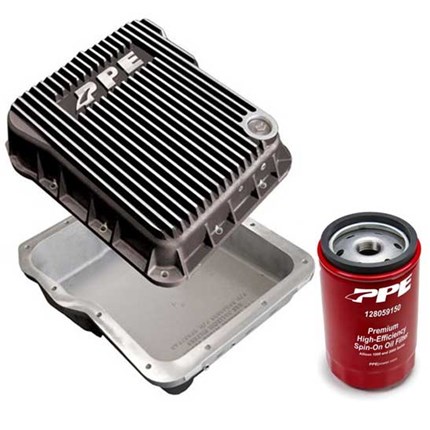

PPE Allison Low Profile Transmission Pan (Brushed) - 01-19 Allison 1000/2000/2400 Transmission With Double Deep Filter

Replace the stock stamped metal pan with one that will help keep your transmission cool and protected and not just hold fluid. Cast from high-grade aluminum alloy and holding stock capacity, it is only 5 inches deep making this pan perfect for those who like their rides lowered to the ground and still running cool. Thanks to the 3/4 inch external cooling fins, the fluid will run much cooler than the stock pan. The PPE pans are tough, too! No, you cannot use them as a skid plate, but thanks to its thick cast construction with external fins and the additional side ribbing, all PPE Transmission Pans are much stronger than the stock units. Each pan is equipped with 1/8 inch and 1/4 inch NPT threaded ports for easy installation of gauge sensors as well as one of PPE's Neodymium magnet equipped 17mm hex head drain plugs. The Neodymium magnet is an insanely strong magnet that attracts and holds harmful metal particles floating in your oil. New Stainless Steel Allen head mounting hardware is supplied. The PPE Standard Profile Aluminum Transmission Pan is perfect for hot rod or marine applications.

• NOTE: This product CAN NOT ship to California due to CARB regulations.
• 3/4 inch External cooling fins reduce oil temp
• Robust side ribs provide additional strength
• 1/8 and 1/4 inch NPT threaded ports for gauge sensors
• High strength Neodymium magnet equipped SS drain plug with re-usable Viton O-Ring
• Retains use of high quality original Allison pan gasket
• SS plugs and Allen head screws

The PPE 128059150 Double-Deep Spin-On Filter promotes more responsive and smother shifts in your Allison 1000 or 2000 Series transmission. This spin on oil filter features a filter media that catches particles that are 15 microns, which is half the size of what a standard transmission filter can catch. This filter also offers well over double (2.72 times) the surface area for more complete filtration that also improves fluid flow to allow better oiling of internal components.

PPE Double-Deep Spin-On Filter Features:

• 15 Micron Filter
• Improved Fluid Flow & Filtering
• Over 2.5 Times More Filter Surface Area
• Promotes Smoother, More Responsive Shifts
• For more information on PPE call us at 1-859-737-4966.
