South Bend Single Disc Clutch 550 hp 1100 ft. lbs. torque - 88-04 Dodge 5.9L - 13125-FEK

Thoroughbred Sku #: SBC13125-FEK
Manufacturer Sku #: 13125-FEK

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Install Sheet - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$1,188.84

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
southbend-logo-new

View More Products From

South Bend

Product Details

Product Name: South Bend Clutch
Manufacturer: South Bend Clutch
Manufacturer Part #: 13125-FEK
Thoroughbred Diesel Part #: SBC13125-FEK
Fitment Notes: South Bend Single Disc Clutch 550 hp 1100 ft. lbs. torque - 88-04 Dodge 5.9L - 13125-FEK

Clutch Fits:
1988-2004 Dodge 5.9L - Transmission: NV4500 or Getrag (5 speed)
1999-2000.5 Dodge 5.9L - Transmission: NV5600 (6speed) with 235hp Non HO engine

Need Help? Check Out Our South Bend Clutch FAQ/Trouble Shooting Section.

South Bend Clutch Performance Kit Descriptions

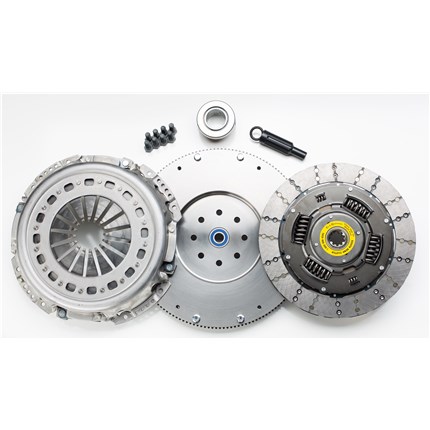

Single Disc plus Flywheel for 550 hp, 1100 ft. lbs. torque

This Dyna Max kit features a full feramic lining on a marcelled fin. The pressure plate is modified for higher plate load and smoothness of engagement. This clutch was designed to cure premature disc failure due to high horse power and heavy hauling in the 5 speed and early 6 speed non-ETH 12 1/4 clutches. South Bend has taken the 13 ETH clutch and modified it to accept the 1 1/4 input shaft. By doing this, it enable them to offer a disc center that is 2-3 times larger and stronger then can be provided in the 12 1/4 clutch kits. This kit comes with a flywheel, re-drilled and refaced to accept the larger clutch and is rated to handle up to 550 horsepower & 1100 ft. lbs. of torque. Years 1989-2005 5 speed & 6 speed non-ETH.

South Bend Clutch utilizes Cryogenic Processing to strengthen their clutch kits. Deep cryogenic treating is a one-time process that permanently and dramatically improves the performance and useful life of metals in these clutch kits.

After cryogenically treating your disc springs, clutch plate and flywheel, the material will wear less and the plate load will hold up over time. The bottom line is that YOUR CLUTCH WILL LAST LONGER!

South Bend high performance clutches are noted for smooth engagement and low pedal effort. ConO clutches feature organic facings with very smooth engagement. ConOFE clutches have an organic facing on one side and a feramic facing on the other. They have a near stock clutch engagement with very high torque ratings. ConFE clutches have full feramic facings on the disc. FE clutches are a little abrupt on engagement, but still much smoother than competitive ceramic clutches.


Key Benefits:
  • Less voids or imperfections in the metallic grain structure
  • Significantly less micro cracks
  • Significantly less warping caused by heat
  • Better friction coefficient
  • Increased microstructure surface area
  • Increased wear resistance
  • Increase wear consistency
  • Relief of internal residual stress
  • Springs will maintain compression longer

Reviews

Submit a question

  • What size clutch plate is it

    Ronald Stewart | 10/8/2020

    What is your yr, make, and model?

  • Why Might My Clutch Slip If I Try To Accelerate In Overdrive?

    Eric Schumann | 5/16/2019

    Too much torque at too low an RPM. I go back to the automatic. If you were driving down the road in automatic overdrive, with the cruise control on, and approached a hill, the system (in order to keep a constant speed) would need to accelerate. The transmission would automatically downshift in order to do so. By keeping the RPM up while accelerating, it is preserving its life. There is a misconception about fuel consumption. People believe that the lower the RPM, the better the mileage, when actually, the opposite is true. All that black smoke you get when you step on it in overdrive is unburned (and therefore wasted) fuel. Keep the RPM up by downshifting into the right gear, and your truck will run much better.

  • Is It Wrong To Tow In Overdrive?

    Eric Schumann | 5/16/2019

    This is a very good question, because most people do just that. The trouble is, it is too hard, with all the variations in terrain, to keep a constant speed. Therefore, you end up accelerating too much in that high gear. Many trucks, with automatic transmissions, set up for towing, will include a button for "tow mode" which locks the transmission out of overdrive. The main reason for that is, the transmission would be constantly downshifting. The best answer is to say; watch your RPM, if it starts to drop too low, rather than stepping down on it in 6th, drop to 5th ...and maybe stay there.
