Beans Diesel-Bean Machine Multi Function Fuel Tank Sump Kit

Thoroughbred Sku #: BDP280003
Manufacturer Sku #: 280003


Quick Ship

$207.89

free-shipping-no-handling

Product Details

Product Name: Beans Diesel-Bean Machine Multi Function Fuel Tank Sump Kit
Manufacturer: Beans Diesel
Manufacture Part #: 280003
Thoroughbred Diesel Part #: BDP280003
Fitment Notes: Universal

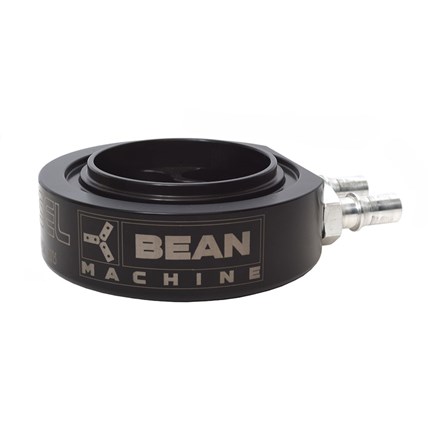

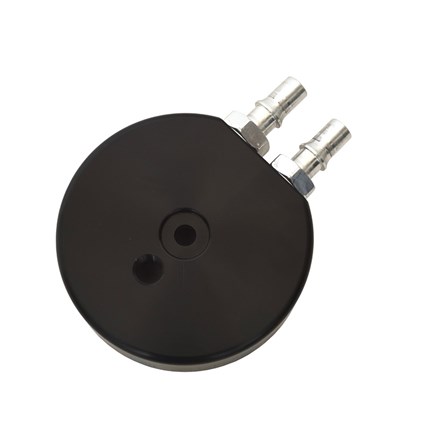

New and improved design! The Beans Diesel/Bean Machine Multi Function Sump Kit

What we have done at Beans Diesel/Bean Machine is step up the tank sump another notch. Made from 6061 Billet aluminum, this guy is built like a tank and is super simple to install. Just like our original and revolutionary design, install is as easy as it gets, requiring a single 3" hole and a single bolt. This means super easy and quick install time as well as minimal places to develop a leak.

All of Beans Diesel tank sumps come with a 3" hole saw and all the fittings you will need, (so no extra trips to the hardware store), as well as all stainless or aluminum hardware. The single O-ring design creates the perfect seal insuring you have zero leaks. Beans Diesel manufacture the only tank sump on the market that uses O-ring Boss style fittings instead of a pipe thread style fitting. This means less possibility for leaks and a perfect seal. Beans Diesel fittings can be used with a quick disconnect fitting (found on many aftermarket fuel systems) or 1/2" push-lock style fuel hose. That means it is going to be plug and play for the largest percentage of aftermarket fuel systems out there! We even include a plug if you only need a single outlet style sump.

Beans Diesel are not the only sump manufacture on the market, but if you do purchase a Beans sump, you will be purchasing a 100% USA manufactured product from the company that invented the single hole design sump!

Note: For fuel systems with 1/2" supply and return lines.

Functions:

  • Supply/Return
  • Single outlet setup
  • For your higher horse power trucks, dual outlet to get the extra fuel needed.

Features:

  • Uses all available fuel from the tank. No issues with sucking air when below 1/8th of a tank. Perfect for use with today's high flow lift pump systems. (Airdog, FASS, etc)
  • Sediment bowl area machined inside of the sump to reduce the amount of sediments that get to your filter system.
  • Stainless Drain Plug for future tank servicing or sediment draining.
  • Single bolt design that allows for 5 minute install. A single bolt offers less chances for leaks than tanks sumps using multiple bolts drilled into the tank.
  • Stainless Steel hardware, High Flow aluminum Quick Disconnect/pushlock fittings, and a -8 ORB Plug are provided in the kit.
  • Comes with 3” hole saw to make the only hole needed in your tank for install.
  • Inner ring designed to go through the 3” hole so tank does not need to be dropped.
  • O-ring design for a perfect seal.
  • Super strong 1 piece machined billet design.
  • Can be installed on any fuel tank with an available 4” diameter flat area
  • Supporting the Company that Invented the Single Hole Design Sump!
  • DESIGNED AND MANUFACTURED AT OUR FACILITY, IN WOODBURY,TN USA!!!

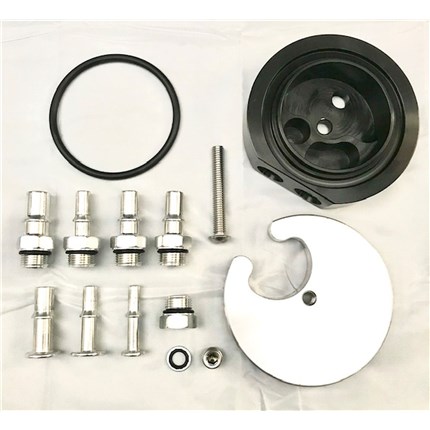

Kit Includes:

  • Sump Body
  • Sump "Pacman" in Tank Backer Ring
  • 3" Hole Saw (Plastic Tank Only. If Installing On Metal Tank You Will Need To Purchase A Metal Hole Saw)
  • Stainless Steel Bolt
  • Sealing Washer
  • O-Ring

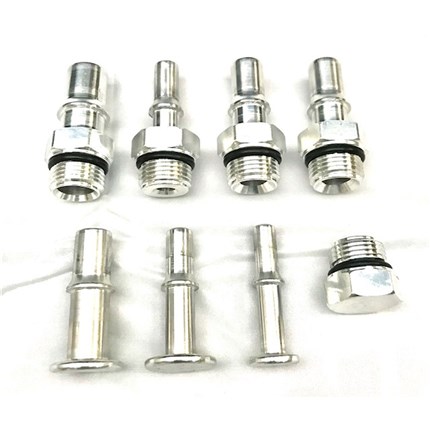

  • (2) -8 O-Ring Boss (ORB) to 1/2" QDC/Push-lock Fittings
  • (1) -8 O-Ring Boss (ORB) 1/2" Plug For Single Outlet Operation
  • (1) -8 O-Ring Boss (ORB) to 5/8" QDC/Push-lock Fitting
  • (1) -8 O-Ring Boss (ORB) to 3/8" QDC/Push-lock Fitting
  • (1) 5/16' Plug
  • (1) 3/8" Plug
  • (1) 1/2" Plug
  • (3) O-Rings For the Fittings
  • 1/4" NPT Stainless Steel Drain Plug Fitting
Note: that this particular sump has the correct fitting to work with these FASS parts
FAD10125G FASD08290G FAC09220G TSF14140G
FASD10140G FAF17125G FASC09250G TSF18220G
FAD10220G FASF17140G FAC09260G TSF18240G
FASD10240G FAF15125G FASC09290G TSF17220G
FAD10240G FASF15140G TSD10140G TSF17240G
FASD10260G FAF17200G TSD12250G TSF16250G
FAD05220G FASF17220G TSD12290G TSF16290G
FASD05250G FAF17220G TSD07250G TSF14220G
FAD05260G FASF17240G TSD07290G TSF14240G
FASD05290G FAF16220G TSD08250G TSC13140G
FAD07220G FASF16250G TSD08290G TSC13220G
FASD07250G FAF16260G TSD10240G TSC13240G
FAD07260G FASF16290G TSD10260G TSC10250G
FASD07290G FAF15200G TSD11110G TSC10290G
FAD08220G FASF15220G TSF19110G TSN16110G
FASD08250G FAF15220G TSF18140G
FAD08260G FASF15240G TSF17140G

If you are looking to install a FASS fuel system, Air Dog fuel pump, or any other aftermarket fuel system, you will find through your research that many past and present customers are complaining of noise and quarter tank issues.

Let's cover the quarter tank issue first. These quarter tank problems are caused by the draw straw often supplied with these kits. A draw straw is a tube that is fed through the top of the fuel tank that attaches to the suction line going to your aftermarket fuel system. The draw straw is located wherever you drill the hole, but the only available spots to drill into your factory diesel fuel tank are flexible spots. So as you drive, the fuel tank is flexing. When you go around a sharp corner with a quarter tank of fuel, the draw straw can swing away from where gravity takes the fuel. This causes the fuel system to suck in air and acts like your truck is running out of fuel. The truck will die, but once you pull over and the fuel settles, the truck will start again. It's not only annoying, but also dangerous because your power steering stops working when the engine shuts down, brakes also become sketchy. Noise is another common complaint associated with aftermarket fuel systems.

What causes the fuel pump to make so much noise? Strain, the harder the pump has to work, the more noise it is going to make. When the fuel system is trying to suck fuel vertically through a draw straw it's going to cause that fuel pump to work harder. Therefore, more noise is going to be the result. Some of these aftermarket diesel lift pumps utilize the factory draw straw which is very small in diameter. If the fuel system you have purchased is running 1/2" or 5/8" and the factory draw straw is only 5/16" then you have a massive restriction in the fuel flow. This is always going to cause the fuel pump to run harder and louder.

The Beans Diesel Bean Machine Fuel Sump is designed to fix all of these issues. By pulling fuel from the bottom of the tank rather than the top, you are taking a lot of strain off the fuel pump, allowing it to operate much quieter and you will never have to worry about quarter tank issues again! Another added bonus to the Beans Diesel Bean Machine fuel sump, is the simple fact that you no longer need to drop the fuel tank to install your aftermarket fuel system. You simply drill a hole in the bottom of the tank, clean out any shavings and install the sump. Minimal tools are required and it shaves about 3 hours off your install time.

If you have read on the forums that these sumps can get knocked off or pulled from the tank, we assure you, no parts manufactured by Beans Diesel Bean Machine are released without rigorous testing first. We sent a handful of these sumps to customers all over the country in different climates to make sure our installation was simple and to ensure our product can stand up to their rugged life styles. If the hard working loggers in the Rocky Mountains of the Northwest can hammer up and down gruesome dirt roads day in and day out with our sumps installed, then we are pretty sure you aren't going to knock our sump off driving to and from work each day. Desert racing you say, we've put our sumps through that too. Imagine a 7,000 pound diesel truck sailing off the top of a sand dune and crashing down in the rocks and sage brush cruising at a cool 90 miles per hour. We have seen these fuel sumps so destroyed they are barely recognizable.... still no leaks. Don't be fooled by keyboard ninjas. We assure you our diesel fuel sump is up to the task. Whatever you can throw at it, it will do the job it was intended as long as you follow our step by step instructions and take care when centering the hole in the preformed hub in the bottom of your tank.


Reviews

  • Can I get rid of the factory fuel pump if I run a sump and fass lift pump

    Elhannan | 10/30/2021

    Yes.

  • Whats the gpm flow rate on this single outlet port??

    Andrew | 2/15/2021

    That would vary with the lift pump you have installed.
