KC Upgraded Low Pressure Turbo 75mm - 6.4L Powerstroke

Product Name: KC Upgraded Low Pressure Turbo 75mm - 6.4L Powerstroke
Manufacturer: KC Turbos
Manufacturer Part #: 302082
Thoroughbred Diesel Part #: KCT302082
Fitment Notes: 2008-2010 Ford Powerstroke 6.4L

This is the biggest and baddest drop in Low Pressure 6.4 turbo on the market.  We spent years testing, modifying and trying all the different options currently out there and then we blew them out of the water.  This is the ONLY turbo on the market with a 4" larger inlet with ported anti-surge cover, larger 360 thrust bearing, and larger s400 turbine wheel.  This allows for more power, quicker spool, and less EBP than anything else on the market.  Our drop in low pressure turbo all by itself has outperformed every other 59/75 set we have tested.

How much power you make will greatly depend on your injector size and if you can hold rail pressure.  Stock pumps don't always hold rail pressure at higher, so if you are dropping rail we recommend upgrade your HPFP or going with twin pumps.

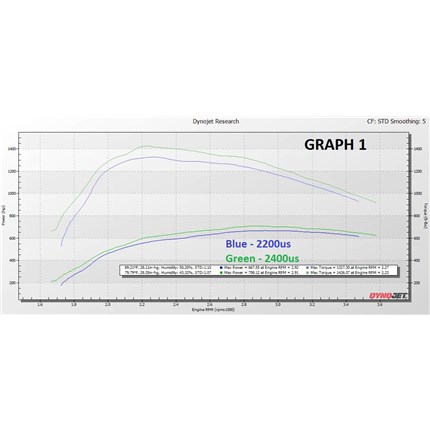

Stock injectors: GRAPH 1
2200us - 667hp 1327tq BLUE LINES
2400us - 708hp 1426tq GREEN LINES

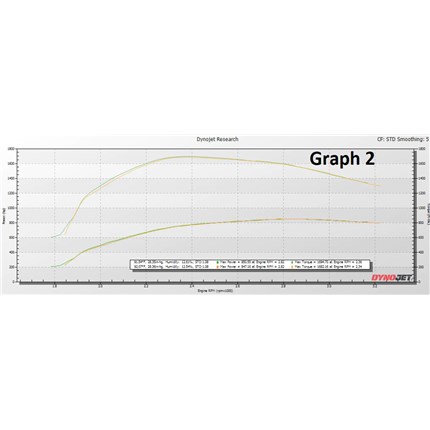

30% nozzles: GRAPH 2
2150us - 850hp 1694tq

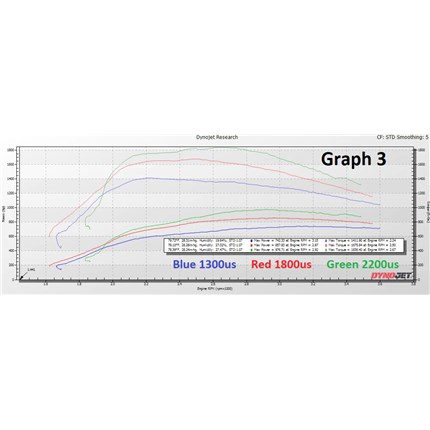

100% nozzles: GRAPH 3
1300us: 742hp 1411tq  BLUE LINES
1800us: 857hp 1675tq RED LINES
2200us: 946hp 1787tq GREEN LINES

KC Upgraded Low Pressure Turbo Features:

• 75mm Billet Compressor wheel
• 80mm s400 turbine wheel
• Larger 4" inlet
• Ported anti-surge compressor cover
• Larger upgraded 360 thrust bearing on the market
• Drop in turbo (no modification except air filter
• REQUIRES 4" inlet air filter upgrade
• DOES NOT REQUIRE upgrades to the high pressure turbo
• NO CORE REQUIRED
• For more information on KC Turbos call us at 1-859-737-4966
