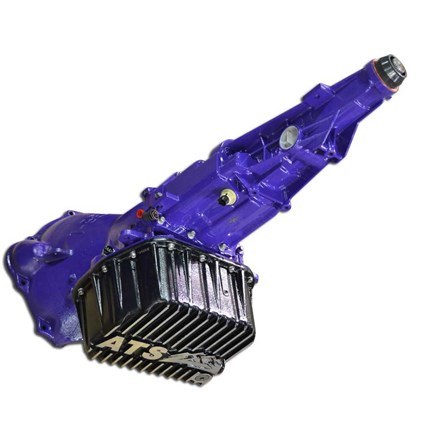

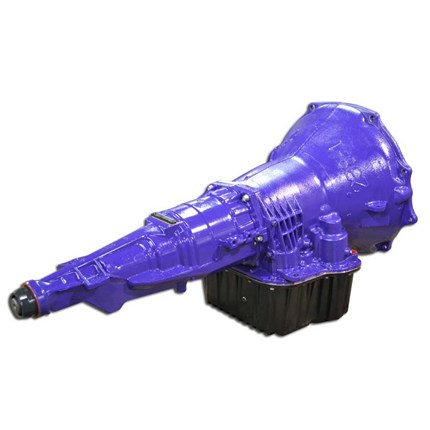

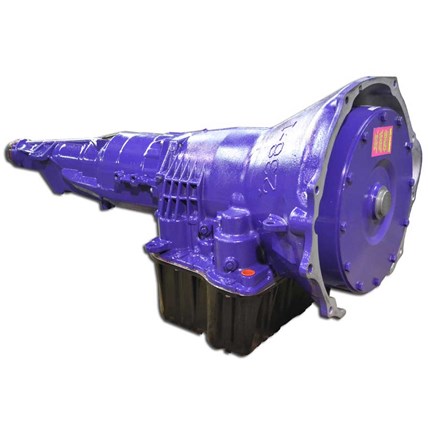

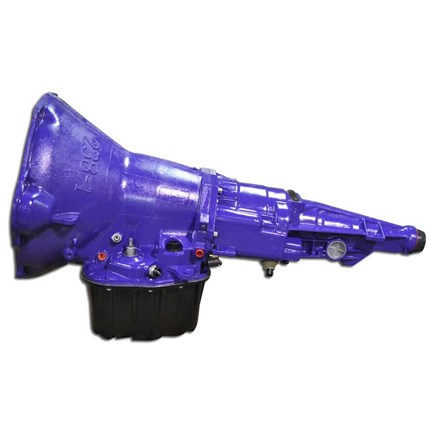

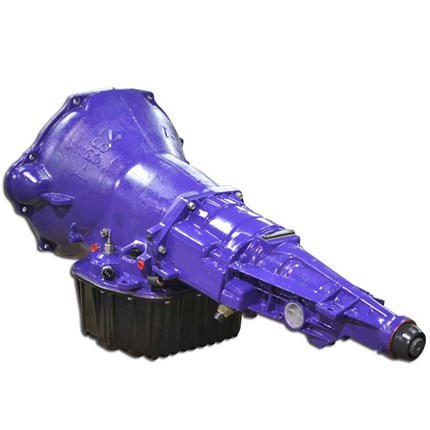

ATS 47RE Stage 1 Transmission Package - 98.5-Early 1999 Dodge 2WD - 3099122218

Thoroughbred Sku #: ATS3099122218-CRE

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$4,643.63 On Sale! $4,491.23

+ $700.00 Shipping

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name:ATS Transmission Packages
Manufacturer:ATS Diesel Performance
Manufacture Part #:3099122218
Thoroughbred Diesel Part #: ATS3099122218

The 47RE features steel planets as well as an electronic governor pressure solenoid and transducer. In re-designing the 47RE, ATS addressed inherent weaknesses to produce a strong, reliable transmission for towing, daily driving or racing. The result is a transmission

Featuring:

  • Five Star billet torque converter
  • Performance transmission pump
  • Modified high performance clutch packs/bands and steels
  • Valve body built around reliability and increased transmission life

The modification process began with the torque converter. Instead of a stamped converter with a single lock-up clutch, the ATS Stage 1 47RE comes with our patented Five-Star torque converter. Utilizing a billet 12 bolt cover, five square tab lock-up clutches, a billet stator and other modifications, this converter is designed for heavy loads, years of reliability and brute power.

The goal is to efficiently transfer your 12 or 24V Cummins power through the converter into the transmission. In order to handle the increased efficiency of the converter, we addressed the 47RE from bellhousing to tailshaft. The transmission's pump is modified to progressive raise line pressure, above the factory settings, to provide clamping force to the clutch packs. High-performance clutch packs are then added.

Pressure plates are precisely machined to add 1 more forward and 1 more direct clutch. High performance bands, billet band strut, billet accumulator piston, and heavy Duty overdrive bearings strengthen the clutch pack/band assembly. Next is the valve body. Dodge 47RE transmissions can be plagued by sticking throttle valve issues. The valve controls shift timing and fluid flow to the clutch packs. When the valve sticks, there can be a no up-shift condition.In time, this can wear on the clutch packs and internals to hasten the transmission's life.

ATS machines the bore to accept a Teflon sleeve, this ensures precise movement and control of the valve. In addition, the valve body is modified to circulate fluid in park, reverse and neutral, capable of locking the torque converter in any forward gear, and raising line pressure vs. stock. The Stage 1 (as well as all ATS Transmission Packages) comes standard with the ATS Deep Pan. Featuring a finned design to dissipate heat, and adding five quarts of fluid vs. stock, the pan helps keep the transmission running cool.

The ATS 47RE Stage 1 is designed for trucks with stock to mild power increases, light towing and daily driving. For moderate to extreme power applications, heavy towing or competition use, call ATS to discuss which transmission package would fit your application.

Features

  • Stage 1 Package 1998.5 - Early 1999 Dodge 2WD 47R
  • Engine Manufacturer: Cummins
  • Make: Dodge Diesel
  • Models: 2500/3500
  • Fuel Type: Diesel
  • Drive: 2WD
  • Transmission Model: 47RH
  • Warranty: 5 year/500,000 mile warranty
  • Sold As: Kit

ATS 47RE Package Stage Compariso

  Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6
Horsepower Rating 400 500 600 700 800 1000
ATS 47RE Transmission
5-Star Torque Converter
Deep Pan Trans Pan
Billet Input Shaft
Co-Pilot Controller
Billet Flex Plate
Billet Intermediate Shaft
Billet Output Shaft

Reviews

  • How much driveline work on a 2017 ram 2500 mega cab. I am assuming both shafts need adjustments? I

    Mike | 12/22/2021

    No driveline adjustments required.
