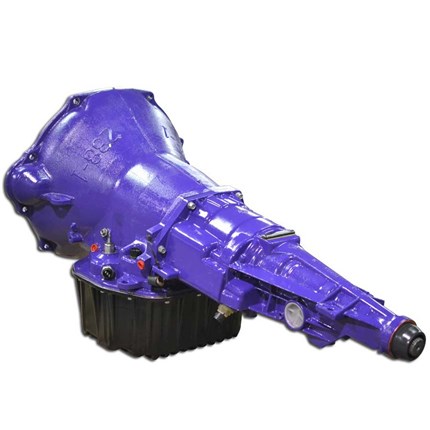

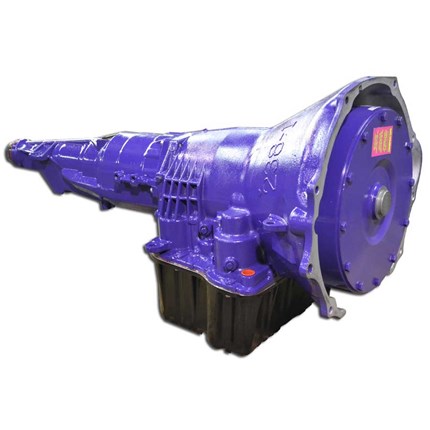

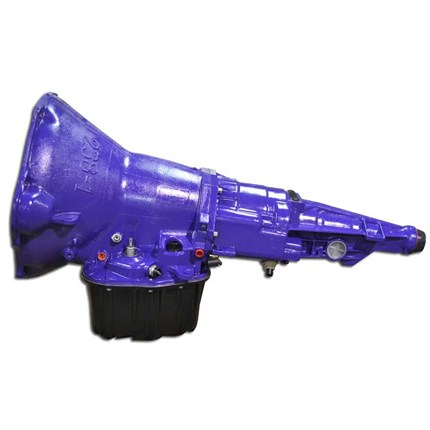

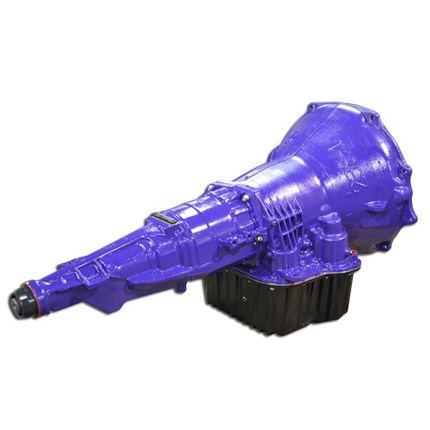

ATS 47RH Stage 4 Transmission Package - 94-95 Dodge 2WD - 3099422164

Thoroughbred Sku #: ATS3099422164-CRE

Item Options:

Prop 65:

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

$6,521.38 On Sale! $6,294.89

+ $700.00 Shipping

* Core Exchange Option:

Terms & Conditions for Cores

Many stock replacement parts such as turbos, injectors, injection pumps, and high pressure oil pumps have a core charge that is associated with the new replacement part. You must return the old part to receive a refund on the core charge.

In some cases, the core is not reusable, such as in the event of a cracked case, at which point the core deposit would not be credited as the core component is not reusable.
Cores that have been disassembled and/or have missing and/or damaged major components will not receive full core credit.
Returned cores must be on a "like-for-like" basis, meaning that the returned core has the exact same fitment as the remanufactured component that was purchased. If the core is not "like-for-like," your core may not be eligible for return/credit.
You are responsible for core return shipping cost.

If you plan on returning your core you have two options.

Thoroughbred Diesel offers defer the upfront core charge when purchasing via credit card payment.

OPTION 1: You can accept the core charge, which means you will be charged for the part AND the core at time of purchase. You still have the option to send it back, and if you do, the core will be refunded back on the card used, presuming the core meets core criteria and the core is returned within 30 days from the time your order is received. If you return your core after 30 days you may refer to the Core Charge Timeline below as to how you will be refunded.

Core Charge Timeline

If the core is returned after 30 days, 90% of the core will be refunded.
If the core is returned after 60 days, 70% of the core will be refunded.
If the core is returned after 90 days, 50% of the core will be refunded.
After 6 months cores will be accepted at Thoroughbred’s discretion.

OPTION 2: You can defer the core charge. If you defer, you will not be charged for the core at the time of purchase. You will have 21 days from the time your order is received to send the core back. If the core is not received within the 21 days, your credit card will be charged for the core amount on your order. If you return your core after 21 days, you may refer to the Core Charge Timeline below as to how you will be refunded. When Core deferral (Pay Core Charge Later) is limited to payment by credit card only. ***When using PayPal or Affirm as your method of payment “Core Deferral (Pay Core Charge Later)” is not available. The core must be paid at time of purchase. ***

Core Charge Timeline

If the core is returned after 21 days, 90% of the core will be refunded.
If the core is returned after 60 days, 70% of the core will be refunded.
If the core is returned after 90 days, 50% of the core will be refunded.
After 6 months cores will be accepted at Thoroughbred’s discretion.

Core Return Procedure

Please keep all original packaging of your new item to be used for the core return.
Drain all fluids: oil, fuel, etc. out of the core before it is returned.
Place any plastic plugs or caps received on the new item back onto the core.
To insure UPS, Fed Ex, or USPS will not reject the package due to fuel or oil leakage, please wrap the core in a plastic garbage bag.
Place core inside the box.
If core return paperwork was inside the box, please complete the form and send back with the core.
Please provide a tracking number to [email protected]. Without a confirmed tracking number we cannot guarantee your core refund
If you have questions please call our core department 859-737-4966 ext. 5

I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

QTY:

Product Details
Youtube Videos
Reviews
Questions & Answers

Product Details

Product Name:ATS Transmission Packages
Manufacturer:ATS Diesel Performance
Manufacture Part #:3099422164
Thoroughbred Diesel Part #: ATS3099422164

47RH Stage 3 Package, 1994-95 Dodge 2WD. In re-designing the 47RH, ATS addressed inherent weaknesses to produce a strong, reliable transmission for towing, daily driving or racing.

The result is a transmission featuring✔

Five Star billet torque converter
Performance transmission pump
Modified high performance clutch packs/bands and steels
Valve body built around reliability and increased transmission life
ATS billet 300M input shaft and forward hub
ATS Co-Pilot Lockup Controller
Deep pan for added cooling and convenience
5 year/500,000 mile warranty

The modification process began with the torque converter. Instead of a stamped converter with a single lock-up clutch, the ATS Stage 3 47RH comes with our patented Five-Star torque converter. Utilizing a billet 12 bolt cover, five square tab lock-up clutches, a billet stator and other modifications, this converter is designed for heavy loads, years of reliability and brute power.

The goal is to efficiently transfer your 12Vs power through the converter into the transmission.
In order to handle the increased efficiency of the converter, we addressed the 47RH from bellhousing to tailshaft. The transmissions pump is modified to progressively raise line pressure, above the factory settings, to provide clamping force to the clutch packs.

High-performance clutch packs are then added. Pressure plates are precisely machined to add 1 more forward and 1 more direct clutch. High performance bands, billet band strut, billet accumulator piston, and heavy Duty overdrive bearings strengthen the clutch pack/band assembly.

Next is the valve body. Dodge 47RH transmissions can be plagued by sticking throttle valve issues. The valve controls shift timing and fluid flow to the clutch packs. When the valve sticks, there can be a no up-shift condition. In time, this can wear on the clutch packs and internals to hasten the transmissions life. ATS machines the bore to accept a Teflon sleeve, this ensures precise movement and control of the valve. In addition, the valve body is modified to circulate fluid in park, reverse and neutral, capable of locking the torque converter in any forward gear, and raising line pressure vs. stock.

On the Stage 3 build, ATS adds a billet 300m input shaft and forward hub. Featuring a two-piece design, the input shaft is designed to withstand greater than stock power, torque converter lock-up sooner than stock, increased towing weight and racing applications. The increased capacity comes from the material itself, which is stronger than the factory input shaft. This is coupled with a precisely engineered shaft, directed at absorbing torsional loads from increased power, and transferring it into the transmission.

The Stage 3 (as well as all ATS Transmission Packages) comes standard with the ATS Deep Pan. Featuring a finned design to dissipate heat, and adding five quarts of fluid vs. stock, the pan helps keep the transmission running cool. The ATS 47RH Stage 3 is designed for trucks with stock to moderate power increases, light and heavy towing and daily driving.

In addition, we include the ATS Commander Lock-Up Controller on this package. This controller allows the user to base lock-up on vehicle speed. Torque converter lock-up can be moved to 1st, 2nd, 3rd gear or overdrive and can be changed at any time. Our controller features in-cab adjustability, so settings can be changed with the push of a button. Every time the vehicle reaches the set speed, the converter locks. The benefit of early lock-up is reduced transmission temperatures, quicker acceleration and better fuel economy.

The ATS Commander Lock-Up Controller will also synchronize lock-up with an exhaust brake, for additional braking force.
For moderate to extreme power applications, heavy towing or competition use, call ATS to discuss which transmission package would fit your application.
Application✔

1994-1995 2500/3500 Cummins Dodge Diesel
3 Package 2WD

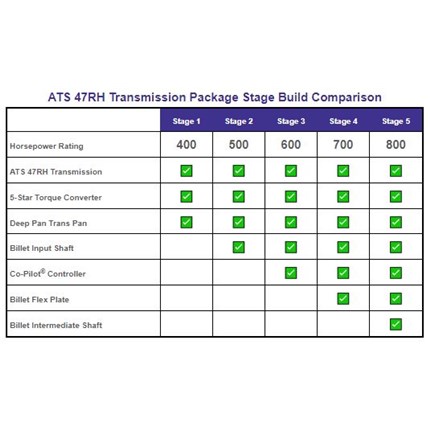

ATS 47RH Transmission Package Stage Build Compariso

	Stage 1	Stage 2	Stage 3	Stage 4	Stage 5
Horsepower Rating	400	500	600	700	800
ATS 47RH Transmission	✔	✔	✔	✔	✔
5-Star Torque Converter	✔	✔	✔	✔	✔
Deep Pan Trans Pan	✔	✔	✔	✔	✔
Billet Input Shaft		✔	✔	✔	✔
Co-Pilot^Â® Controller			✔	✔	✔
Billet Flex Plate				✔	✔
Billet Intermediate Shaft					✔

Reviews

Submit a question

How much driveline work on a 2017 ram 2500 mega cab. I am assuming both shafts need adjustments? I

Mike | 12/22/2021
No driveline adjustments required.
