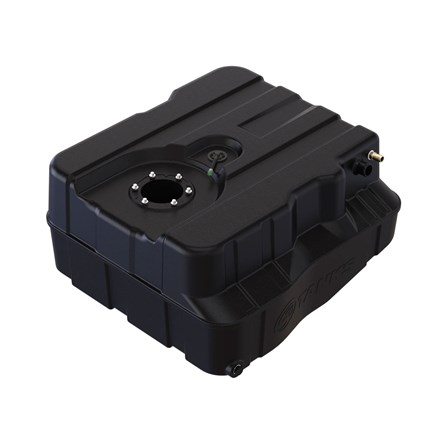

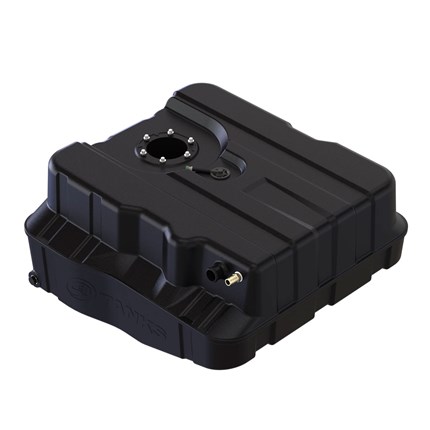

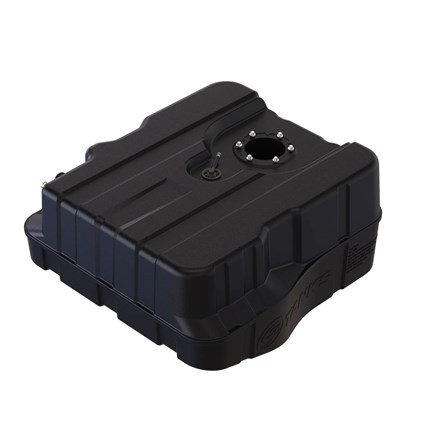

S&B Tanks 40 Gallon Replacement Fuel Tank After Axle For 2000-2010 Ford Powerstroke 7.3L 6.0L 6.4L Cab Chassis

Product Name:S&B Tanks 40 Gallon Replacement Fuel Tank After Axle For 2000-2010 Ford Powerstroke 7.3L 6.0L 6.4L Cab Chassis
Manufacturer: S&B Tanks
Manufacturer Part #: 10-1002-1
Thoroughbred Diesel Part #: SBT10-1002-1
Fitment Notes: 2000-2010 Ford Powerstroke 7.3L 6.0L 6.4L Cab Chassis

Important Note: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically. Skid plates and straps are NOT included. These parts are reused.

THE PROBLEM

The 2000-2010 Ford F350, F450 & F550 Cab and Chassis trucks are equipped with an after-axle 40 gallon fuel tank. These OEM tanks have a failure prone coating inside the tank. Once the coating becomes unstable inside the tank, the laminate peels off and gets picked up into the fuel system. If not addressed, the containments can ruin the entire fuel system on the truck.

THE SOLUTION

S&B Tanks are made out of Crosslink Polyethylene. This material will not delaminate and is the SOLUTION to fixing issues with tank delamination. If you truck is not showings signs of delamination, this tank is a great way to protect fuel system

OEM STYLE LOCKING RING

Easily secure your OEM sending unit into the S&B tank by transferring over your original Ford locking ring. This is a faster and easier way to put secure the sending unit into the S&B Tank.

S&B Fuel Tank Features:

• Crosslink Polyethylene Construction
• Direct Replacement For The Stock Fuel Tank
• No Cutting Or Drilling Required For Installation
• For more information on S&B Tanks call us at 1-859-737-4966

Specs

• Compatible with gooseneck and 5th wheel Yes
• Compatible with oe skid plate Yes
• Dimensions 31.84" X 31.77" X 14.94"
• Drain Yes
• Embedded fitting thread size 1/2" NPT
• Ground clearance compare to oe tank Same
• Sending unit OE
• Straps included No
• Sump No
• S&B Capacity (Approximate) 40 gallons
• Tank type AFT
• Transfer pump ready No
• Weight dry 28lbs
