Stainless Diesel -4 Turbo Oil Feed Line

Product Name: Stainless Diesel -4 Turbo Oil Feed Line
Manufacturer: Stainless Diesel
Manufacturer Part #: 4SOFL
Thoroughbred Diesel Part #: SLD4SOFL
Fitment Notes: Universal

Complete with all inlet/ outlet fittings

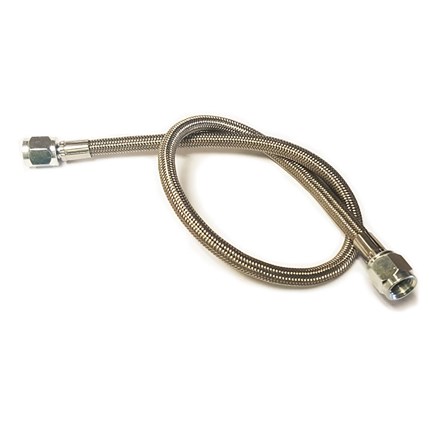

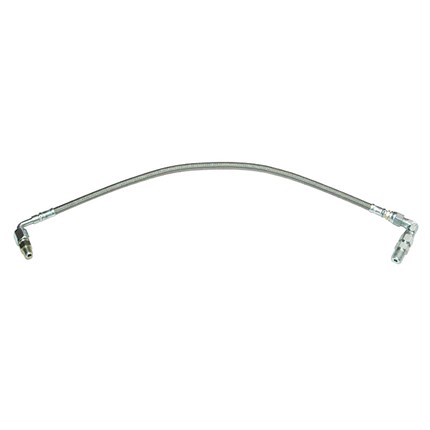

• Dash 4 High Pressure braided steel line (19.25" length for line only)

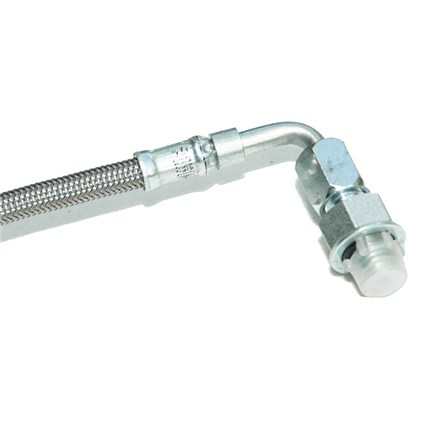

• 2 - 90* fittings

• 2 - M12 Oring fittings
• 1 - 1/4" NPT fitting
• 1 - 1/8" NPT fitting


Line configurations you can make from the line & fittings included with this kit:

2G Single Turbo Line: (this line would replace stock line)

• ONE END - comes with -4 JIC to m12 to a male -4 JIC.
• OTHER END - -4 JIC to M12 O-ringed fitting.
• This line has 90-degree bend on one end & straight on the other end.

3G Single Turbo Line:

• ONE END - has M12 O-ringed to -4 JIC.
• OTHER END - has a -4 JIC to M12 o-ringed British standard thread.
• This line comes 90 degrees on both ends.

S400 Turbo Fitting Option:  Exchanges one of the M12 O-ringed fittings to -4 JIC fittings for a 1/4" NPT to -4 JIC fitting.

*M12 Fitting is the correct fitting for Holset Turbo

TWIN TURBO / PRIMARY TURBO OIL FEED LINE (S400):  This line is -4 JIC.  It has a removable 90* fitting at both ends.

*Comes with 1/4" NPT to -4 JIC  (turbo side)

*The other end comes with -4 JIC to 1/8" NPT (top of oil filter head)
