Hot Seller
revmax-68rfe-300a-1
RevMax

RevMax ZeroFlex 68RFE Billet Towing/HD Valve Body - 11-18 Cummins (Grey Plug Style)

Thoroughbred Sku #: REV68RFE-301A-CRE


PAYMENT NOTE: If you choose Pay Core Later, from the Core option below, you will not be able to pay for this order using Affirm or PayPal
Quick Ship

$1,299.00

free-shipping-no-handling

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT
Add a BD Transmission Filter Service Kit?


Add a OEM Solenoid Pack Assembly?


Add a RevMax Transmission Pan?

Product Details

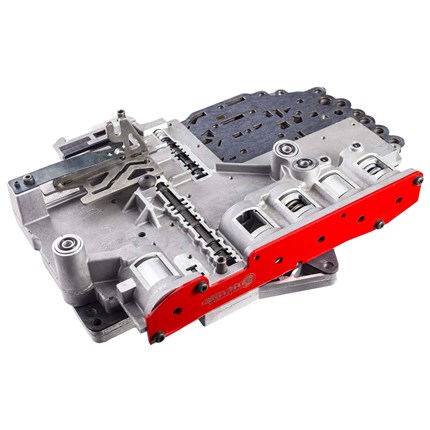

Product Name: RevMax ZeroFlex 68RFE Billet High Performance Towing/HD Valve Body - 2011-2018 Dodge Cummins for grey plug solenoid pack
Manufacturer: RevMax
Manufacturer Part #: 68RFE-301A
Thoroughbred Diesel Part #: REV68RFE-301A
Fitment Notes: 2011-2018 Dodge Cummins

Are you having transmission valve body issues or just looking to upgrade your valve body? Well, you have come to the right place! RevMax is the industry leader in high-performance diesel transmission valve bodies. There are a lot of other competitors out there offering valve bodies and sometimes it may seem hard to differentiate what’s what and why ours may be a little bit more expensive than some, but there are a lot of reasons.

RevMax has been offering high-quality computer dyno tested valve bodies for over a decade. All of our technicians have undergone extensive training and are the best in the industry. Unlike our competitors, we do not do any reaming or valve oversizing by hand. Each and every valve body we rebuild is machined on our state of the art Haas CNC milling machines, just like the factory did when they made the valve body originally. These CNC machines cost over $100k each! By the use of these machines, we eliminate human error that is very common when valve bodies are machined by hand. The precise alignment of the reamer to the bore is nearly impossible to get perfect by hand and this is where our CNC machines thrive. We use a Rennishaw probe to dial in each valve body to the reamer prior to the valve being cut. This allows us to be within .0005” within the original centerline of the bore. Hand reaming is lucky to keep .002” tolerances. Being off by just .001” can cause valves to stick and sideload and ultimately lead to complete transmission failure.

Each RevMax valve body has a predetermined protocol that is followed for each valve body type. This protocol ensures that the customer gets the highest quality product each and every time. We do not just go thru and replace what is bad on each specific valve body, instead, a standard protocol is followed that replaces all known failure prone parts, even if they are still in good working order. In addition, we then check over the entire valve body to make sure that non-problematic areas are in good working order and if not, we repair these areas as well.

RevMax has proprietary technology and workflow processes that make our product superior to the competition. We also have the industries best testing equipment. To start, we vacuum leak test each and every valve body after cleaning. Finally, each valve body is dyno tested on one of our fully computerized valve body dyno machines. The results are compared against a brand new valve body and the data is then stored and available to be viewed by the customer if requested.

Many years back we (circa 2014) RevMax began using billet valve bodies in their 68RFE 1000 series transmissions. These units featured on demand lockup and the rigidity of a billet channel casting. These were offered for a short time by us but the market was not yet open to paying for what was thought to be an unneeded and expensive item. We stopped selling this an option in 2015 and mothballed the project.

Our initial 1” solid version was a game changer. It gave the market what they asked for, a perfectly flat, rigid and smooth surface finish. As great as it was, it did have a drawback, as it could not be used with some aftermarket pans or with any stock pans. Customers have commented that they wanted a new design channel plate that incorporated all of the initial designs’ features yet allowed it to be used with a stock pan or with any aftermarket pan. After nearly 8 months and 6 revisions we now have the V2.0 available!

Our V2.0 still is 1” thick but this new version has precision cutouts that allow the use of a stock filter and pan. Unlike other designs, we still have full depth worm tracks in crucial circuits. The other designs we have seen have only a .190” deep worm track in several critical circuits. One restricted circuit is the combined vent track. This track is responsible for all venting operations and in particular the problematic SSV valve. The next restricted circuit is the torque converter clutch signal circuit. Restrictions in this circuit creates all kinds of torque converter related concerns including; dragging when coming to a stop, overheating, soft or harsh TCC apply or release and back feed issues resulting in P1776 and P0871 trouble codes. Both our original and V2.0 have nearly full depth worm tracks in these areas which eliminate these issues!

Our V2.0 plate will work with ANY aftermarket transmission pan as well as with stock transmission pans. There is no need to alter any part of the pan or use and special filters. Just install it like you would a stock channel plate and go!

RevMax ZeroFlex 68RFE Billet High Performance Towing/HD Valve Body Features:

  • 6061 billet aluminum construction
  • Deep critical worm tracks
  • .0003 flatness across the entire plate. The only truly flat billet channel plate!
  • Micro polished worm track surface. There are no visible or perceptible machining marks or stepovers. This ensures no chance of any leaking due to machining marks.
  • Large Radius machining on the filter cutout increases rigidity yet allows the use of a stock filter assembly.
  • Angle milled step downs increase rigidity in problematic flexing areas.
  • Ability to run up to 325psi of line pressure without any warpage! (transmission tuning, TCM upgrade or pressure box is needed) No pump modifications required for up to 250psi!
  • Proprietary worm track layout
  • Shortened Shift Times for crisp, clean shifts
  • Upgraded valve body to case seals
  • Billet Steel SSV Solenoid Switch Valve and End Plugs
  • Revmax Triple Double 3/2 Billet Accumulator Pistons with Dual Seals
  • Upgraded grade 8 custom fasteners
  • Upgraded Steel accumulator housing plate that is 3x thicker than stock
  • RevMax proprietary accumulator springs for improved 3-4 shift feel
  • RevMax proprietary separator plate with the bonded gasket that eliminates cross leaks and warpage issues
  • Revmax proprietary upgrades
  • Hand assembled in Charlotte, NC by Qualified and Caring Professionals!!
  • Mounting Surface Verified and Flat Filed
  • Threads Checked and Repaired if Needed
  • Computerized testing on our state of the art $125k valve body test machines
  • Ability to run up to 325psi of line pressure without any warpage! (transmission tuning, TCM upgrade or pressure box is needed) No pump modifications required for up to 250psi!
  • Be sure to add a RevMax Cooler Thermostatic Bypass Upgrade on 13-18 Dodges to help prevent your truck running hot. Click Here
  • For more information on RevMax call us at 1-859-737-4966

Reviews

  • If this valve body is installed on untuned truck you put a plug in the plate for that.. Do you need to do a tran relearn or not.. I was reading info on an different unit where you do not have to do relearn just drive easy in town for 100 or so miles and tran wil relearn on it own.. ALso on solenoid at what mileage should they be replace when doing this valve body. say you have good shifting truck with 75K miles?? thanks

    carl | 1/17/2024

    You will need to go through the re-learn process.

  • If I put this product on my 2012 ram 2500 and I have an HS minimax programer on it do I have to relearn the transmission and if I have to how do I do it since the minimax is connected to the OBD and it can’t be disconnect . Hope you guys can help thank you

    Nelson Zubizarreta | 7/10/2022

    You will have to do an quick relearn process.

  • What kind of a warranty does the revmax come with?

    Brad Henrikson | 10/12/2022

    Revmax Performance valve bodies feature a one-year unlimited mileage warranty. Electrical items included on some of our valve bodies such as sensors, solenoids and wiring harnesses, have a 90 day warranty.
