Edge Insight CS2 (84030) & Edge EGT Probe with Lead (98620)

Product Name: Edge Insight CS2 (84030) & Edge EGT Probe with Lead (98620)
Manufacturer: Edge
Thoroughbred Diesel Part #: EDG84030WEGTPROBE
Fitment Notes: 1994-2022 GM/Ford Dodge Vehicles

Edge Insight CS2 (84030) & Edge EGT Probe with Lead (98620)

• Save time and money by buying both Insight CS2 & Edge EGT Probe with Lead at the same time! We offer the Edge Insight CS2 (84030) & Edge EGT Probe with Lead (98620) to help you shop fast and easy. Call us at 1-859-737-4966

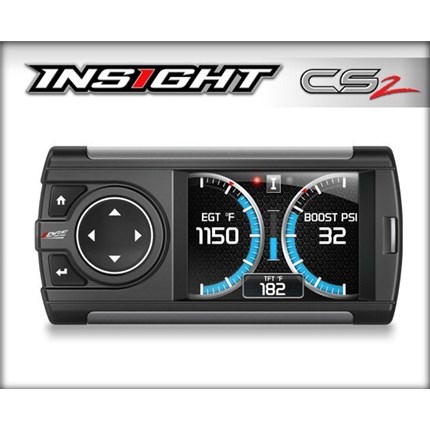

The Edge Products 84030 Insight CS2 is an all-in-one digital monitor that will provide you with the info you need to monitor your engine vitals. With unmatched control and style, the Insight CS2 offers the most advanced technology in engine monitoring available today. The Insight CS2 offers the same great features and benefits offered by its predecessor, the CS, all while adding a sleek, new exterior and cutting-edge, high-resolution screen. The Insight CS2 is compatible with any OBDII-enabled vehicle 1996 and newer.

The Edge Insight CS2 fits your Dodge Cummins, Ford Powerstroke and GM Duramax pickup truck. This part also fits many gas applications, it will fit any vehicle 1996-up with an ODBII port.

Do you drive a vehicle? Sounds like a loaded question, but the Insight CS2 is quite liter- ally designed for anyone driving around town, towing, or competing in a sanctioned race or sled pull event. The Insight CS2 gauge monitor provides vital vehicle information to keep you and your vehicle safe, efficient, and competitive.

Bonus Features:

Adjust EFILive Tuned PCMS On-The-Fly
On 2001-2005 LB7 and LLY Duramax engines you can now change the power levels on-the-fly created by your EFILive custom tuning software with your Edge Insight CS2! Simply use your EFILive software to change your DSP5 Switch Type from "hard wire" to "serial". Once you are set up to support "serial" communication, simply use the up and down arrow buttons on your Insight to adjust EFILive tunes on-the-fly.

• Displays Fuel Rail Pressure on Duramax Engines
• Displays Diesel Particulate Filter (DPF) Regeneration Status on new diesels with DPF traps

Data Logging Software
Fine tune your runs on the track, or prolong the life of your tow vehicle by identifying "out of range" parameters. The CS2 Data Logging feature can show you crucial data to help you identify the "sweet spots" as well as potential problems with your driving experience. Shaving a few tenths of a second off your race time, or running a few degrees cooler makes all the difference. The data logging feature allows for a comprehensive, accurate picture of the vehicle's condition, such as temperatures, pressures, speed, and more!

• Store up to 10 unique logs at a time
• Log hours of data
• View and graph logs on your PC using the new MyStyle Software
• View all parameters or pick which ones you want to view

Control Smarty's Power-On-Demand
Your Dodge is tuned with Smarty, but how are you monitoring your vital engine parameters? Tuning your Dodge and not running an Insight monitor is like taking a knife to a gun fight. The Edge Insight beats any analog gauge system or other digital monitors hands down when it comes to features, monitoring, and maintenance. With our new software update, Smarty users can now control their Power-On-Demand from the Insight monitor. You have a lot of money invested in your Dodge and you deserve the best. You deserve Edge!

• Use the Insight to change the Power-On-Demand settings of your Smarty programmer with a touch of a button
• If your truck is tuned by Smarty, simply connect the Insight to your OBDII (diagnostic) port and control the Smarty Power-on-Demand tuning that was loaded into your trucks computer!

MYSTYLE SOFTWARE (included)
MyStyle software that allows users to choose from a variety of Edge custom backgrounds or simply upload an image of your choice. Size, crop and save to your CS2 unit for the ultimate in customizability.

MILEAGE COACH NOW AVAILABLE FOR THE CS2 AND CTS2 PRODUCTS

Mileage Coach was designed with fuel economy in mind! The all-new features help drivers gauge, monitor, and conserve fuel. Now with the CS2 and CTS2, you can easily see your driving habits with the brand new Mileage Coach screen.

How does it work? When your driving pattern is ideal you'll notice green leaves appear on the Mileage Coach screen and your indicator bar will shift to the green side of the gauge, representing "GOOD" A heavy foot, steep incline, or anything leading to less than ideal fuel mileage will shift the indicator to the red side of the screen meaning "POOR". You'll also notice the leaves turning red when your fuel economy falls below your calculated average MPG. The screen images change colors and indicator bar moves on the screen to simply give a visual on your current driving and lets you know when you need to improve to be more efficient.

Features Include:

• New Mileage Coach Screen Layout
• Mileage Parameters to monitor
• Trip Monitor (Monitors fuel cost on trips)
• MPG Calculator
• Fuel Saving Driving Tips including: Idling, Weather, Cruise Control, Cargo/Towing, Excessive Speed, ETC.

CS2 Key Features:

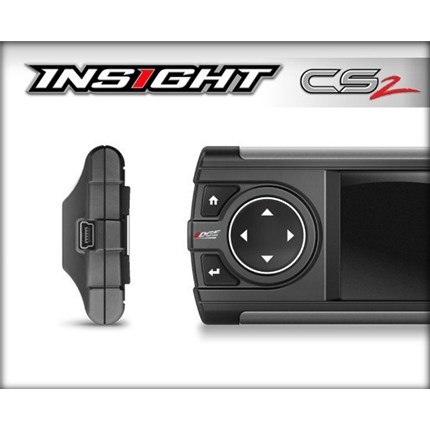

• Slim, Sleek Case Design
• 2.4" Full-Color, High Resolution, Button-Control Screen
• Custom Color Mixer for Gauge Arcs, Needles and Backgrounds
• Multiple Gauge Screen Layouts
• Fully Customizable Backgrounds
• HDMI Style Plug for Power and linking EAS Accessories
• Easy Menu Navigation
• Notification Center

Insight CS2 Features:

• Comprehensive digital gauge display
• Available for 1996 and vehicles equipped with an OBDII (diagnostic) port
• Compatible with other tuning devices
• Displays dozens of parameters
• Add EAS 12 volt kit to work with any 12 volt power source
• Full-Color, High-Resolution, 2.4-inch Screen (CS2)
• Displays available SAE data from your vehicle's computer
• View parameters in numeric or analog style gauge display
• Built-in safety features: user-defined visual and audible alerts
• Digital gauge display/scan tool (does not reprogram/tune the vehicle or add power)
• Can be used in conjunction with Edge or other performance products to read vital engine data
• Great value because it monitors much more than just a typical 3-gauge cluster
• Sounds user-defined audible alerts

SUPPORTED VEHICLE PARAMETERS (PIDS)

Cadillac 2001-2006 Gas
Abs Throttle Position, Air Fuel Ratio, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Output Shaft Speed, Power Enrichment, Spark Timing, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

Cadillac 2007-2011 Gas
Accel Pedal Position, Activated Cylinders, Air Flow Calculated, Alcohol Fuel Percent, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Gear with TCL, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Lambda, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Power Enrichment, Throttle, Position, Time 0-60, Time 1/4 mile, Timing Advance, Trans Temp, Vehicle Speed

Chevrolet/GMC 2001-2004 6.6L Duramax LB7
Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate 02+, Desired FRP, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure 03+, Engine RPM, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Main Inj Fuel Rate, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Pilot Inj Command, Pilot Inj Rate, Pilot Inj Timing, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Vehicle SpeedAccel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate 02+, Desired FRP, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure 03+, Engine RPM, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Main Inj Fuel Rate, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Pilot Inj Command, Pilot Inj Rate, Pilot Inj Timing, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Vehicle Speed

Chevrolet/GMC 2004.5-2005 6.6L Duramax LLY
Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate, Desired FRP, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine Oil Temp, Engine RPM, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Main Inj Command, Main Inj Fuel Rate, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Pilot Inj Command, Pilot Inj Rate, Pilot Inj Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Turbo Vane Position, Vehicle Speed

Chevrolet/GMC 2006-2007 6.6L Duramax LLY & LBZ
Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate, Desired FRP, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine RPM, Fuel Rail Pressure, ,Fuel Temperature, Gear with TCL, Intake Air Temp, Intake Air Temp Tube, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Turbo Vane Position, Vehicle Speed

Chevrolet/GMC 2007.5-2010 6.6L Duramax LMM
Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate, Desired FRP, Desired Idle RPM, DPF Pressure Variance, DPF Soot Mass, EGT Post DPF, EGT Pre DPF, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine RPM, Engine Run Time, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Intake Air Temp Tube, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow,Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Regeneration Status, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Turbo Vane Position, Vehicle Speed

Chevrolet/GMC 2011 Duramax LML
Ambient Air Temp, Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate, Corrected Speed, Desired Idle RPM, DPF Pressure Variance, DPF Soot Mass, EGT Post Turbo, EGT, Post DOC/Pre SCR, EGT Post SCR/Pre DPF, EGT, Post DPF, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine RPM, Engine Run Time, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG, Instant, MPG Average, Output Shaft Speed, Regeneration Status, Reductant (Urea) Level, Reductant Pressure, Reductant Temperature, Reductant Range, Reductant Inj Command, Trans Temp, Turbo Boost

Chevrolet 1999-2006 Gas
Abs Throttle Position, Air Fuel Ratio, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Output Shaft Speed, Power Enrichment, Spark Timing, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

Chevrolet 2007-2011 Gas
Accel Pedal Position, Activated Cylinders, Air Flow Calculated, Alcohol Fuel Percent, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Gear with TCL, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Lambda, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Power Enrichment, Throttle Position, Time 0-60, Time 1/4 mile, Timing Advance, Trans Temp, Vehicle Speed

Dodge 1998.5-1999 24V 5.9L Cummins
Accel Pedal Position, Battery Temp, Battery Voltage, Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Pressure (Juice w/ Attitude Only), Gear, Intake Air Temp, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed (Mileage Coach Not Yet Available)

Dodge 2000-2002 24V 5.9L Cummins
Accel Pedal Position, Battery Temp, Battery Voltage, Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Pressure (Juice w/ Attitude Only), Gear, Intake Air Temp, Mileage Coach, MPG Instant, MPG Average, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

Dodge 2003 5.9L Cummins
Accel Pedal Position, Barometric Pressure, Battery Voltage, Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Rail Pressure, Gear, Gear with Reverse, Intake Air Temp, Manifold Air Pressure, Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

Dodge 2004-2005 5.9L Cummins
Barometric Pressure, Battery Voltage, Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Rail Pressure, Gear, Gear with Reverse, Intake Air Temp, Manifold Air Pressure, Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

Dodge 2006-2007 5.9L Cummins
Barometric Pressure, Battery Voltage (Insight Only), Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level (Insight Only), Fuel Rail Pressure, Gear with TCL, Intake Air Temp, Manifold Air Pressure, Mileage Coach, MPG Instant, MPG Average, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

Dodge 2007.5-2011 6.7L Cummins
Barometric Pressure, Battery Voltage, Boost, Calculated Load, Corrected Speed, DPF Pressure, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Rail Pressure, Gear with TCL, Intake Air Temp, Mileage Coach, MPG Instant, MPG Average, Post DOC EGT, Post DPF EGT, Post Nox EGT, Regeneration Status, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

Ford 1994-1997 7.3L Powerstroke
Battery Voltage, Engine Load, Engine Oil Temp, Engine RPM, Exhaust Back Pressure, Gear with TCL, ICP Pressure, Injector Pulse Width, Intake Air Temp, IPR Duty Cycle, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Vehicle Speed, Waste Gate Control Duty Cycle

Ford 1999-2003 7.3L Powerstroke
Accel Pedal Position, Battery Voltage, Engine Oil Temp, Engine RPM, Exhaust Back Pressure, Gear with TCL, ICP Pressure, Injector Pulse Width, Intake Air Temp, IPR Duty Cycle, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Vehicle Speed, Waste Gate Control Duty Cycle

Ford 2003-2007 6.0L Powerstroke
Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed (03-04), Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, FICM Voltage, Gear with TCL, ICP Pressure, Injector Pulse Width, Intake Air Temp, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, TCC Duty Cycle, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Vehicle Speed (04-07), Variable Geometry Turbo Duty Cycle

Ford 2008-2010 6.4L Powerstroke
Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed, EGT, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Gear with TCL, Intake Air Temp, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Regeneration Status, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost

Ford 2011 6.7L Powerstroke
Ambient Air Temp, Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed, Dist. Between Regens, Dist. Since DTC Clear, Dist. Since Regen, DPF Pressure, DPF Soot Mass, DTC Count, EGT Post DPF, EGT Pre DPF, EGT Post Turbo, EGT Post SCR/Pre DPF, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Fuel Rate, Gear with Reverse, Gear with TCL, Intake Air Temp, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, Nox PPM, Regeneration Status, Reductant (Urea) Level, Time 0-60, Time 1/4 mile, Torque, Torque Solenoid Pressure, Trans Temp, Turbo Boost

Ford EcoBoost 2011-2012
ACC Pedal Position, Baro Pressure, Batt Voltage, Cylinder Head Temp, Engine Coolant Temp, Engine Load, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Engine RPM, Manifold ABS Pressure, Mileage Coach, Mileage Avg., Mileage Inst., Run Time, Spark Advance, TCC Solenoid Pressure, Trans Fluid Temp, Trip Odo, Turbo Boost, Vehicle Speed

Ford 2009-2010 Gas
Accel Pedal Position, Barometric Pressure, Battery Voltage, Cyl Head Temp, Engine Coolant Temp, Engine Load, Engine RPM, Engine Run Time, Gear with TCL, Knock Sensor 1, Knock Sensor 2, Loop Status, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Advance, Time 0-60, Time 1/4 mile, Trans Temp, Variable CAM, Vehicle Speed

Ford 1997-2003 Gas
Battery Voltage, Cyl Head Temp, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Advance, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

GMC 1999-2006 Gas
Abs Throttle Position, Air Fuel Ratio, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Output Shaft Speed, Power Enrichment, Spark Timing, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

GMC 2007-2011 Gas
Accel Pedal Position, Activated Cylinders, Air Flow Calculated, Alcohol Fuel Percent, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Gear with TCL, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Lambda, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Power Enrichment, Throttle Position, Time 0-60, Time 1/4 mile, Timing Advance, Trans Temp, Vehicle Speed

Hummer H2 2003-2006 Gas
Abs Throttle Position, Air Fuel Ratio, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Output Shaft Speed, Power Enrichment, Spark Timing, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

Hummer H2 2007-2008 Gas
Accel Pedal Position, Activated Cylinders, Air Flow Calculated, Alcohol Fuel Percent, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Gear with TCL, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Lambda, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Power Enrichment, Throttle Position, Time 0-60, Time 1/4 mile, Timing Advance, Trans Temp, Vehicle Speed

Isuzu 2003-2004 Gas
Abs Throttle Position, Air Fuel Ratio, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Output Shaft Speed, Power Enrichment, Spark Timing, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed

Dodge Ram 2003 Hemi
Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Oil Pressure, Engine Speed, Fuel Level, Intake Manifold Vacuum, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle

Dodge Ram 2004-2005 Hemi
Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Oil Pressure, Engine Speed, Fuel Level, Gear with TCL, Intake Air Temp, Intake Manifold Vacuum, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle

Dodge Ram 2006 Hemi
Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Oil Pressure, Engine Speed, Fuel Level, Gear with TCL, Intake Air Temp, Intake Manifold Vacuum, Mass Air Flow, MDS Status, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle

Dodge Ram 2007-2008 Hemi
Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Gear with TCL, Global Knock, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Mass Air Flow, MDS Status, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle

Jeep 1998-2007 Wrangler
Battery Temp, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Gear, Gear with Reverse, Intake Air Temp, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle (Mileage Coach Not Yet Available)

Jeep 2005-2006 Wrangler
Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Oil Pressure, Engine Speed, Fuel Level, Gear, Gear with Reverse, Intake Air Temp, Intake Manifold Vacuum, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle

Jeep 2007-2011 Wrangler
Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Gear with TCL, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle

Lincoln 2009-2010 Gas
Accel Pedal Position, Barometric Pressure, Battery Voltage, Cyl Head Temp, Engine Coolant Temp, Engine Load, Engine RPM, Engine Run Time, Gear with TCL, Knock Sensor 1, Knock Sensor 2, Loop Status, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Advance, Time 0-60, Time 1/4 mile, Trans Temp, Variable CAM, Vehicle Speed

Other 1996+ OBDII Enable Vehicles (Not all PIDs listed will show up on all vehicles)
Abs Throttle Position, Accel Pedal Position, Accel Pedal Pos. D, Accel Pedal Pos. E, Accel Pedal Pos. F, Accel Throttle Pos. B, Accel Throttle Pos. C, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Fuel Pressure, Fuel Rail Pressure, Intake Air Temp, Lambda, Learned Throttle Pos., Long Term Fuel Bank 1, Long Term Fuel Bank 2, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, O2 S1 WR Lambda, O2 S2 WR Lambda, O2 S3 WR Lambda, O2 S4 WR Lambda, O2 S5 WR Lambda, O2 S6 WR Lambda, O2 S7 WR Lambda, O2 S8 WR Lambda, Rel. Fuel Rail Press., Short Term Fuel Bank 1, Short Term Fuel Bank 2, Spark Timing, Time 0-60, Time 1/4 mile, VGT Duty Cycle

Results and feature set may vary based on vehicle make, model, and aftermarket upgrades.
