Fox Performance Series 2.0 Coil-Over IFP Shock - 2019-2023 Ram 1500 DT 2WD/4WD (Front) Lifted 0"-2"

Thoroughbred Sku #: FOX985-02-136
Manufacturer Sku #: 985-02-136


$549.95

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name:Fox Performance Series 2.0 Coil-Over IFP Shock - 2019-2023 Ram 1500 DT 2WD/4WD (Front) Lifted 0"-2"
Manufacturer: Fox Shocks
Manufacturer Part #: 985-02-136
Thoroughbred Diesel Part #: FOX985-02-136
Fitment Notes: 2019-2023 Ram 1500 DT 2WD/4WD

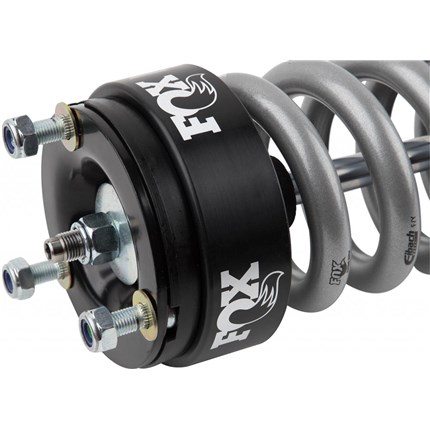

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Fox Shocks Features:

  • Enhanced Ride Quality
  • Easy-To-Mount Assembly
  • Application Specific Valving
  • For more information on Fox Shocks call us at 1-859-737-4966
Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing Large diameter, heavy-duty spherical
Adjustments Ride height preload ring
Extended 20.860
Compressed 15.460
Travel 5.390
Top Mount OEM

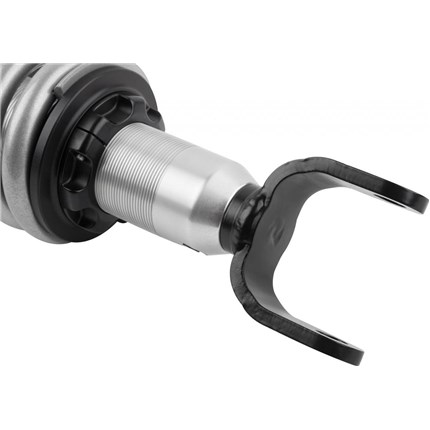

Bottom Mount Clevis
Fitment notes Does Not Fit Air Ride Models
