Fox 2.0 Performance Series Adjustable Reservoir Shocks - 2017-2023 Ford F-250/F-350 4WD (Front) Lifted 4"-5" | 2017-2019 Ford F450/550 2WD/4WD Cab & Chassis (Front) Lifted 4"-5"

Thoroughbred Sku #: FOX985-26-163
Manufacturer Sku #: 985-26-163

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Install Sheet - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$429.95

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: Fox 2.0 Performance Series Adjustable Reservoir Shocks - 2017-2023 Ford F-250/F-350 4WD (Front) Lifted 4"-5" | 2017-2019 Ford F450/550 2WD/4WD Cab & Chassis (Front) Lifted 4"-5"
Manufacturer: Fox Shocks
Manufacturer Part #: 985-26-163
Thoroughbred Diesel Part #: FOX985-26-163

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Specifications:

  • Body: 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
  • Body Plating: Clear-anodized for a durable finish
  • Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation

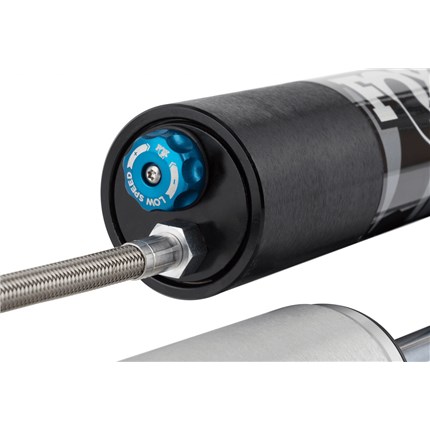

  • Adjuster Type: LSC - Low Speed Compression
  • Extended: 25.800
  • Compressed: 15.700
  • Travel: 10.100

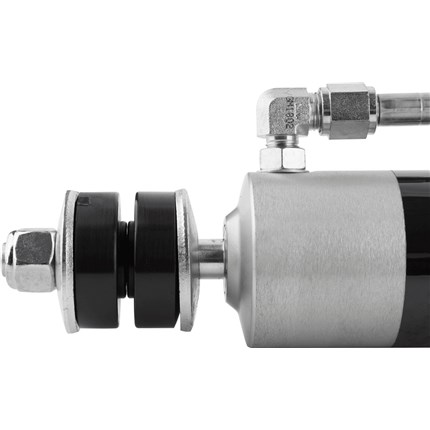

  • Top Mount: Stem Top

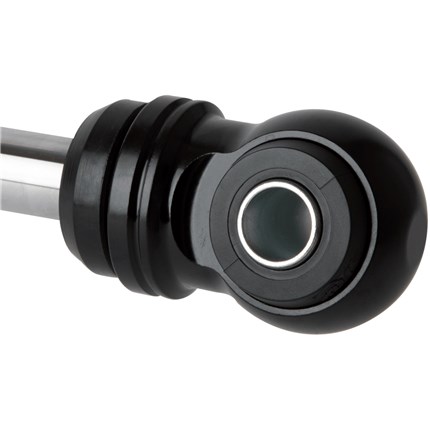

  • Bottom Mount: Eyelet
  • Fitment notes: Includes Universal Bracket

Note: 0"-2" Lift is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application.

Note: Sold individually.
