Mag-Hytec Transmission Pan & Filter - 01-18 Duramax (Allison 1000/2000/2400 Series Trans.) - #A1000

Thoroughbred Sku #: MAGA1000-DEEPFIL

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit


$376.64

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

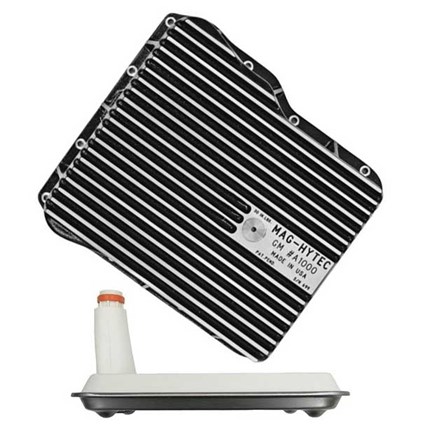

Product Name: Mag-Hytec Transmission Pan & Filter
Manufacturer: MAG-HYTEC
Manufacturer Part #: A1000-DEEPFIL
Thoroughbred Diesel Part #: MAGA1000-DEEPFIL
Fitment Notes: 2001-2018 GM 6.6L Duramax (Allison 1000/2000/2400 Series Trans.) - #A1000

A1000 Transmission Pan
Fits: 2001-2018 GM 6.6L Duramax (Allison 1000/2000/2400 Series Trans.)
Capacity: 4.5 Quarts Over Stock
Overall Height: 5 1/2"

The Mag-Hytec A1000 Allison transmission pan is cast in A356-T6 aluminum and texture powder coated black with contrasting machined cooling fins, the Mag-Hytec trans. pan boasts increased fluid and cooling capacity, a magnetic drain plug, as well as a temperature sender port in 1/8"NPT. The drain plugs and reference plugs are MS 33649 and fitted with ARP 568 O-rings for superior sealing. All fasteners are T-303 stainless steel. The pan seal is a dovetail groove mounted ARP 568 O-ring that requires no sealant or gasket. It can be removed and reinstalled several times without replacement.

The Mag-Hytec pan is constructed of high quality aircraft aluminum and has a powder-coated finish. The bolts are zinc plated allen head screws and the washers are stainless steel. These components require no maintenance.

Mag-Hytec Transmission Pan & Filter Features:

  • Includes Filter
  • Deep high-capacity sump for maximum cooling
  • Finned aircraft aluminum construction
  • Magnetic drain plug aids in trapping worn material promoting fluid integrity.
  • O-rings require no gaskets or sealant
  • 1/8"NPT temperature sender port
  • T-303 stainless steel hardware except allen head cap screws are zinc plated
  • Requires only three allen key wrenches (included) for installation and service
  • All Mag-Hytec parts are covered by a lifetime limited warranty.
  • For more on Mag-Hytec call us at 1-859-737-4966.

Reviews

  • Do you need to run an Allison gasket with this or is the bead on this cover ample enough to run by itself, without gasket?

    Cody | 1/21/2021

    O-rings require no gaskets or sealant
