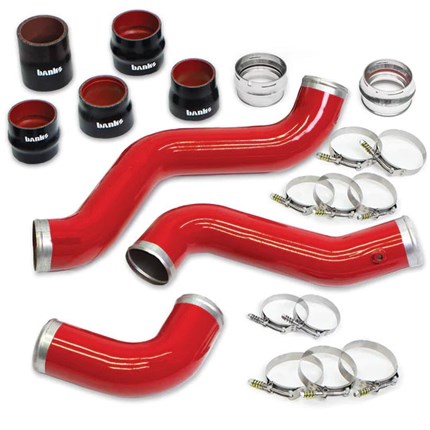

Banks Boost Tube Upgrade Kit (Red) - 20-24 Duramax L5P

Product Name: Banks Boost Tube System (Red) - 2020-2024 GM Duramax L5P
Manufacturer: Banks
Manufacturer Part #: 26005
Thoroughbred Diesel Part #: BAN26005
Fitment Notes: 2020-2024 GM Duramax L5P

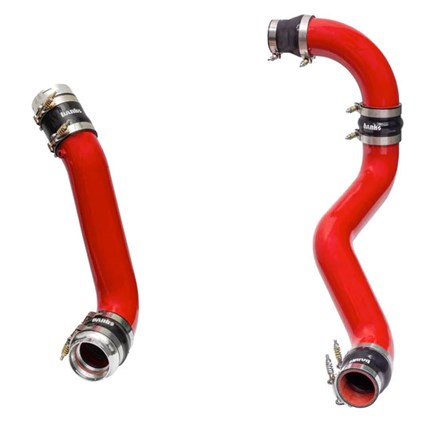

Banks Boost Tubes are the largest charge air cooler pipes in the industry, measuring in at a full 3.5 inches. Every other competitive product on the market tops out at just 3.0 inches, and your factory pipes are only 2.5 inches with crushed bent corners and flimsy plastic components. By contrast, Banks Boost Tubes are made of high-quality aluminized steel for maximum strength and durability. With Banks Boost Tubes' smooth bends, your turbo can spool quicker thanks to improved boost pressure retention for maximum horsepower.

The Boost Tubes work with the stock Duramax intake components by using proprietary high-strength 5-ply silicone hoses. Unique to the 2020+ model, a pair of billet aluminum cold-side adapters are also used for the intercooler connection and the throttle body. These are specially made for the airflow requirements of the L5P and feature a Venturi-like taper on their inside diameter to maintain boost pressure and volumetric flow.

BANKS BOOST TUBES FLOW BEST

Banks oversized charge air cooler pipes and pair of unique billet adapters results in less boost pressure loss from turbo to intake manifold.

With an 26-45% improvement in airflow, your turbo can spool faster and sustain boost pressure with less wasted energy and heat.

Banks Boost-Tubes allow your engine, and specifically your turbo, to work less hard in compressing intake air; this maximizes horsepower delivery and throttle response while reducing engine stress.

INDUCTION PERFECTION

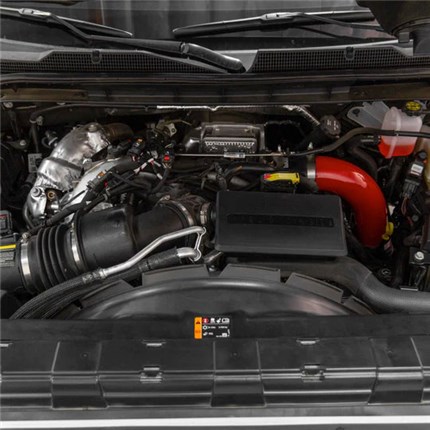

Even with the tighter engine space in the 2020+ L5P, Banks engineers were still able to maintain a full 3.5" diameter on both the hot and cold side of our boost tubes.

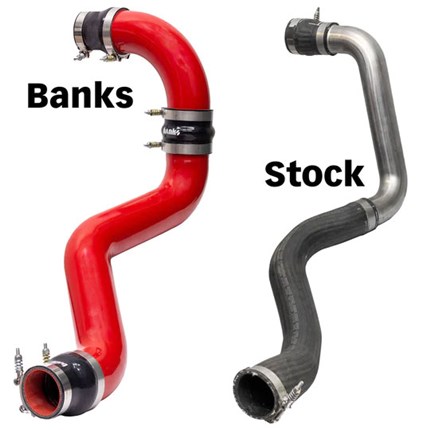

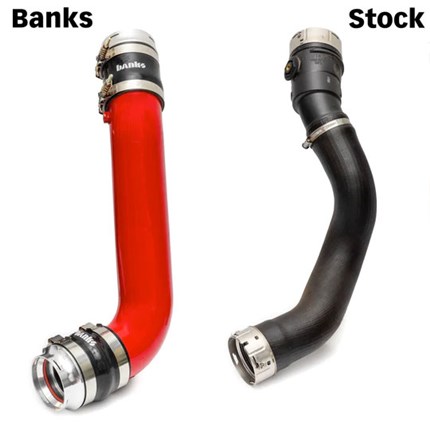

Put up side by side with the factory intercooler piping, ours could practically eat the stock one whole!

The combination large smooth mandrel bends and steel construction put the Banks Boost-Tubes in a performance and durability class of their own.

GOING THE EXTRA MILE

GM revised, moved, and updated several components throughout the engine bay for the 2020+ L5P, including a new coupler system on the cold side.

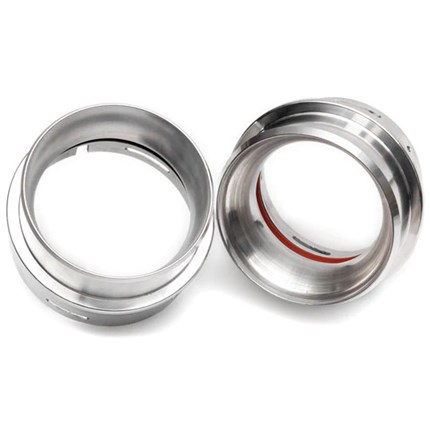

Our engineers used CFD simulations to design a pair of billet couplers for both ends of the cold side tube with a perfect taper and unique double parabolic shape to maximize airflow and reduce airflow restriction.

The shape and curvature of these couplers are critical to maintaining pressure efficiency throughout the intercooler system.

DO IT RIGHT

For the 2020+ L5P, GM decided to go with a near full rubber hose design on the cold side.
