Banks Boost Tube Upgrade Kit, Red powder-coated (Set), 2011 Duramax LML

Product Name: Banks Boost Tube Upgrade Kit, Red powder-coated (Set), 2011 Duramax LML
Manufacturer: Banks
Manufacturer Part #: 25959
Thoroughbred Diesel Part #: BAN25959
Application: 2011 GM Duramax LML

Boost Tube Upgrade Kit

Up to 105% greater flow area vs stock Spools turbo faster with lower EGTs

Red powder-coated (Set)

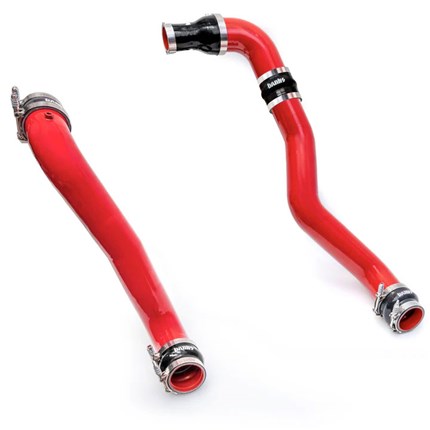

OEM replacements for left and right side boost tubes with silicone couplers. With up to 105% greater flow area compared to stock, these better-flowing intercooler tubes result in less boost pressure loss from the turbo to the intake manifold. This results in less work for the turbo, improving engine efficiency and power consistency.

Specifications

Banks boost tubes are larger than the factory pipes and designed to work with the stock elbow and intercooler to improve airflow, and allow the turbocharger to spool up faster.

Banks' hot and cold side tubes have up to 105% percent greater flow area than stock tubes. Produced from high-quality aluminized steel, the tubes are mandrel bent and constant diameter. This allows for a quicker turbo spool. Better flowing intercooler tubes improve retention of boost pressure (increases density) between turbo, intercooler, and intake resulting in maximum horsepower. Our powder-coat finish stops before the end of the tubes for better grip ensuring our 4- and 5-ply heavy-duty high-temperature silicone couplers hold tight under high-boost conditions. Spring-loaded constant tension clamps maintain a stronger grip to prevent leaks or blown boots.

Fitment Note

This kit is designed to work with the stock intercooler or aftermarket intercooler with stock inlet and outlet size and location.

Breath Better With Banks

Better flowing intercooler tubes results in less boost pressure loss allowing for more air and fuel to be delivered to your engine resulting in maximum horsepower.

Banks hot side Boost Tubes feature a 105% greater flow area than OEM hot side, with 14% greater flow are on the cold side.

Unlike factory LML boost tubes which are known to blow out and cause boost leaks. Banks Boost Tubes use heavy duty 5 ply silicone couplers and steel 3.5" tubes designed to take the pressure and last.

This kit is designed to work with the stock intercooler (or aftermarket intercooler with stock inlet and outlet size and location).

Banks Boost Tube Upgrade Kit, Red powder-coated (Set) Features:

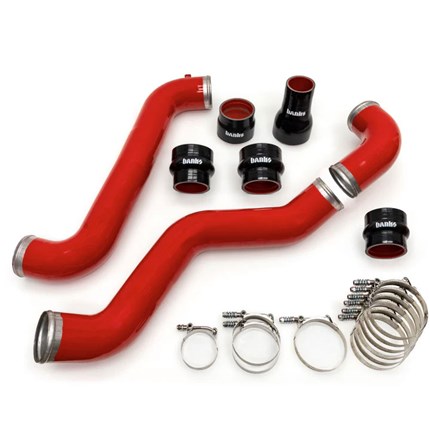

• Complete set of left and right side boost tubes with silicone couplers.
• Works with the stock or aftermarket intercooler with stock inlet and outlet size and location
• Huge increase in size and flow over stock (3.5-inch vs 2.5/3.38-inch)
• These boost tubes are designed for serious horsepower.
• Up to 105% greater flow area compared to stock.
• Constant diameter tubing for the best flow
• Mandrel-bent aluminized steel construction
• 4- and 5-ply heavy-duty silicone couplers
• Spring-loaded constant tension clamps
• Greater cooling capacity
• Perfect fit and finish
• Lower EGTs
• 50 State Compliant CARB E.O. D-161-155
• For more information on Banks call us at 1-859-737-4966.
