BD Diesel Dodge 68RFE Peformance Transmissions

• New regulator valve design
• New valve body separator plate
• Pressure Control module
  • deliver up to 250 PSI clutch apply pressure
  • 150% of the holding force to prevent clutch slippage
  • dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
• Clutch packs and drums have new machined designs
• Special machined 2nd gear piston to incorporate additional thick-as-stock clutch fiber and steel plates
• Modified 4th gear apply piston to accept a new heavier Billet retainer
• Steel girdle to strengthen the piston and give a broader apply area
• Heavy Duty cam and roller style one-way clutch
• Not warranted for Race or Sled Pull use

The 68RFE coupled behind the Dodge/Cummins 6.7L engine represents a new breed of transmission that was built to take on the high torque and horsepower of the Cummins engine but only at stock specs.

There are many of those whom have already pushed the limits of their transmission with performance enhancements and hauling heavy loads that know all too well how much is too much for the 68RFE. BD transmissions are designed to take on what most 68RFE owners are looking for – responding with smooth sharp shifts to keep the engine in the torque range required.

The electronic controls of the 68RFE and 6.7L Cummins combination makes the replacement of the transmission too complex for the back yard mechanic or small shop to perform – special scanners, gauges, tooling and flushing machines are required to get the job done right within the warranty specifications without instant failures occurring. BD has set up an expanding network of installation centers that can supply and install your new BD 68RFE transmission.

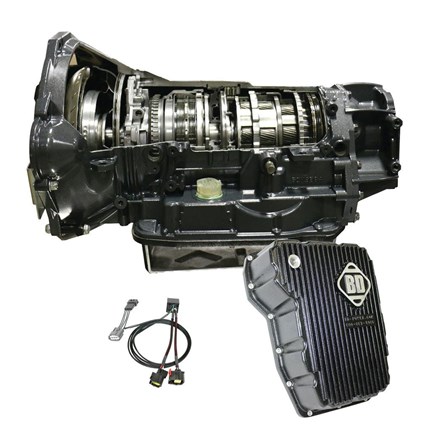

Each transmission is dyno tested and comes with BD's Heavy Duty Deep Sump aluminum transmission pan to add strength to the case preventing flexing and internal oil leakage.
We have matched BD's proven Triple Torque Force Converter to this application. Its one-piece billet cover prevents warping and trapezoid teeth hold the clutches that provide three times the holding power over stock units resulting in less friction wear and no rattling. BD's own designed cast stator offers the ultimate torque multiplication and hits the target fluid coupling speed.

The larger input shaft of the 68RFE will handle the shock of the Triple Torque Force 3-clutch engagement but if you are demanding more HP and with less risk, we recommend a Billet Input shaft - broken shafts are not covered under the warranty program.

Ask for the ultimate 68RFE Diesel drivetrain performance package! Ask for a BD 68RFE!

Inside each transmission is a NEW DESIGN valve body that achieves up to 80% higher clutch apply pressures over the stock unit and up to 50% over the competitors with the pressure increase starting at much lower engine rpm's and at lighter throttle pedal position movement. Light throttle shift firmness is also maintained at these higher apply pressures and no shuttle shifting problems.

Warranty: 36-month / 150,000 mile limited warranty on non competitive, racing or sled-pulling applications. See warranty statement for further details.
