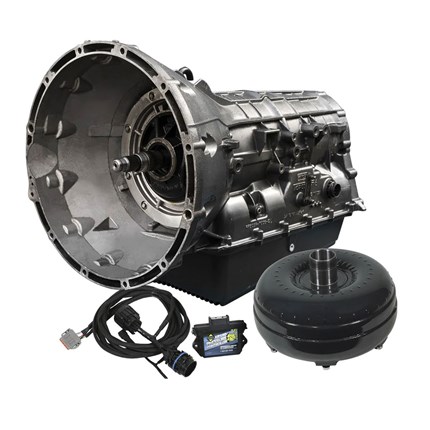

BD Diesel Torquemaster 6R140 Transmission & Converter Package - 11-16 Ford 6.7L

Thoroughbred Sku #: BDD1064504BM-CRE

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$7,995.00

+ $200.00 Shipping
NOTE: BD makes returning your core easy. Use the return label from BD’s website (CLICK HERE) and the cost will be deducted from your core credit or charged to your card if you chose the "Pay Core Later" option

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name:BD Diesel Torquemaster 6R140 Transmission & Converter Package - 2011-2016 Ford Powerstroke 6.7L
Manufacturer: BD Diesel
Manufacturer Part #: 1064504BM
Thoroughbred Diesel Part #: BDD1064504BM
Fitment Notes: 2011-2016 Ford Powerstroke 6.7L

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

BD Diesel Torquemaster Ford 6R140 Transmission & Converter Package Features:

  • TRANSMISSION:
    • More clutches compared to stock and competitors

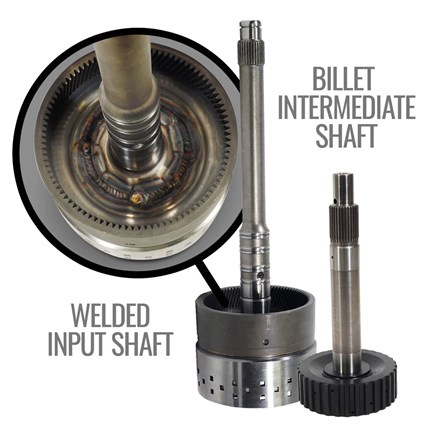

    • Billet intermediate shaft to handle higher power
    • Upgraded input shaft is tig welded to prevent OEM weld failure in demanding applications
    • Custom BD patented pressure plates increase clutch count without sacrificing part strength
    • Clutch Count: FORWARD 6 (20% increase over stock)
    • Clutch Count: DIRECT 6 (20% increase over stock)
    • Clutch Count: INTERMEDIATE 8 (60% increase over stock)
    • Clutch Count: OVERDRIVE 8 (14% increase over stock)
    • Clutch Count: LOW REVERSE 5
    • Brand new valve body
    • Electronic Line Pressure Controller for up to 300psi Line Pressure
  • PRESSURE CONTROLLER:
    • 76% more theoretical holding power
    • Delivers up to 300psi line pressure at WOT
    • Only active when boost over 15psi, unlike solenoid foolers or plugs which are active all the time
    • Does not create parasitic load or extra heat when inactive
  • TORQUE CONVERTER:
    • Ideal upgrade converter for heavy tow use or higher horsepower
    • Captured clutch design maintains good drivability feel
    • Four surface clutch assembly doubles the OEM friction area
    • Increased count of steels increases heat dissipation
    • 23% increased piston area for additional clutch clamping force
    • Billet bearing hub, piston and clutch retainer
    • Stamp forged 1-piece cover
    • Furnace-brazed pump and turbine fins
  • For more information on BD Diesel call us at 1-859-737-4966

INSTALL TIME

  • 12 Hours
  • Will need Ford Scanner

WARRANTY

Parts

  • 36-Months
  • 150,000 Miles
Labour
  • 12-Months
  • 12,000 miles
Note
  • No Race abuse covered

NOTE

  • 2WD applications require the yoke adapter and rear mount bracket be transferred over during installation
  • For PTO option please call us at 1-800-887-5030
  • Ford scanner required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly
  • Transmission is compatible with both 2wd and 4wd applications
  • Will not fit early 2011 trucks with 8-bolt flex plate – will have to update to 6 bolt flex plate.

EMISSIONS

  • This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
