BD Diesel Dodge 68RFE Performance Transmission (Includes Billet Input Shaft) - 2007.5-2018 6.7L 68RFE 4WD

Thoroughbred Sku #: BDD1064264B-CRE

Item Options:

Documents - PDF:
Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$6,475.00

+ $200.00 Shipping
NOTE: BD makes returning your core easy. Use the return label from BD’s website (CLICK HERE) and the cost will be deducted from your core credit or charged to your card if you chose the "Pay Core Later" option

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

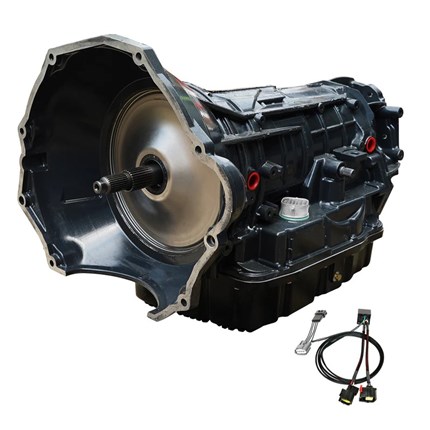

Product Name: BD Diesel Dodge 68RFE Performance Transmission (Includes Billet Input Shaft) - 2007.5-2018 6.7L 68RFE 4WD
Manufacturer: BD Diesel
Manufacturer Part #: 1064264B
Thoroughbred Diesel Part #: BDD1064264B
Fitment Notes: 2007.5-2018 Dodge 6.7L 68RFE 4WD

BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Every BD 68RFE is also build to withstand 250psi of line pressure for unrivaled torque holding capacity. Comes with Billet Input Shaft designed to withstand rapid acceleration and high torque

BD Diesel Dodge 68RFE Performance Transmission Features:

  • Hard anodized valve body and new solenoid pack installed in every unit
  • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
  • Heavy Duty cam & roller design low reverse one way clutch
  • New 4C billet spring retainer
  • Steel girdle added to 2C piston to allow for more clutches and broader apply area
  • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
  • Over Drive clutches 33% increase & 2C clutches 33% increase
  • Custom Big Stack overdrive shaft
  • BD reinforced accumulator plate
  • TCC limit valve machined and sleeved to address high wear area with in pump
  • BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
  • BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
  • Available with Billet input shaft
  • For more on BD Diesel call us at 1-859-737-4966.

WARRANTY

Parts

  • 36-Months
  • 150,000 Miles

Labour

  • 12-Months
  • 24,000 miles

Notes:

  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
  • BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
  • Does not include torque converter

Reviews

  • Just had this installed, 2015 Ram 3500 6.7, deleted, BD turbo, EFI live 5 position switch. Shifts really hard into 4th. is this normal?

    David P Montell | 1/5/2024

    Typically no. please contact BD Diesel.

  • Horse power rating on this transmission?

    Mitchell | 10/10/2023

    550 hp

  • My controller broke so transmission guy took it off . Year later transmission broke could that be the cause?

    Buz Hendrickson | 1/27/2022

    It may have contributed to the failure. The  BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required.
