DieselSite Complete Boot Set - Ford 6.4L

Product Name: DieselSite Complete Boot Set - 2008-2010 Ford 6.4L Powerstroke
Manufacturer: DieselSite
Manufacturer Part #: CBK-64
Thoroughbred Diesel Part #: DSTCBK-64
Fitment Notes: 2008-2010 Ford 6.4L Powerstroke

DIESELSITE boots are designed to replace leaking and deteriorated sets on the 6.4L Ford PSD light duty diesels.

Our boots are made of a more durable material and have a stronger hold for trucks making higher boost numbers.  Higher boost in the PSD can stretch the limits of a saturated set of factory boots and could blow your boots right off.  In some cases, even stock or under-powered vehicles will experience boots that slip and lose grip if they've lost integrity and are saturated in oil.

Torque spec is 60 in/lbs - DO NOT EXCEED!

THE ISSUE WITH STOCK BOOTS:

Stock boot material is silicone; however, this type of material is NOT oil compatible.  This material will break down over time in these applications as the PSD incorporates a closed crankcase vent system.  This means oil travels through the intake and comes in constant contact with the boots.  This oil contact causes deterioration and leaks due to the incompatibility of the silicon boots and the oil from your crankcase.  In fact, if you have seen an oil mist all over the valley of your PSD and wondered where it was coming from, chances are it was caused by leaking and deteriorated stock boots.  The stock boots WILL leak air and oil and cause a 3-4 PSI loss in boost.

HOW ARE DIESELSITE BOOTS MADE?

This is a DIESELSITE original product and has been treated with the highest quality.  We ordered sample upon sample of hose material and clamps until we were satisfied with the quality of the parts and certain of their integrity in our application.  Our boots are made of a hose that is reinforced with a 5-ply braided synthetic fabric.  It will not kink or collapse.  The special synthetic rubber is exceptionally resistant to heat, ozone, gasoline, gasohol, methanol, ethanol, and diesel fuel.  It can withstand the engine heat and 100 psi boost pressure.  With care, this is a virtually indestructible boot material.

Our boots are Fluorolastomer lined to handle the heat and oil.  Fluorolastomers are synthetic, rubber-like materials used in gaskets and o-rings. Their unique properties make these products ideal for high-performance aerospace and automotive applications and environments that are extremely harsh and challenging.

THIS KIT INCLUDES:

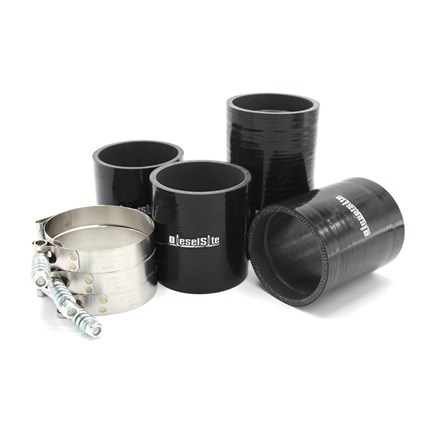

This complete kit includes the boot that connects the turbo outlet to the manifold, the boot that connects the intake manifold to the intercooler piping, and the two boots that connect the intercooler to the intercooler piping and all required clamps.

DieselSite Complete Boot Set Features:

• (1) Turbo Outlet Boot measuring 3" Inner Diameter

• (1) Intake Manifold Boot measuring 3" Inner Diameter

• (1) Intercooler Boot measuring 3" Inner Diameter [DSB8]
• (1) Intercooler Boot measuring 3"/3.25" (tapered) Inner Diameter [DSB1]
• (8) T-Bolt Style Clamps
• For more information on DieselSite call us at 1-859-737-4966
