Choate 6.4 Full Runner Daily Driver

Thoroughbred Sku #: CEP64FRD-CRE

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit


$22,600.00

+ $600.00 Shipping

core learn more button I have read and I accept the terms and conditions.

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

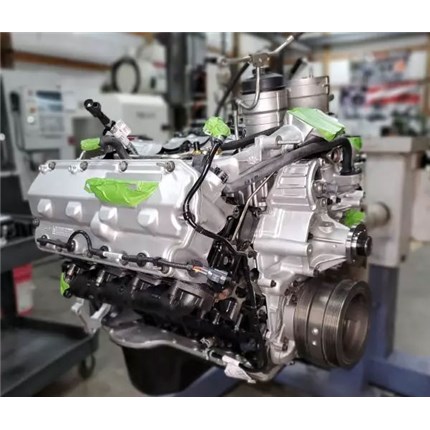

Product Name: Choate 6.4 Full Runner Daily Driver 2008-2010 Ford Powerstroke 6.4L
Manufacturer: Choate Engineering Performance
Manufacturer Part #: 64FRD
Thoroughbred Diesel Part #: CEP64FRD
Fitment Notes: 2008-2010 Ford Powerstroke 6.4L

Our built in house Heads
Magnuflux and Pressure Test Heads, Cut Valves, New Induction Hardened Seats, All New Valve Guides, Install New Valve Seals, Test Spring Tension, New Freeze Plugs, New Injector Cups

Head Studs included in our Daily Driver build, New Head Gaskets

Full CNC blue print machining, (bore, deck, hone and align honed)

The Cylinder bores are blue print bored a true 90deg from the crankshaft center line, prior to being diamond honed to within .0002" for precise piston to cylinder bore clearances. Main bore ( line bore) for the crank shaft is linked bored to precisely align the crankshaft in the engine block. Bore block back to crankshaft center line Hone Block to Ra 13 finish. Piston diameter measured to the nearest .0001" matched to cylinder bores. Cylinder block is surfaced to surface finish Ra 20 or finer, which exceeds the factory specification in both flatness and smoothness for the block to head sealing surface.

Connecting Rods, New Damper and Flex plate/Flywheel
All rods are blue print bored to 6.929 center to center and new bushings are installed and honed Line hone all mains. Check main and Rod clearances

New Pistons .10 - .40" over
Pistons, Rings, Pin retainers weight matched prior to crank balancing

New OE Lifters, Lifter Guides, OE Crank Flange Bolts, New 9.800 OE Pushrods

Crankshaft
Balanced with the Rotational assembly checked for runout inspected for fatigue

New Rod, Main and Cam Bearings

Camshaft - Polished and Inspected

FRONT COVER, OIL COOLER OIL PUMP ARE NOT INCLUDED IN OUR LONG BLOCK BUILD.

Install New Bed Seals

Install Rear Main Seal

New Rear Cover Gasket

Upper and Lower Oil Pan Gaskets

Pickup Tube O-ring

Rocker Carrier Gaskets

Rear Cover Installed

Choate Block Features:

  • Assembled by OUR Professional Team in house
  • Rated at 550 HP, perfect for daily driving use, family haulers, some towing, Driven with mild supporting upgrades. (Stock injectors through Warren 175/30/Stage 1 or 2 KC turbo)
  • 5 year 100K warranty on our Daily driver builds with upgrade-able options
  • For more information on Choate Engineering Performance call us at 1-859-737-4966
