Carli Suspension 3" Commuter 2.0 Suspension System 2010-2020 Ram 2500 / 2010-2012 Ram 3500 6.7L Cummins

Thoroughbred Sku #: CLICS-DC20-10-D
Manufacturer Sku #: CS-DC20-10-D

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$1,965.00

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name:Carli Suspension 3" Commuter 2.0 Suspension System 2010-2020 Ram 2500 / 2010-2012 Ram 3500 6.7L Cummins
Manufacturer: Carli Suspension
Manufacturer Part #: CS-DC20-10-D
Thoroughbred Diesel Part #: CLICS-DC20-10-D
Fitment Notes: 2010-2020 Ram 2500 / 2010-2012 Ram 3500 6.7L Cummins

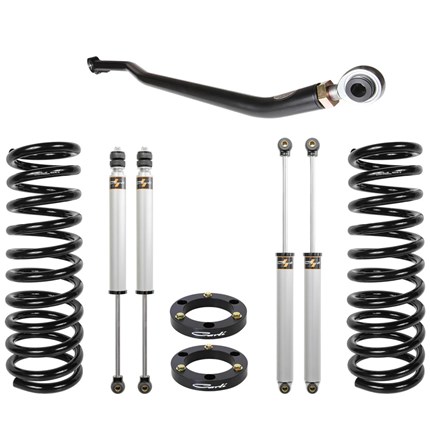

Carli Suspension CS-DC20-10-D 3 inch Commuter lift system for the Dodge Ram 2500 4wd diesel models is a premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires. It is perfect for Ram owners wanting the best on-road ride quality and are not planning on much off-roading.

Featured in this lift system are 3 inch lift front coil springs that have a slightly reduced multi rate for better ride comfort. Paired with the coil springs are Carli tuned Fox 2.0 Performance Series shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. An internal reservoir with 5/8 inch diameter hardened steel chrome plated shaft are also featured.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

In the rear you have the choice of no lift or upgrade to the Carli progressive add-a-pack to replace the factory overload spring to improve comfort, traction and handling.

Carli Suspension Features:

  • 3 inch front lift / 0 to 1.5 inch rear lift (optional rear lift)
  • Premium lift kit optimized for on-road ride quality
  • Front multi rate coil springs - with reduced multi rate to improve ride quality
  • Carli tuned Fox 2.0 IFP Front and Rear Shocks - 2" diameter aluminum body with internal reservoir
  • Designed to greatly improve ride quality for on-road use
  • Front Travel = 10" / Rear Travel = 11"
  • Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
  • Lifetime warranty on components, 1 year warranty on shocks
  • Allows use of up to 37 inch x 12.5 tires
  • For more information on Carli Suspension call us at 1-859-737-4966.
