Carli Suspension 6" UnChained 3.5 Radius Arm Suspension System 2003-2009 Ram 5.9L/6.7L Cummins

Product Name:Carli Suspension 6" UnChained 3.5 Radius Arm Suspension System 2003-2009 Ram 5.9L/6.7L Cummins
Manufacturer: Carli Suspension
Manufacturer Part #: CS-DUC35-6-03
Thoroughbred Diesel Part #: CLICS-DUC35-6-03
Fitment Notes: 2003-2009 Ram 5.9L/6.7L Cummins

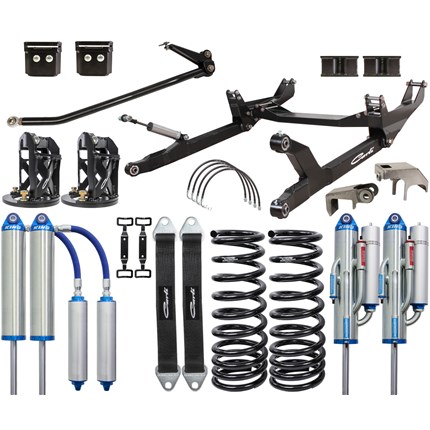

Carli Suspension CS-DUC35-6-03 6 inch Unchained lift system for the Dodge Ram 3500 4wd diesel models is an ultra premium lift kit that will lift your vehicle enough to fit up to 37 inch x 13.5 inch tires. Using custom tuned King 3.5" Remote Reservoir Shocks this kit is perfect for Ram owners wanting an excellent ride, but more importantly excellent off-roading capabilities. Made for the serious off-roaders!

Featured in this suspension system is a radius arm conversion kit. This removes the factory 4-link control arms and replaces them with longer, flatter links that cycle a more linear travel for superior ride quality and handling. The Carli radius arms will allow the axle to roll while not binding during suspension articulation. Mounting of the radius arms and brackets require no modification to the factory mounts (can be returned to stock). The arms themselves are extreme duty using gusseted, clam-shell structure with internal X bracing and use 3 inch Currie Johnny Joints.

Also included in this lift kit system are 6 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are King 3.5" Front Remote Reservoir Shocks and 3.0" Rear 4-Tube ByPass Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 3 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions. The rear shocks feature 4-Tube with far more botton-out resistance than non-bypass.

To keep the front axle centered properly an adjustable front track bar is included along with a drop bracket. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

In the rear Carli gives you a few choices. The base kit does not include a rear lift, but for a complete kit you will want to select between an add-a-pack with a block kit or Carli's awesome Full Progressive Leaf Springs.

Carli Suspension Features:

• 6 inch front lift / 0 to 4 inch rear lift (rear lift sold as an option, but required for a complete kit)
• Ultra-Premium lift kit optimized for all conditions: on-road road quality, towing and slow to high speed off-roading - For Serious Off-Roaders !
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• King 3.5 Remote Resi Front Shocks - Huge 3.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
• King 3.0 Remote Resi 4-Tube Bypass Shocks - 3.0" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished.
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Shocks are fully serviceable and rebuild-able
• Rear lift options, add-a-pack with a block kit or Carli's awesome Full Progressive Leaf Springs (see in options below)
• Radius Arm Conversion Kit, greatly improves handling and articulation
• Heavy Duty Radius arms use heavy gauge steel and are gusseted with clam-shell structure and internal X bracing, use 3 inch Currie Johnny Joints
• New front upper shock towers to accommodate extra large King 3.0 diameter shocks
• Front Travel = 12.5" / Rear Travel = 13" (w/rear springs upgrade)
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 37 inch x 13.5 tires
• For more information on Carli Suspension call us at 1-859-737-4966.
