Driven Diesel Fuel Bowl Delete Regulated Return System - 03-07 6.0L Ford Powerstroke

Thoroughbred Sku #: DVDDD-60FS-FBD-RRK-V3
Manufacturer Sku #: DD-60FS-FBD-RRK-V3

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:


$739.95

free-shipping-no-handling
FITMENT NOTE : Driven Diesel 6.0L Regulated Return Kits locate the regulator using a bracket mounted to the alternator. Some Aftermarket/High Amp alternators use a different housing that is not compatible with the Driven Diesel regulator bracket. Modifications to the Driven Diesel regulator bracket, or fabrication of a different mounting bracket, may be required in vehicles with oversized, aftermarket alternators.

Applications:

View All applications

VERIFY VEHICLE FIT
Add FASS / AirDog II Install Kit?


Add 6.0L Oil Filter Bowl without Fuel Filter Bowl?

Product Details

Product Name: Driven Diesel Fuel Bowl Delete Regulated Return System - 2003-2007 6.0L Ford Powerstroke
Manufacturer: Driven Diesel
Manufacturer Part #: DD-60FS-FBD-RRK-V3
Thoroughbred Diesel Part #: DVDDD-60FS-FBD-RRK-V3
Fitment Notes: 2003-2007 6.0L Ford Powerstroke

The Driven Diesel "Fuel Bowl Delete" Regulated Return Kit for the 03-07 6.0L Powerstroke Super Duty takes our popular "Standard" Regulated Return Kit to a new level. Just like our "Standard" version, this kit eliminates the "dead-head" stock fuel rails and provides adjustable fuel pressure capability to the Powerstroke fuel system. This is accomplished by tying the end of each fuel rail together through a Bypass Fuel Pressure Regulator. In addition, the "Bowl Delete" Regulated Return kit also eliminates the restrictive stock fuel filter bowl, improving fuel flow to the heads and giving back some valuable engine valley room...particularly if you are also deleting the factory oil filter bowl by using a Bullet Proof Diesel oil cooler kit (or similar).

The primary benefits of this kit are significantly increased fuel flow "through" the heads, ensuring that every fuel injector has adequate fuel quantity and pressure all the time. Additionally, any air that may develop in the fuel system can pass through the heads and out the regulators return port to the tank, instead of through the fuel injectors...resulting in increased injector life and less injector noise. If you are installing new injectors (stock or aftermarket), we HIGHLY RECOMMEND one of our Regulated Return kits to protect your investment and maximize your performance!

The most commonly reported results from the installation of an Driven Diesel Regulated Return Kit are:

• Improved Throttle Response
• Increased Power Output
• Increased Fuel Injector Life

IMPORTANT NOTES:

Additional Parts and Filtration REQUIRED when using this kit! See below for notes about specific common configurations:

If your truck is still using the stock oil filter bowl, installation of this kit requires either MODIFICATION to your current oil filter bowl (cutting off the fuel filter bowl) or REPLACEMENT of your oil filter bowl (with one that doesn't have a fuel filter bowl attached to it). We have provided a convenient option above to simply add the replacement bowl to your order.

If your truck is no longer using the stock oil filter bowl, as in the case of running a Bullet Proof Diesel Oil Cooler Kit with a remote oil filter, use of this fuel bowl delete kit will allow complete removal of the entire oil/fuel filter bowl assembly from your truck.

This kit was NOT designed to be used with the STOCK fuel pump. Since the stock fuel pump contains a fuel filter, and replacement fuel filter cartridges must be purchased in pairs with the secondary fuel filter, it doesn't make sense to delete the secondary fuel filter bowl while continuing to purchase the fuel filter cartridges for it. If you wish to retain your stock fuel pump, we recommend retaining the stock secondary filter and using our "Standard" 6.0L Regulated Return Kit (click HERE).

If using one of our Driven Diesel High Volume Fuel Delivery Kits, you should have everything you need to complete the connection to this Fuel Bowl Delete Regulated Return. This Bowl Delete Regulated Return kit was specifically designed with our High Volume Fuel Delivery Kits in mind.

If using a high pressure FASS or AIRDOG II, you will need our FASS / AIRDOG II INSTALL KIT.

If using any other pump and filter configuration, it is your responsibility to make sure that you have adequate PRE & POST PUMP fuel filtration and water separation, that your pump is supplying adequate fuel volume and that you have the right #6 AN connection for the bowl delete block inlet.


NOTE: WITH THE EXCEPTION OF ITEMS LISTED IN THE FUEL SYSTEM COMPONENTS SECTION OF OUR WEBSITE, WE DO NOT SELL INDIVIDUAL PIECES OF OUR FUEL SYSTEMS.

BIO-DIESEL NOTE: While we've taken steps to significantly improve the bio-diesel compatibilty of our fuel system kits, we still recommend bio concentrations of B20 or less. Higher concentrations can negatively impact the glues used to assemble most fuel filter elements.

* - We make every attempt possible to source and use as much U.S. made product/material as we possibly can...as long as doing so doesn't sacrifice the quality of the final product. Items marked with a * above have been modified or assembled by U.S. workers in a U.S. shop. Items marked with ** above were ENTIRELY produced from U.S. material, in U.S. shops, by U.S. workers. We can't always control where every component of one of our products comes from, but you count on us to keep looking for ways to increase the % of American Made parts and materials in the products that we produce.

CARB EO NUMBER: D-872-2 : DD-60FS-FBD-RRK-V3 : Driven Diesel Fuel Bowl Delete Regulated Return (version 3 only) : 2003-2007 6.0L F250/250
     (F450 & F550 NOT Included in D-872-2)

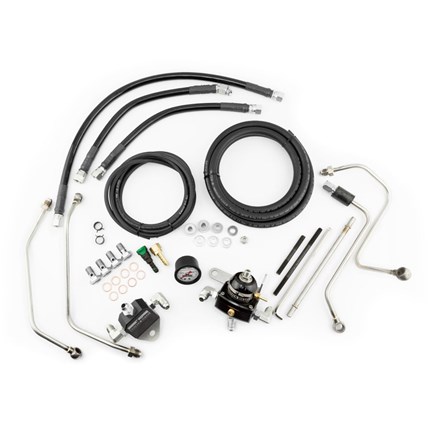

Driven Diesel Fuel Bowl Delete Regulated Return System Features:

  • Fits with Both Stock and Aftermarket Turbocharger Applications

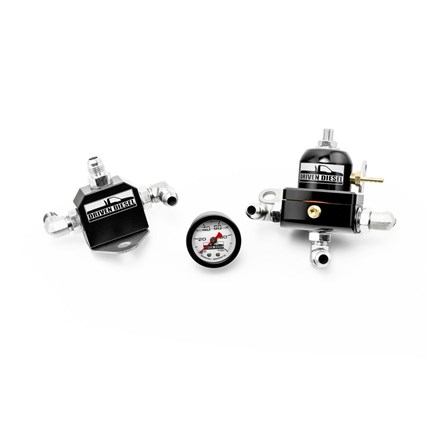

  • High Quality Fuelab Bypass Fuel Pressure Regulator **
  • Custom Machined Fuel Bowl Delete Block **
  • CNC Bent S.S. Hard Line Used in High Temperature and Tight Radius Locations *
  • High Quality 3/8" S.S. Braided Teflon Hoses with BLACK Protective Covering *
    (Black Covering Prevents Abrasion Damage to Hoses and Surrounding Parts)
  • Custom T-304 S.S. Regulator Mounting Bracket **
  • Custom Driven Diesel Liquid Filled Fuel Pressure Gauge
  • All Kits Feed Front Ports (away from Turbo Heat) and Return from Rear Ports
  • Complete Kit with All Necessary Parts and Detailed COLOR Instructions
  • NICEST REGULATED RETURN KIT AVAILABLE...PERIOD!
  • For more information on Driven Diesel call us at 1-859-737-4966

Reviews

  • Im looking at the Driven Diesel Fuel Bowl Delete Regulated Return for 2005 Excursion 6.0L. I already have an AirDog 4G lift Pump. I see that you recommend an Add On AirDogII Install Kit for $89.95 but I don’t see any info about what is included with this kit. Can you share info/photos?

    Will Ehlert | 12/11/2023

    Here is the link to the kit:

    https://www.thoroughbreddiesel.com/dd-fa-installkit-v4/

  • Do you guys have a video for the Driven Diesel Regulated Return w/Fuel Bowl Delete for '03 Ford 6.0?

    Joe Fritz | 5/14/2023

    Not at this time.
