Driven Diesel Regulated Return System (Fuel Bowl Delete) - 99-03 Ford 7.3L

Product Name: Driven Diesel Regulated Return System (Fuel Bowl Delete) - 1999-2003 Ford 7.3L
Manufacturer: Driven Diesel
Manufacturer Part #: DD-73FS-FBD-RRK-V3
Thoroughbred Diesel Part #: DVDDD-73FS-FBD-RRK-V3
Fitment Notes: 1999-2003 Ford Powerstroke 7.3L

EO# D-872-4

Upgrade your fuel system the right way....eliminate dead-headed stock fuel rails, adjustable fuel pressure, and other features that all equate to a better performing and more reliable truck.

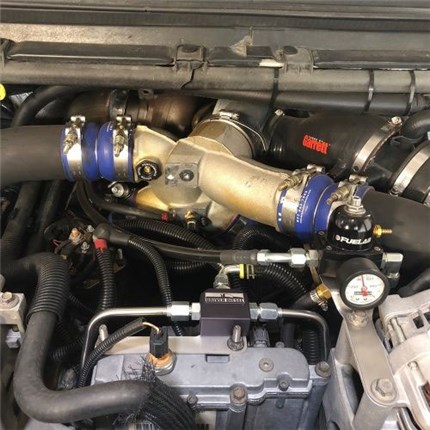

The Driven Diesel "Fuel Bowl Delete" Regulated Return Kit for the 99-03 Powerstroke Super Duty takes their popular "Standard" Regulated Return Kit to a new level. Just like the "Standard" version, this kit eliminates the "dead-head" stock fuel rails and provides adjustable fuel pressure capability to the Powerstroke fuel system. This is accomplished by tying the end of each fuel rail together through a Bypass Fuel Pressure Regulator. In addition, the "Bowl Delete" Regulated Return kit also eliminates the restrictive fuel filter bowl, improving fuel flow to the heads and giving back some valuable engine valley room.

The primary benefits of this kit are significantly increased fuel flow "through" the heads, eliminating fuel delivery and noise issues associated with the #8 injector and ensuring that every fuel injector has adequate fuel quantity and pressure all the time. Additionally, any air that may develop in the fuel system can pass through the heads and out the regulators return port to the tank, instead of through the fuel injectors...resulting in increased injector life and less injector noise. If you are installing new injectors (stock or aftermarket), we HIGHLY RECOMMEND a Regulated Return kit to protect your investment and maximize your performance!

NOTE: Additional Parts and Filtration Required when using this kit! See below for notes about specific common configurations:

• No Additional Accessories: As stated, you cannot install this kit as-is, but maybe you've sourced the parts elsewhere and have it covered. No problem, we give you this option

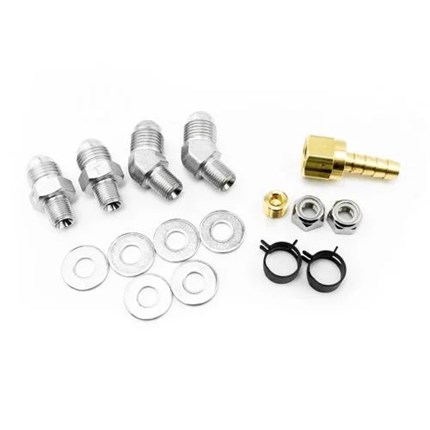

• Add FASS / AirDog Install Kit: For those running a FASS or AirDog pump, this installation kit will allow you to utilize your existing pump
• Add Pre/Post Fuel Filter Kit with Stock Fuel Pickup: For those running a stock fuel pump and stock or Stage 1/1.5 injectors and a factory style fuel pickup at the tank (not a sump), you'll want to add this installation kit.
• Add Pre/Post Fuel Filter Kit with Sump: For those running a stock fuel pump and stock or Stage 1/1.5 injectors and a tank mounted fuel sump (mounts to bottom of tank), you'll want to add this installation kit. The installation kit does not include the sump itself.
• If running Stage 2 or larger injectors, you will need to run one of Driven Diesel's High Performance Fuel Pump Kits. There are several configurations for these systems and are not an available option on this page, but available elsewhere on our website.

• Fits with Both Stock and Aftermarket Turbocharger Applications
• Compatible with both "Stealth" and "Terminator" Twin HPOP Setups
• Compatible with "Stealth" Billet Single HPOP Setups
• High Quality Fuelab Bypass Fuel Pressure Regulator
• Custom Machined Fuel Bowl Delete Block
• 3/8" CNC Bent S.S. Hard Line from Bowl Delete Block to Front Fuel Ports in Heads
• 3/8" CNC Bent S.S. Hard Line Used in High Temperature and Tight Radius Locations
• High Quality 3/8" S.S. Braided Teflon Hoses with BLACK Protective Covering (Black Covering Prevents Abrasion Damage to Hoses and Surrounding Parts)
• Custom T-304 S.S. Regulator Mounting Bracket
• Custom T-304 S.S. Fuel Bowl Delete Block Mounting Bracket
• Custom Driven Diesel Liquid Filled Fuel Pressure Gauge
• All Kits Feed Front Ports (away from Turbo Heat) and Return from Rear Ports
• Reuses OEM return line up the front of the engine for a faster installation compared to replacing. However, we offer an optional replacement return line for those that would like to replace due to corrosion or damage to their original return line. This optional return line will replace the ENTIRE return line from the engine back to the tank.
• Complete Kit with All Necessary Parts and Detailed COLOR Instructions
• NICEST REGULATED RETURN KIT AVAILABLE...PERIOD!
• For more information on Driven Diesel call us at 1-859-737-4966

The most commonly reported results from the installation of an Driven Diesel Regulated Return Kit are:

• Quieter Engine Operation
• Improved Throttle Response
• Increased Power Output
• Increased Fuel Economy
