Driven Diesel V2 COMPLETE OBS Electric Fuel System

Product Name:Driven Diesel V2 COMPLETE OBS Electric Fuel System
Manufacturer: Driven Diesel
Manufacturer Part #: DD-73FS-OBSFS-1P-V2
Thoroughbred Diesel Part #: DVDDD-73FS-OBSFS-1P-V2
Fitment Notes: 1994-1997 Ford Powerstroke | 1994-1997 Ford E Series Van Powerstroke

NEWLY UPDATED - This kit has received some major upgrades as of June of 2023. It now features our new Billet Filter Heads, which are 100% MADE IN THE USA and represent a significant upgrade in flow capability, configuration flexibility, quality, fit and finish. We also redesigned the mounting bracket numerous times, with a ton of vehicle specific test fitting, to deliver the most flexible and best fitting installation yet!

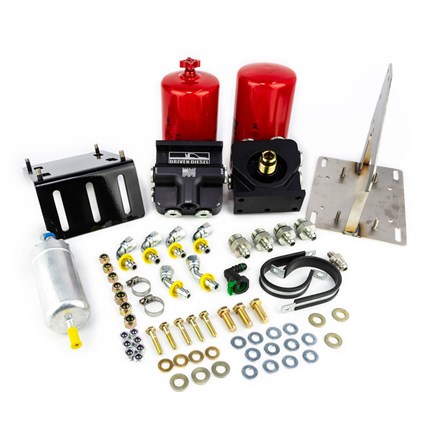

This Driven Diesel OBS Electric Fuel System Conversion kit for the 94-97 "OBS" 7.3L Powerstroke trucks is truly a COMPLETE fuel system solution. This package includes our proven OBS Regulated Return Kit along with the necessary electric fuel pump, fuel filters, hose, fittings and all necessary hardware...for a total "tank to engine" electric fuel system package. Fuel delivery is handled by the nearly bulletproof OEM Bosch fuel pump from the 99-03 Super Duty trucks, providing you with stellar reliability and enough fuel to supply up to about a 180cc injector (350-375hp). The result is a much more consistent fuel flow/pressure delivered to the injectors, a primed fuel system BEFORE starting the engine, support for moderately upgraded power levels as well as filters that are easier to service and less expensive to replace!

Denotes Items that are 100% MADE IN THE USA!

94-98 E-SERIES VAN OWNERS: This kit may NOT be a direct bolt-in for the van. Some customers have modified our kit or their van to use this product. While we don't believe that the modifications are significant, we are not aware of the specifics of the modifications and we can NOT provide support for fitting this kit to an E-Series Van. Thank You for your understanding in this matter.

IMPORTANT NOTES:

1. This kit RETAINS the fuel tank selector valve...you will still be able to use BOTH fuel tanks using the switch on the dash, like you always have.

2. While we have done everything we can to make this the most compact fuel pump and filter mount on the market at only 13" wide, there are a few applications where the mount will not fit inside the frame. If your truck doesn't have enough space inside the frame, this kit CAN be used outside the frame (especially after our extensive rework of the bracketry). The instructions will guide you for either an inside the frame or outside the frame mount.

* - We make every attempt possible to source and use as much U.S. made product/material as we possibly can...as long as doing so doesn't sacrifice the quality of the final product. Items marked with a * above have been modified or assembled by U.S. workers in a U.S. shop. Items marked with ** above were ENTIRELY produced from U.S. material, in U.S. shops, by U.S. workers. We can't always control where every component of one of our products comes from, but you count on us to keep looking for ways to increase the % of American Made parts and materials in the products that we produce.

Driven Features:

• Compatible with Both Stock and Aftermarket Turbochargers
• Compatible with "Terminator" Twin HPOP Setups

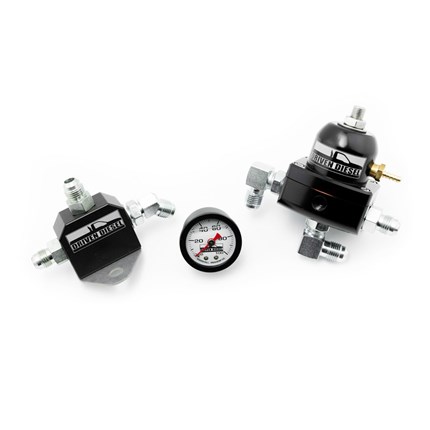

• High Quality Fuelab Bypass Fuel Pressure Regulator
• 3/8" CNC Bent S.S. Hard Line Used in High Temperature and Tight Radius Locations
• High Quality 3/8" S.S. Braided Teflon Hoses with BLACK Protective Covering
• OPTIONAL Driven Diesel S.S. High Flow Banjo Bolt Kit - RECOMMENDED
• Stainless Steel Regulator Mounting Bracket
• Driven Diesel Liquid Filled Fuel Pressure Gauge
• All Kits Feed Front Ports (away from Turbo Heat) and Return from Rear Ports
• Bosch Electric Fuel Pump (same pump as 99-03 Ford Super Duty)
• Can be Upgraded to "Dual Stock Pump" Setup at a later date (support for more HP)
• New Driven Diesel Mounting Bracket Assembly (Improved Fit and Flexibility)

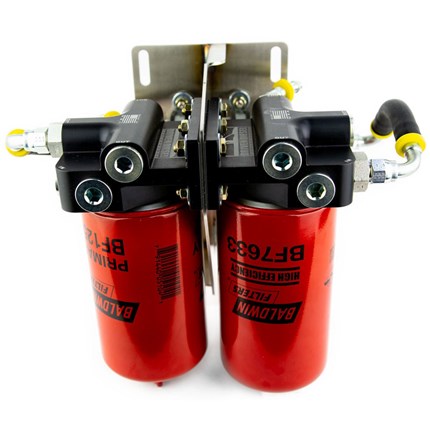

• NEW DRIVEN DIESEL Billet Pre & Post Pump Fuel Filter Heads
• Baldwin Pre & Post Pump Fuel Filter Elements
• Complete Pump/Filters Assembly is only 13" Wide!
• 20' of #6 Fuel Line and All Necessary Fittings

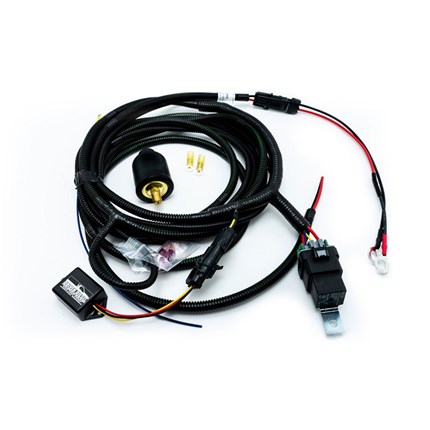

• Driven Diesel OBS Fuel Pump Wiring Harness w/Pump Controller
• All Necessary Hardware for Installation
• EO# D-872-3
• For more information on Driven Diesel call us at 1-859-737-4966
