Driven Diesel OBS Dual Pump Upgrade Kit (SUMP : CAST)

Thoroughbred Sku #: DVDDD-OBS-1P2P-SUMP-UPG-V2
Manufacturer Sku #: DD-OBS-1P2P-SUMP-UPG-V2

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Shipping Restrictions:
This part is NOT available to ship to the state of California.


$464.95

free-shipping-no-handling
NOTE: SUMP NOT INCLUDED - REQUIRES Existing OBSFS-1P (CAST Filter Head Version) Installation to Upgrade

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name:Driven Diesel OBS Dual Pump Upgrade Kit (SUMP : CAST) - 1994-1997 Ford Powerstroke 7.3L
Manufacturer: Driven Diesel
Manufacturer Part #: DD-OBS-1P2P-SUMP-UPG-V2
Thoroughbred Diesel Part #: DVDDD-OBS-1P2P-SUMP-UPG-V2
Fitment Notes: 1994-1997 Ford Powerstroke 7.3L

One of the advantages of using a Driven Diesel fuel system is "Upgradability". When we have multiple system configurations for a particular vehicle, we try to build them in a modular fashion so that our customers can easily move to an upgraded product if their needs change. One such case is the ability to upgrade our COMPLETE OBS ELECTRIC FUEL SYSTEM CONVERSION KIT (our "1P" Kit) into one of our DUAL BOSCH HIGH VOLUME FUEL DELIVERY KITS ("2P" Kit).

If you have ALREADY PURCHASED AND INSTALLED one of our 1P E-Fuel kits, the kit on this page can be used to transform your 1P kit into a 2P kit, which will support larger injectors and higher HP levels.

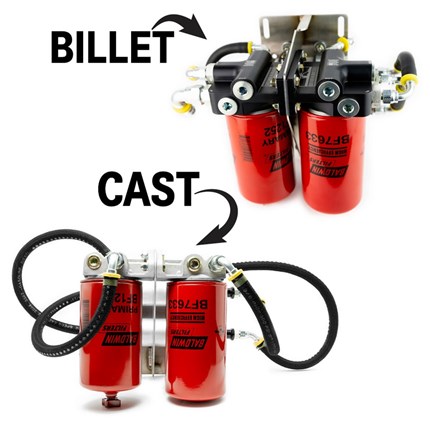

BEFORE PROCEEDING : You MUST identify which "1P" kit you currently have installed. In June of 2023, Driven Diesel started shipping ALL of our Dual Filter kits with our new Billet Fuel Filter Heads. Previous versions of the kit used commercially available Cast filter heads. The billet filter heads take entirely different fittings that are NOT INTERCHANGEABLE with the fittings that were used with the cast filter heads. LOOK AT YOUR CURRENT "1P" KIT CLOSELY and compare it to the photo above to make sure you are ordering the correct upgrade kit for your needs. We are not responsible for incorrectly ordered upgrade kits or any damage that may occur by installing incorrect fittings.

THIS KIT ONLY FITS 1P KITS WITH : CAST Filter Heads (Hastings Rough Cast Aluminum or WIX Shiny Cast Aluminum)

OBS FUEL TANK NOTICE : Dual Bosch Fuel Pumps CAN NOT be used with the OEM Fuel Tank Selector Valve! Use of this kit REQUIRES that the truck pickup and return all fuel to ONLY ONE TANK, bypassing the fuel tank selector valve completely. Attempting to use the fuel tank selector valve after upgrading to Dual Pumps WILL damage the pump(s) and void the warranty! Additional options for maintaining fuel tank capacity are discussed in the installation instructions.

If you need to order replacement fuel filters for this kit, you can find them in the "Related Products" section below. This kit uses the Baldwin BF1252 "Pre-Pump" Fuel Filter/Water Separator and the Baldwin BF7633 "Post Pump" Fuel Filter.

STOCK NOTICE : Each kit will be BUILT-TO-ORDER, once the order has been received. PLEASE ALLOW 3-5 BUSINESS DAYS FOR ORDER PROCESSING, KIT ASSEMBLY AND SHIPPING. If you have a need that is more urgent, please call our office and discuss it with a member of our staff to confirm that we can meet your deadline before ordering. Thank You for your patience and understanding!

Note: the switcher valve will no longer be used.

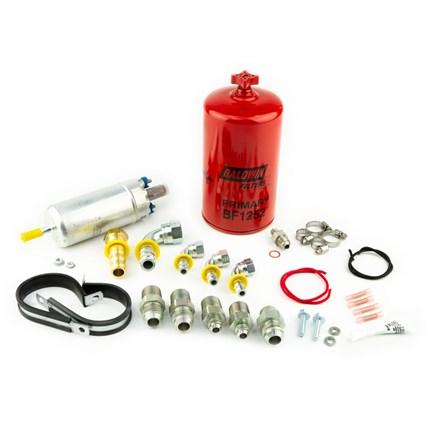

Driven Features:

  • Fuel Tank Sump Hardware (Sump NOT Included)
  • (1) Brand New Bosch OEM 7.3L Electric Fuel Pump
  • Pump Mounting and Electrical Hardware
  • (1) Baldwin BF1252 Pre-Filter (replaces BF1212)

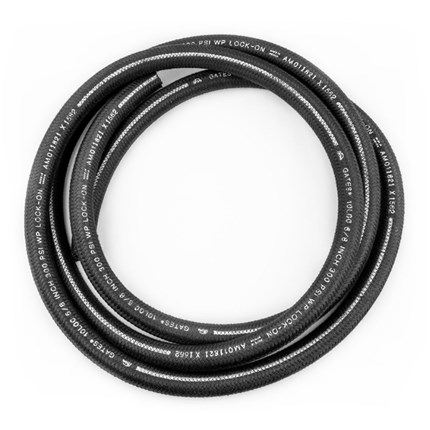

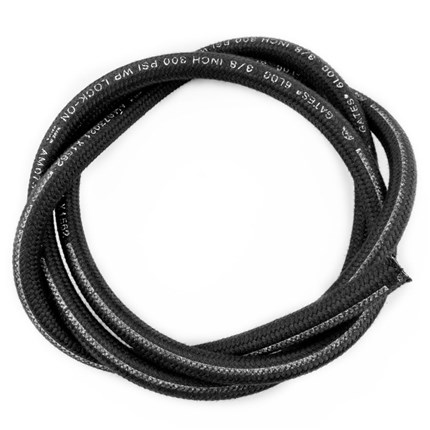

  • ALL Necessary Hose and Fittings
  • Can Support Up To 300cc Fuel Injectors
  • For more information on Driven Diesel call us at 1-859-737-4966
