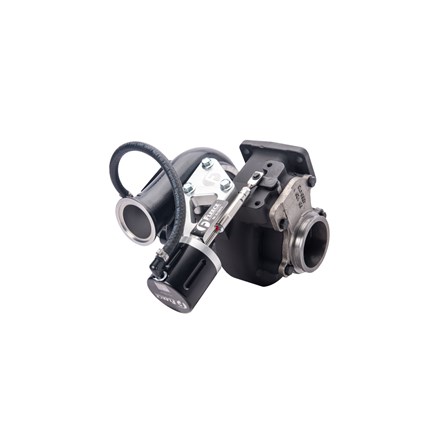

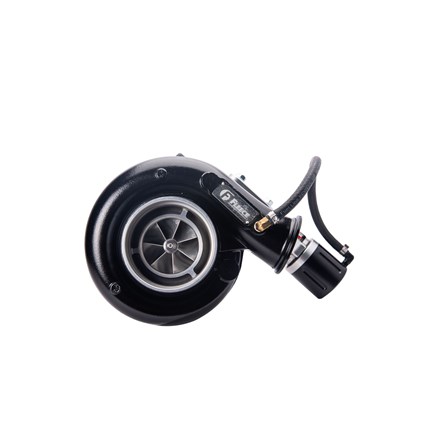

Fleece Cheetah Turbo - 94-02 Dodge 5.9L

Thoroughbred Sku #: FPE-HX35-63-FMW

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Shipping Restrictions:
This part is NOT available to ship to the state of California.


Quick Ship

$1,699.00

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
fleece

View More Products From

Fleece

Product Details

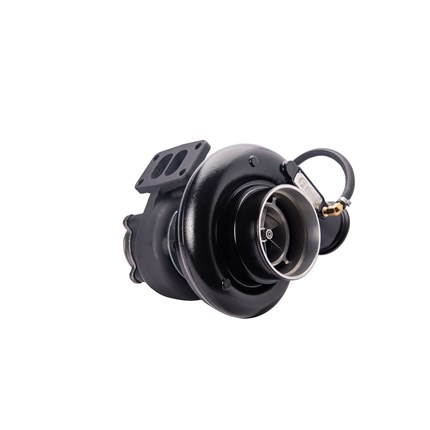

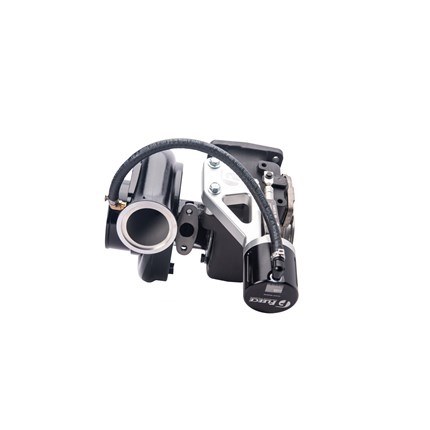

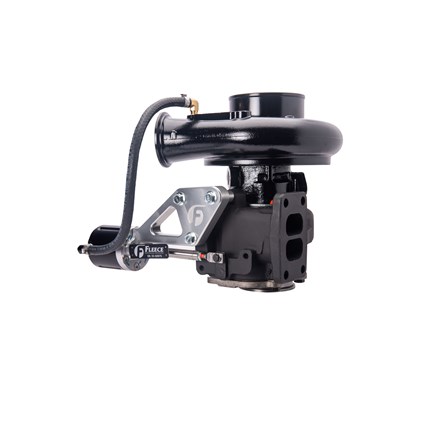

Product Name: Fleece Brand New 1994-2002 HX35 63mm FMW Holset Cheetah Turbocharger
Manufacturer: Fleece
Manufacturer Part #: FPE-HX35-63-FMW
Thoroughbred Diesel Part #: FPE-HX35-63-FMW
Fitment Notes: 1994-2002 Dodge Cummins

Fleece Performance Cheetah Turbochargers set the industry standard for power, quality, and reliability. The Cheetah series does not require an expensive adaptation kit, just bolt it on and go. Designed as a stock appearing, drop in replacement turbo capable of much more!. With our exclusive FMW compressor wheel and inconel turbine wheel technology, you’ll enjoy smooth throttle response and big top-end power.

Notes

  • For optimal performance, our HX35 is recommended for use with additional fueling upgrades. For MY1998.5-2002; higher output injectors and lift pump are required to achieve optimal performance.

Fleece Cheetah Turbocharger Features:

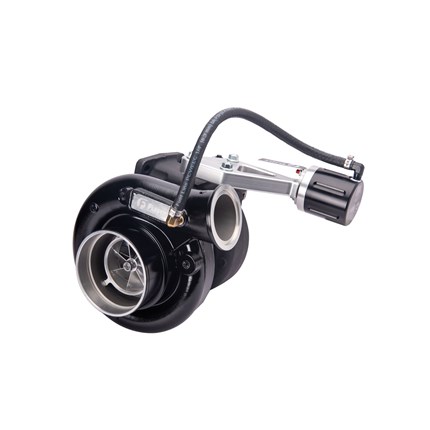

  • Fleece Performance exclusive 63mm FMW Compressor Wheel Technology

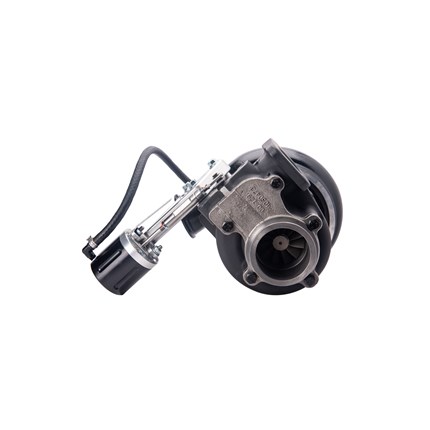

  • Fleece Performance exclusive wastegate preset to 40 psi
  • Capable of supporting vehicle modifications up to 650 RWHP
  • No core charge
  • 1 Year Limited Parts Warranty
  • For more information on Fleece call us at 1-859-737-4966.

Reviews

Submit a question

  • I have a 4 inch straight pipe will this fit directly up to my exhaust? Wanted to just make sure before purchase

    Kaleb | 10/22/2024

    Yes

  • Can i order this turbo with a larger exhaust outlet? I currently have a ebay Hx40 turbo with a true 4in outlet. I want this turbo but dont want to change my downpipe

    Joe Hester | 7/20/2024

    No. Fleece does not offer that option.

  • I got 100 horse injectors got an air dog fuel plate turned up a lot. Would this be a good turbo on my stock turbo I’m pushing 35 psi

    Jaxx | 6/13/2024

    Yes. What do you do with the truck?

  • Would this work well with 90hp injectors with fuel screw turned up a bit?

    Conner Fitzgerald | 2/27/2024

    No, automatic transmission.

  • Would this work on a 95 12v with 90 hp injectors with pump turned up a bit?

    Conner Fitzgerald | 2/22/2024

    Yes it will work.

  • Is it a 9 blade?

    Jake | 1/22/2024

    7 blade

  • I have 2001 dodge ram 2500, cummins, manual transmission. Will this specific turbo work for my vehicle

    Josh | 1/20/2024

    Yes, For optimal performance, our HX35 is recommended for use with additional fueling upgrades. For MY1998.5-2002; higher output injectors and lift pump are required to achieve optimal performance

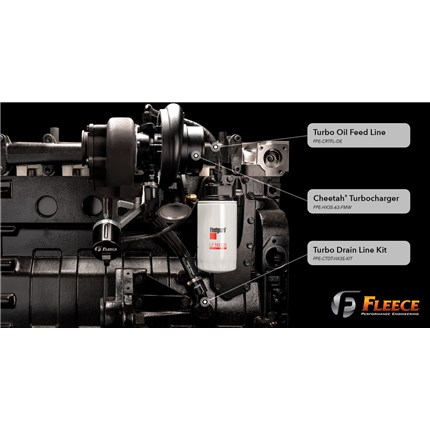

  • I have this turbo on my truck and the drain line is rusted and leaking. I bought a stock drain line but it does not fit/won’t clear the pipe from turbo to intercooler. What is the part number for the correct drain pipe for this turbo?

    Tanner | 10/15/2023

    Stock drain should work. You can go to a flexible oil drain line.

  • I’m running 150 hp injectors an Airdog lift pump edge juice with attitude without the pump tap and I belaive a vp44 that’s turned up some with this be a good turbo to install

    Chris | 7/14/2023

    We always ask this question: what do you do with the vehicle? Everyday driver, tow rig etc.

  • Wondering if I can easily push this turbo on 75hp injector tips,on a 98 automatic with no tuning

    Jason Plank | 4/20/2023

    We would suggest tuning also.

  • I have an '02 dodge auto. HY35 stock turbo. Would my exhaust elbow from the hy 35 bolt to this fleece turbo??

    Beau Bemis | 11/16/2022

    Yes

  • How much does it lower the exhaust temperatures compared to stock

    John Valerio | 9/28/2022

    Depending on the set-up, typically 100-150 degree’s.

  • Do these turbos have any type of warranty?

    Gavin Burkman | 6/22/2022

    2 year warranty

  • Is this turbo stocked in house at the Winchester location? Looking to purchase in a couple weeks and would rather pick up than ship if possible.

    Austin | 2/17/2022

    Typically yes, we do not have in stock at this time. 7-10 day lead right now.

  • I installed this on my truck. I have a quadzilla adrenaline tuner and 75hp injectors with a fleece performance head and hesd studs. And on level 10 I can only get about 36 37 pounds of boost out of it. I was expecting at least 40 or 45 with my bigger injectors. Do I need to adjust the wastegate when it's shipped?

    Gavin Burkman | 10/17/2021

    No adjustment required.

  • I have stock injectors with a hotrod vp from industrial injectors. Would that be enough to push it?

    Hayden Watts | 9/25/2021

    Are you running any tuning? 75-100 hp injectors would help.

  • Looking at the turbo and the Aurora 3000 for my 2001 dodge. Can you compare and contrast a little on the 2. I have an edge tuner and 50 hp injectors, I used this truck to tow and to haul around my truck bed camper. I’m going to get an new manifold and intake as well. Thanks 🙏🏻

    Matthew Bartkiewicz | 4/2/2021

    The fleece cheetah has a larger compressor wheel than the Aurora 3000. Max hp is higher. 3000 is rated to 500 rwhp, the cheetah is rated to 650 rwhp.

  • What would be the best injectors to match this turbo? 100hp or 125hp?

    Eric | 1/13/2021

    100 hp with a stock VP44.

  • Does this turbo come with the exhaust elbow

    Christopher Collingsworth | 12/4/2020

    No, you would reuse your exhaust elbow.

  • Does this turbo alone improve horsepower and torque ?

    John | 8/26/2020

    No, it will require power modifications to spool the turbo. Tuning , Injectors etc.

  • What size turbine is in this turbo?

    Kole | 2/6/2020

    High flow 65mm turbine wheel

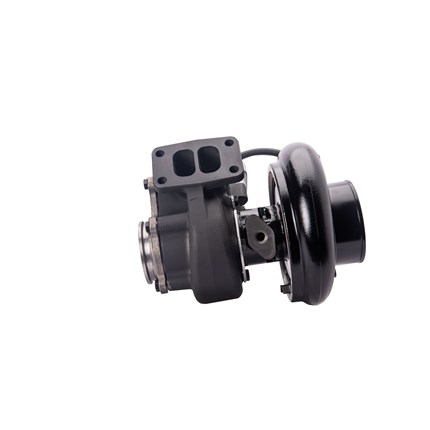

  • Just making sure is this a t3 flange?

    Lukas Leary | 11/12/2019

    Yes, this is a t3 flange turbo.

  • Does this turbo use hx35 down pipe or hx40?

    Taylor | 4/25/2019

    HX35.  This turbo is a direct drop in replacement for your stock turbo with stock sized exhaust housing.
