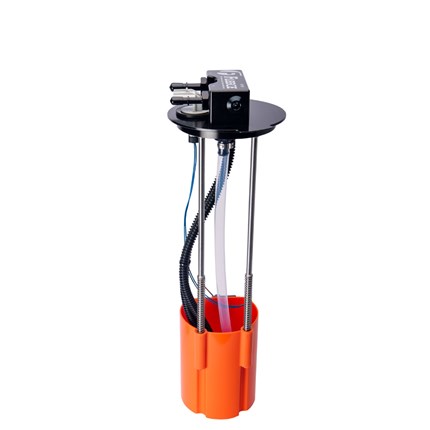

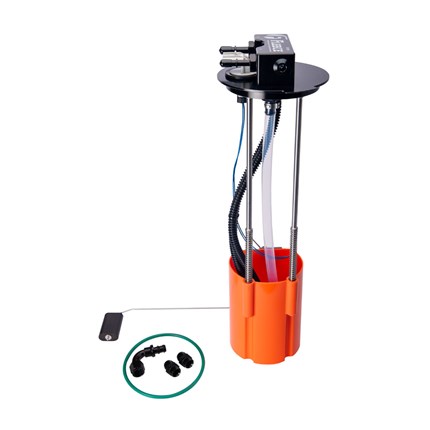

Fleece SureFlo Performance Sending Unit for 2020-2024 Dodge Ram with 50 gallon factory fuel tank

Product Name: Fleece SureFlo Performance Sending Unit for 2020-2024 Dodge Ram with 50 gallon factory fuel tank
Manufacturer: Fleece
Manufacturer Part #: FPE-SF-CUMM-2024-50
Thoroughbred Diesel Part #: FPE-SF-CUMM-2024-50
Fitment Notes: 2020-2024 Dodge Ram

PROBLEM: If you are running an aftermarket pump that is mounted external of the fuel tank, you will need to install a draw straw or drill your fuel tank to accommodate a sump.  Each of these has some pretty significant drawbacks including the ¼ tank issues that result in cavitation of the pump when you draw air into the fuel system.

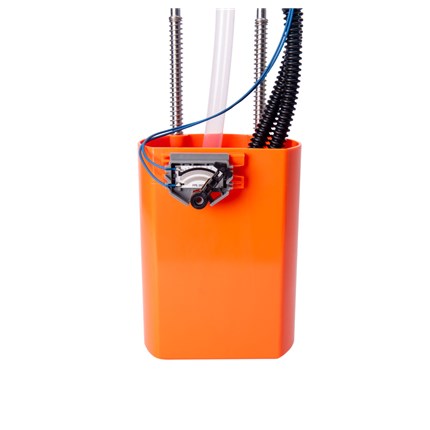

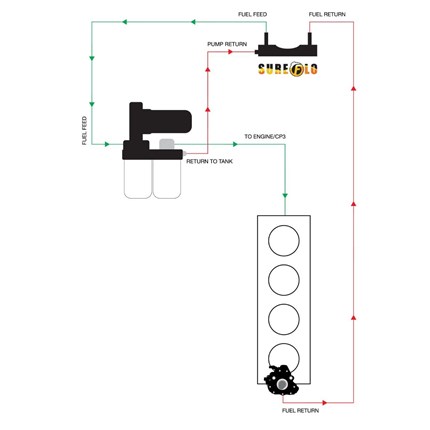

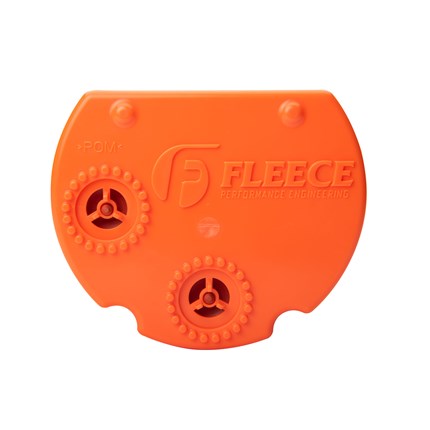

SOLUTION: SureFlo performance sending units are designed to work with aftermarket lift pumps and fits directly into your stock sending unit location. It features factory style quick disconnects to adapt your stock fuel lines at the tank, giving you the cleanest installation available, and requiring no cutting or drilling of the tank. SureFlo works by drawing fuel from, and returning fuel to, the bucket assembly at the base of the unit. This ensures you are always drawing fuel into your pump and not drawing air into the fuel system as well as eliminates the dreaded ¼ tank problems. The SureFlo bucket also incorporates one way check valves to allow fuel to easily flow in at lower levels.

Our SureFlo performance sending units are also a great alternative for trucks originally equipped without an in tank pump needing to repair a malfunctioning level sender or if you are simply looking to run your own custom fuel lines directly to the tank.

Application Notes

• *Not for use in cab and chassis applications
• **This sending is specifically intended for use with the factory installed 50-gallon fuel tank option. It is not for use with aftermarket oversized fuel tanks.  Reference our Resources page for fitment information.

Cross-Reference: 68490266AA used in 50 gallon tank 68534612AB

Fleece SureFlo Performance Sending Unit Features:

• OEM style fitment that requires no tank cutting or drilling
• New fuel level electronics and fuel float

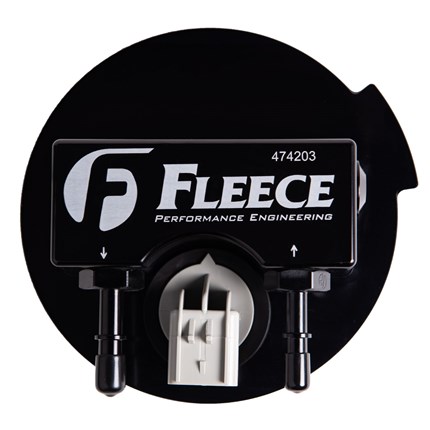

• Heavy duty billet aluminum cap
• Universal -8 AN ports for professionally plumbing a custom fuel setup
• New O-ring or flange seal
• 1 Year Limited Parts Warranty
• For more information on Fleece call us at 1-859-737-4966.
