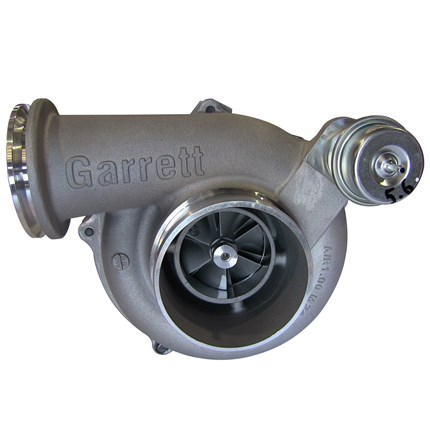

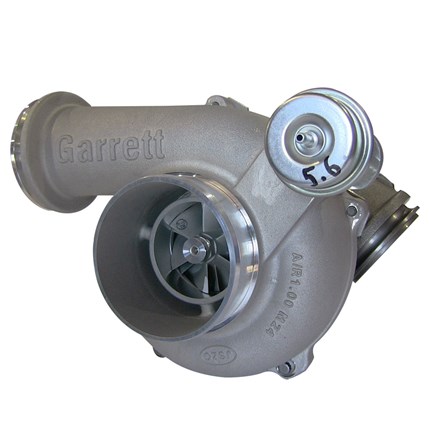

Garrett 739619-5004S Powermax Ball Bearing Turbocharger 7.3L For Ford 1999-03

Thoroughbred Sku #: GAR739619-5004S
Manufacturer Sku #: 739619-5004S

Item Options:

Shipping Restrictions:
This part is NOT available to ship to the state of California.


$2,065.58

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT
Add a Garrett Turbo Mounting Pedestal?


Add Up-Pipes?

Product Details

Product Name: Garrett GTP38R PowerMax Turbocharger Kit w/Ball Bearing & 1.0 A/R TH Standard
Manufacturer: Garrett
Manufacturer Part #: 739619-5004S
Thoroughbred Diesel Part #: GAR739619-5004S
Fitment Notes: Garrett GTP38R PowerMax Turbocharger Kit w/Ball Bearing & 1.0 A/R TH Standard - 99.5-03 Ford Powerstroke 7.3L - 739619-5004S

Garrett 739619-5004S 6.0L GTP38R PowerMax Turbocharger Kit w/ Ball Bearing & 1.0 A/R TH eliminates failures with higher boost levels caused by journal bearings by handling the shaft thrust. Higher horsepower is supported by the larger wheel found in Powermax turbochargers, as long as extra fueling is found, and the compressor wheel provides an additional 33% flow. The ported shroud housing gives a boost to the compressor flow to avoid surges. The turbocharger is ideal for anyone that needs more engine power for towing needs.

Product Specifications:
  • Compressor Wheel: 88mm
  • Turbine Wheel: 68mm
  • Improvement in Boost: 0-60 in 7.9 Seconds over 11.0 Seconds
  • Horsepower Increase at 290 WHP: 300 RPM
  • Torque Increase at 400 RPM: 50 lb ft
  • Any Modifications to Truck May Affect Improvements
  • Warranty: 1 Year or 100,000 Miles
Product Features:
  • Supports Higher Horsepower in Engine
  • Backpressure Reduced up to 200 ° Fahrenheit
  • Ball Bearing Handles High Shaft Thrust at Higher Boost Levels
  • Wheel Gives 33% More Flow over Stock
  • Compressor Flow Range Protected against Surges
  • Uses 1.0 A/R for a Free Flowing Exhaust
Product Notes:
  • Recommend Having Extra Fueling Upgrade Already in System, such as a Downloader, Programmer, Chip, Injectors, as well as Fuel Temp Gauge etc.
  • W/o Prior Modification to Fueling the Performance Turbo Cannot Provide Horsepower w/o Extra Fueling
  • Recommended Maximum Boost is 40 PSI
Turbo Fits:
  • 2000-2003 Ford Excursion 7.3L Powerstroke
  • 1999.5-2003 Ford F-250 7.3L Powerstroke
  • 1999.5-2003 Ford F-350 7.3L Powerstroke
This kit includes:
  • The 739619-5004S Turbocharger

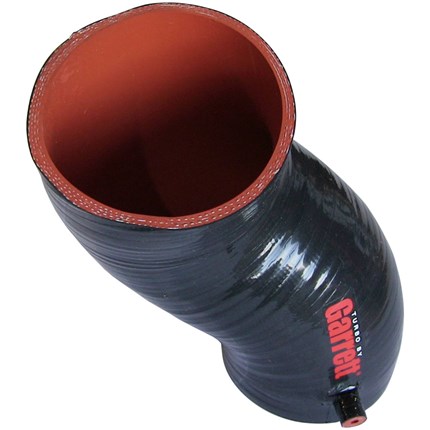

  • Matching 4" Intake Hose
  • 4" Hose Clamp
  • New Turbo-to-Pedestal O-Rings
  • Complete Installation Instructions

Check out the Garrett non-EBV pedestal that is a direct replacement Garrett genuine part.

Check out the Garrett high flow non EBV turbo outlet that can help eliminate the factory EBV, increasing airflow and reducing EGT's by up to 100 degrees.


Reviews

  • My 2001 7.3has 360,000 miles on it will this turbo have any effects the bottom end of the motor

    Ken Severson | 11/24/2021

    No.

  • How many psi does this turbo produce at 2000rpm?

    Jonathan Fereday | 1/20/2021

    The PSI will vary depending on vehicle modifications.

  • What is the turbine size on this turbo

    Devin Mercer | 3/4/2020

    68.00mm turbine wheel.

  • Can I use stock injectors with this turbo ?

    Jared | 9/14/2019

    Yes. You will need tuning that will command more fuel, to get the turbo to spool properly.
