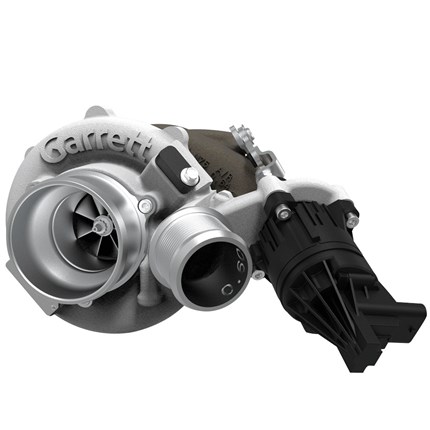

Garrett PowerMax Stage 2 Turbo (Reserve Rotation/Right Side) - 17-21 Ford F-150 3.5L EcoBoost - 901655-5001W

Thoroughbred Sku #: GAR901655-5001W
Manufacturer Sku #: 901655-5001W

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Shipping Restrictions:
This part is NOT available to ship to the state of California.


$1,736.97

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: Garrett PowerMax Stage 2 Turbo (Reserve Rotation/Right Side) - 2017-2021 Ford F-150 3.5L EcoBoost - 901655-5001W
Manufacturer: Garrett
Manufacturer Part #: 901655-5001W
Thoroughbred Diesel Part #: GAR901655-5001W
Fitment Notes: 2017-202 Ford F-150 3.5L EcoBoost

Part number: 901654-5001W (Standard Rotation) / 901655-5001W (Reverse Rotation) Supports up to 700 BHP*

The Garrett PowerMax™ Stage 2 turbocharger upgrade for the 2017+ F-150 and F-150 Raptor platform is engineered to increase engine performance capability while maintaining OEM installation specifications. This direct drop-in Stage 2 upgrade provides 54% more flow than OEM and will support up to 700+ BHP *. Improvements in compressor efficiency and flow can be attributed to the 60mm fully-machined compressor wheel. Turbine flow is increased by 52% compared to OEM with a 50mm Inconel turbine wheel and larger 0.45 A/R turbine housing. This turbocharger kit comes fully assembled, calibrated, and is outline interchangeable with the OE hardware to ensure a perfect fit every time. Contact your local authorized Garrett distributor for additional information and pricing.

WARNING: The maximum allowable turbocharger speed is 176krpm. The use of this product above 176krpm is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.

Garrett PowerMax Turbo Features:

  • Direct-fit Stage 2 upgrade (LH & RH Turbos)
  • Compressor housing inlet (2.75”) is larger than stock to allow for increased flow and optimized surge port
  • Adapter for stock inlet tube included with turbo kit
  • Turbo model: GT2260S
  • 700+ BHP capability *
  • Complete assembly with calibrated electric actuator
  • Billet compressor wheel with 54% increased flow
  • Inconel turbine wheel with 52% increased flow
  • Modern compressor and turbine wheel aero
  • Tuned ported shroud for optimal compressor surge and choke performance
  • Speed sensor port: use PN 781328-0003 (street kit) or 781328-0004 (pro kit)
  • Journal-bearing rotating group
  • For more information on Garrett call us at 1-859-737-4966

Reviews

  • CUSTOMER PURCHASED STAGE 2 FOR 19 RAPTOR , WE INSTALLED KIT BUT NOW WE ARE GETTING CODES FOR STUCK ACTUATORS, DOES THE CUSTOMER HAVE TO HAVE A PROGRAMMER FOR THESE TURBO'S

    EVERETT FORD | 11/18/2022

    This unit does not require any tuning. For peak performance,  Garrett does recommend getting the vehicle professionally tuned and obeying the max turbo speed limit of 176krpm.  They also recommend running their speed sensor kit which is sold separately to monitor turbo speed
