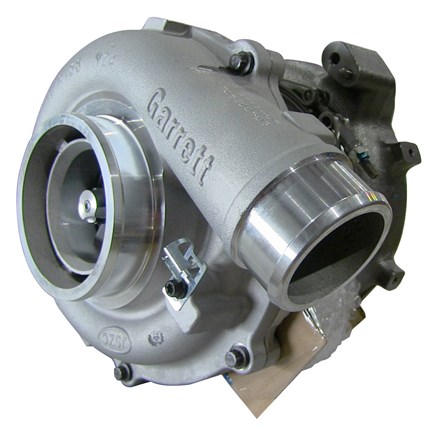

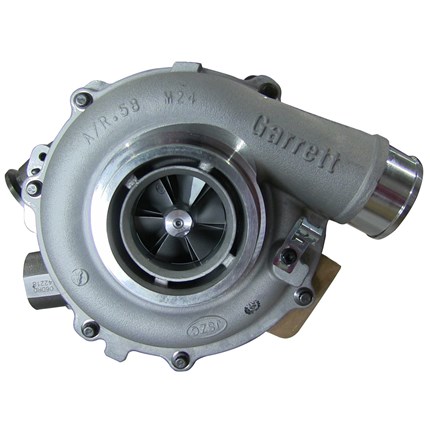

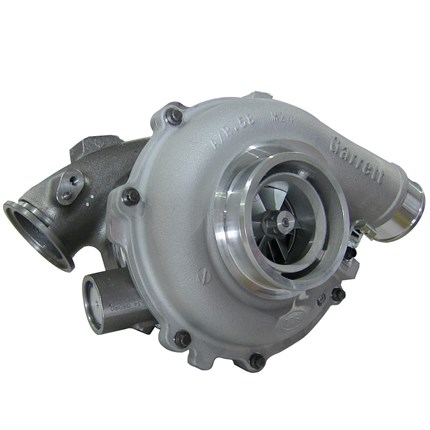

Garrett PowerMax Turbo - 04.5-07 Ford Powerstroke 6.0L

Thoroughbred Sku #: GAR772441-5002S
Manufacturer Sku #: 772441-5002S

Item Options:

Shipping Restrictions:
This part is NOT available to ship to the state of California.


$1,598.41

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT
Add a Turbo Oil Return Drain Tube?


Add a Oil Feed Line?


Add a Install Kit?

Product Details

Product Name: Garrett PowerMax Turbo - 04.5-07 Ford Powerstroke 6.0L
Manufacturer: Garrett
Manufacturer Part #: 772441-5002S
Thoroughbred Diesel Part #: GAR772441-5002S
Fitment Notes: 2004.5-2007 Ford Powerstroke 6.0L

GTP3788VA turbos features the Garrett patented Advanced Variable Nozzle Turbine (AVNTTM) design for increased compressor flow and boost response utilizing nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque. The patented integral electro-hydraulic actuation and proportional solenoid for infinitely variable control with larger compressor wheel increases maximum power range while keeping turbo speeds down for the same power output supports up to an additional 175 HP over stock with no sacrifice in drivability. Suitable as a performance upgrade or replacement of original equipment with a perfect fit each and every time.

Garrett Powermax Turbochargers Features:

  • Garrett GTP3788VA Turbos
  • Automatic or manual
  • Retains Factory Electronics
  • Drop-In Replacement
  • Supports An Additional 175HP
  • Requires Turbo Bolt / O-Ring Kit
  • Have questions on Garrett Powermax Turbochargers for your 2004-2007 Ford Powerstroke 6.0L diesel? Call us at 1-859-737-4966 if you need advice or help finding what you're looking for.

Reviews

  • Are these built off a 03 style turbo and do they have the 10 blade or 13.

    Brandon | 12/31/2022

    Powermax is a stage 1 turbo, 6 6 blades with taller fins

  • Does this turbo work on a 05 ford with a stock vgt turbo? Or no

    Austin colburn | 7/9/2020

    Yes. You will need fueling mod’s to support the turbo upgrade.

  • What is the MM size

    Joe | 4/14/2020

    Compressor Wheel Inducer: 63.5mm
    Compressor Wheel Exducer: 88mm
    Compressor Wheel Trim: 52
    Turbine Wheel Inducer: 72.5mm
    Turbine Wheel Exducer: 66.5mm
    Turbin Wheel Trim: 84
    Turbine Housing: .90
    Turbine Vanes: Altered for Higher Flow
