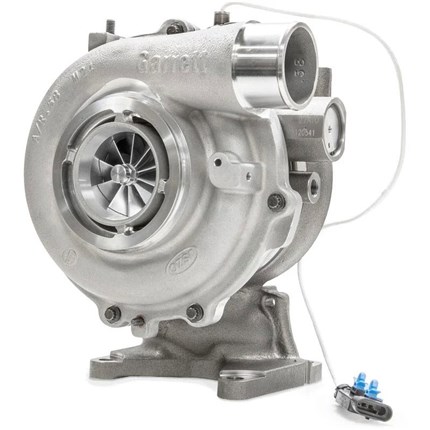

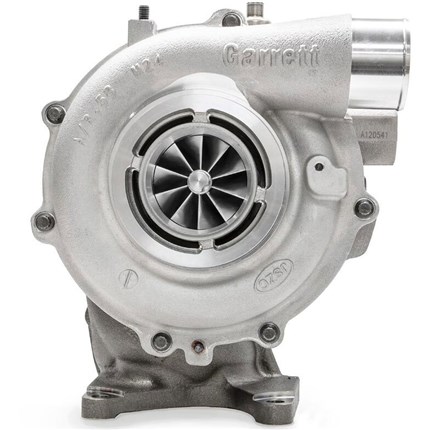

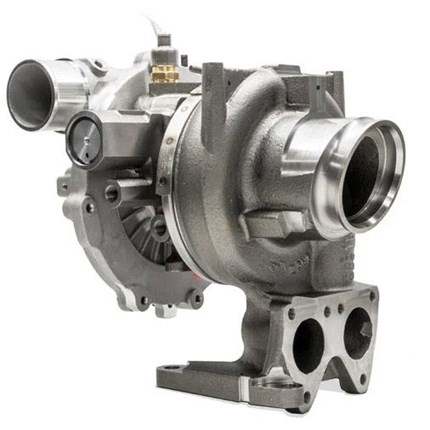

Garrett 886976-5004S PowerMax GT3788V Stage 1 Turbocharger - 2011-2016 GM 6.6L Duramax LML

Thoroughbred Sku #: GAR886976-5004S
Manufacturer Sku #: 886976-5004S

Item Options:

Shipping Restrictions:
This part is NOT available to ship to the state of California.


Quick Ship

$2,680.78

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: PowerMax GT3788V Stage 1 Turbocharger
Manufacturer: Garrett
Manufacturer Part #: 886976-5004S
Thoroughbred Diesel Part #: GAR886976-5004S
Fitment Notes: 2011-2016 GM Duramax LML 2500HD/3500HD

The Garrett 886976-5004S PowerMax GT3788V Stage 1 Turbocharger is a performance replacement for the factory turbo in your 2011-2016 GM 6.6L Duramax LML. This turbo is engineered to improve performance while maintaining factory quality fitment and installation.

Garrett PowerMax™ turbocharger upgrade for the Chevrolet and GMC 6.6L LML engine platform is engineered to increase engine performance while maintaining OEM installation specifications. This direct drop-in stage 1 upgrade provides 19% more flow than OEM and will support up to 600WHP*. Improvements in efficiency and flow can be attributed to the lightweight forged fully-machined compressor wheel. Boost response of this PowerMax turbocharger compared to OEM has not been tested. This turbocharger is outline interchangeable with the OE hardware to ensure a perfect fit every time.

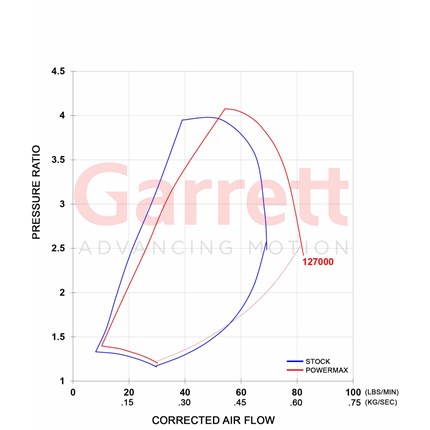

Note: Estimated Horsepower. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/ calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

Features:

  • 65mm Inducer
  • Supports Up To 600RWHP
  • 19% More Air Flow Than Stock
  Compressor Turbine
Turbo Part Number HP Inducer Exducer Trim A/R Inducer Exducer Trim A/R
886976-5004S 600 65mm
91mm 55 0.58 72mm 62mm 75 0.90
