HSP Diesel Max Air Flow Bundle - 01-04 Chevrolet/GMC

Thoroughbred Sku #: HSP183-HSP-X

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Select a Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

There are no vehicles for this group item.

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Shipping Restrictions:
This part is NOT available to ship to the state of California.

free-shipping-no-handling
NOTE: These products are made to order and can experience extended lead times.

Product Details

Featuring a mandrel-bent 4.5-inch intake tube for massive airflow gains, HSP's signature heat shield Box eliminating unwanted hot air entering the cold air intake. For every 1-degree increase in intake air temperature will result in a 3hp loss. This kit also features HSP's high flow turbo mouthpiece that outflows any ported mouthpiece on the market. It will also include HSP's hot side and cold side intercooler piping.

The factory intercooler tubing on 2003-2004 Duramax trucks is very restrictive and failure-prone. The factory intercooler tubing is only 2.25 inches in diameter and has a 90-degree boot at the intercooler that is prone to failure. With this routing there is a possibility of the hot side intercooler tube rubbing on the power steering line, causing the line to rub a hole in the tube resulting in a boost leak.

HSP's solution to this problem is to run the hot side tube directly into the intercooler using race-proven 5 layer silicone boots resulting in lower temperatures, better airflow, and added clearance in tight places.

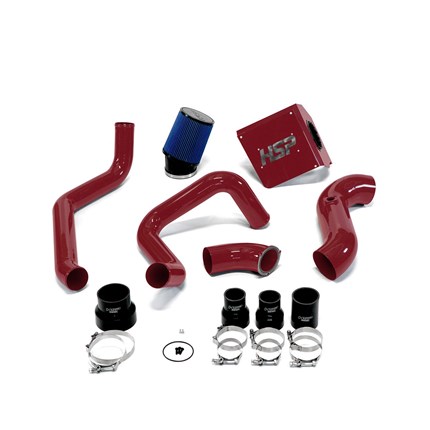

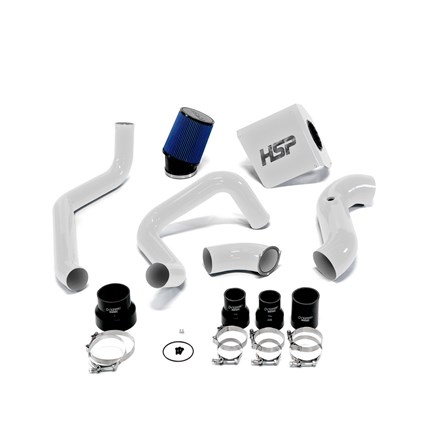

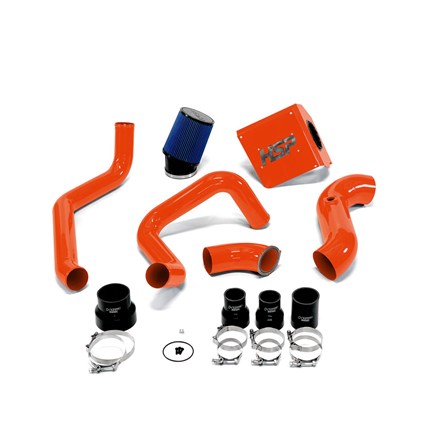

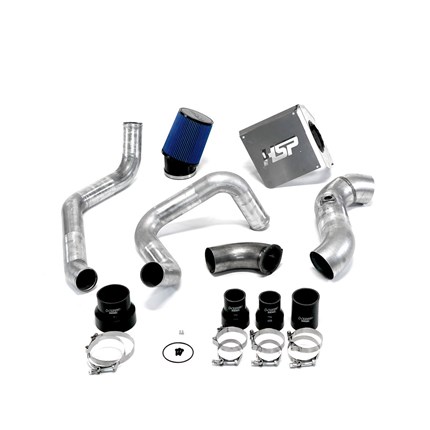

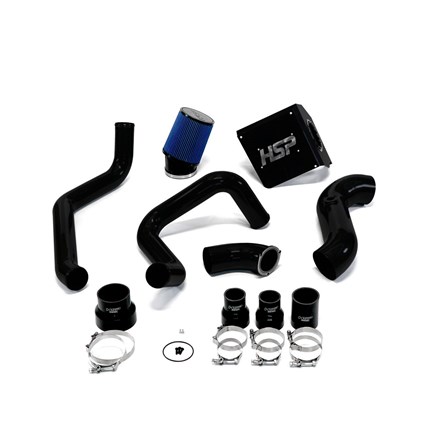

Included Components:

  • 1x 3 inch 4 inch Straight Boot
  • 4x 3 inch T-bolt Clamps
  • 1x 2.25 inch - 3 inch Reducer Boot
  • 1x 2.25 inch T-bolt Clamp
  • 1x 2.25 inch - 3 inch Reducer Boot
  • 1x 2.25 inch T-bolt Clamp
  • 2x M4x.7x10mm Bolt
  • 3x 10-32 x 3/8 inch Button Head Screws
  • 4x 1/8 inch Aluminum Rivet
  • 1x 3.5 inch - 4.5 inch Reducer Boot
  • 1x 3.5 inch T-Bolt Clamp
  • 1x 4.5 inch T-Bolt Clamp
  • 1x 4.5 inch Filter
  • 3x M6x1.0x20mm Button Head Screws
  • 1x Turbo Inlet O-Ring
  • 16 inch of Trim Seal


Details:

Race Proven 5 layer Silicone Boots
4.5 Inch Intake Tube
Made in the USA
Sold As a Kit


Compatible with:

LB7: 03-04 VIN Code 1
How do People Know Vin Code? Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck.
