Irate Diesel Standard Fuel System w/Regulated Return - 94-97 Ford OBS 7.3L

Thoroughbred Sku #: IDP-OBSFUEL-S

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Install Sheet - PDF:


$1,490.00

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: Irate Diesel Standard Fuel System w/Regulated Return
Manufacturer: Irate Diesel
Manufacturer Part #: IDP-OBSFUEL-S
Thoroughbred Diesel Part #: IDP-OBSFUEL-S
Fitment Notes: 1994-1997 Ford OBS 7.3L

Irate Diesel OBS Fuel System:

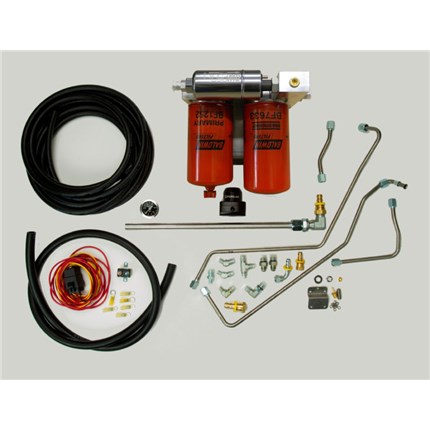

IDP 304ss mounting bracket, Walbro GSL392 pump, Parker hose from selector valve to motor back to selector valve, IDP regulated return system, wiring harness,  plug for valley and parker fittings. Our kit uses JIC fittings and includes all parts and pieces necessary for installation.

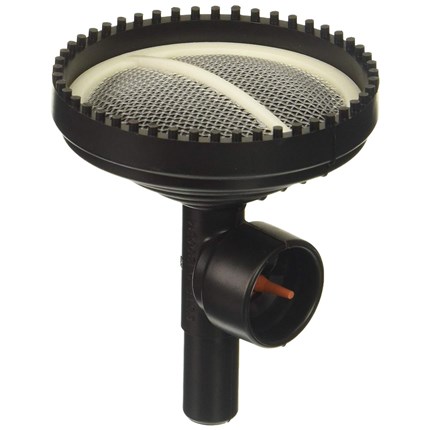

System installs from the selector valve forward so it still uses both tanks, and comes with everything needed to install including the hardline regulated return, this is a COMPLETE fuel system.  This system DELETES the fuel bowl and gets rid of the pesky leaks associated with the stock fuel bowl and has way better filtration.  This system will support anything from stock up to a 250/200 injector or 550-600RWHP.  If wanting to run larger, then pressure needs to be monitored to ensure proper pressures are maintained.   (Draw straw pictured is not used on the OBS system)

***Comes with stainless steel hardline fuel bowl delete  Regulated return kit!!

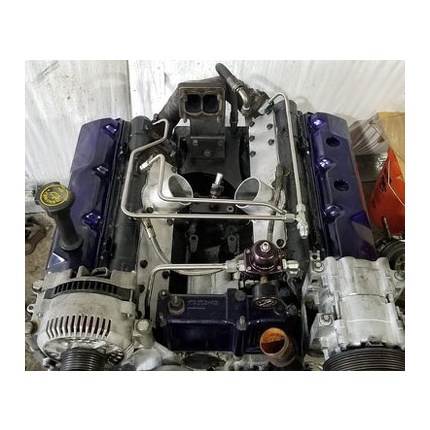

***Turbo will have to be removed/slid over to get the drivers side higher flowing fitting in the head on the 94-97 trucks.

This kit will NOT work on the E series van without modification!

Irate Diesel Fuel System Features:

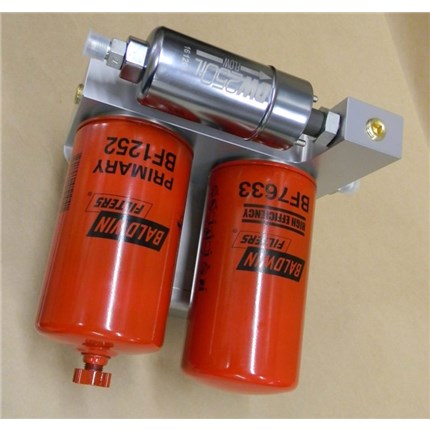

  • NEW BILLET FILTER AND PUMP BASE!
  • This is the system that is recommended for all injectors, and will support the largest of injectors made for the 7.3L!! It will also work with stock injectors if you are upgrading later!
  • In some instances you may have to remove the up-pipe on the drivers side to fit the new supplied 90* fitting.
  • Walbro pump comes with a ONE year warranty!
  • For more information on Irate Diesel call us at 1-859-737-4966.
