KC Turbos KC38r Stage 3 Dual Ball Bearing Turbo - Late 1999-2003 Ford Powerstroke 7.3L - .84 A/R (Special Cover)

Thoroughbred Sku #: KCT300301
Manufacturer Sku #: 300301

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Shipping Restrictions:
This part is NOT available to ship to the state of California.


$2,476.00

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name:KC Turbos KC38r Stage 3 Dual Ball Bearing Turbo - Late 1999-2003 Ford Powerstroke 7.3L - .84 A/R (Special Cover)
Manufacturer: KC Turbos
Manufacturer Part #: 300301
Thoroughbred Diesel Part #: KCT300301
Fitment Notes: Late 1999-2003 Ford Powerstroke 7.3L

That’s right, the Original KC38r is back and better than ever! We have spent several years on research and development modifying and battle testing our original ball bearings so that we could bring you the best and most reliable ball bearing design KC Turbos has ever produced.

The new KC38r compressor wheel is drastically different, it is a larger 7x7 KC300x Gen 2 compressor wheel. This newly redesigned compressor wheel is based on the 366SX-E compressor wheel and shares a similar blade profile except it is reverse rotation.

The Turbine Wheel also takes design notes from the 366SX-E but its larger diameter offers more flow and increased strength through the introduction of thicker blades, a thicker hub, and a thicker rear webbing making it much less prone to fatigue and wheel burst. The redesigned dual ball bearing center housing has been modified to accept the turbine’s increased shaft thickness from a 6.4mm on the original to 7.5mm for increased strength and longevity.

This dual ball bearing turbo will surprise you at how much it will wake up your 7.3! We have torture tested it for longevity, proven its capability on the dyno, and at the Race Track. For dedicated tow rigs and daily drivers, the .84 A/R Housing provides a quicker spool and cooler EGT's below 3000 RPMs.

KC Turbos KC38r Stage 3 Dual Ball Bearing Turbo Features:

  • Upgraded Gen 2 Dual Ball Bearing Center Housing
  • 100% drop in turbo (no modifications required)
  • 66mm 7x7 SXE style Gen 2 compressor wheel with extended tip technology
  • 73mm SXE style Gen 2 turbine wheel
  • 4" ported compressor housing with drilled anti-surge for high flow
  • High Flow Non-EBPV outlet flange
  • Adjustable Wastegate Actuator for increased boost control
  • Comes with all gaskets and o-rings to install

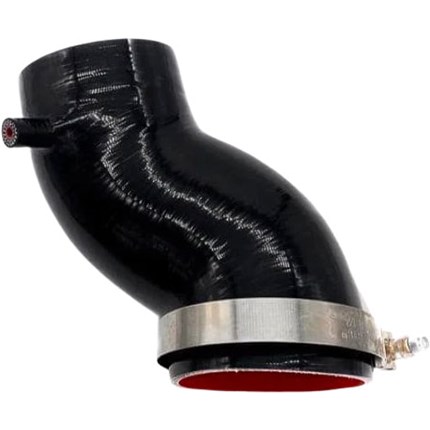

  • Comes with new 4" intake boot
  • For more information on KC Turbos call us at 1-859-737-4966
