Mishimoto Intercooler w/Pipe & Boot Kit - BLACK - 08-10 Ford Powerstroke 6.4L

Thoroughbred Sku #: MIMMMINT-F2D-08KBK
Manufacturer Sku #: MMINT-F2D-08KBK

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Prop 65:
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov


$1,451.95

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT

Product Details

Product Name: Intercooler w/Pipe & Boot Kit - BLACK
Manufacturer: Mishimoto
Manufacturer Part #: MMINT-F2D-08KBK
Thoroughbred Diesel Part #: MIMMMINT-F2D-08KBK
Fitment Notes: 2008-2010 Ford Powerstroke 6.4L

Mishimoto has released a performance intercooler kit for the 2008-2010 Ford 6.4L Powerstroke. This kit includes everything you need to improve airflow, substantially decrease air-charge temperatures, reduce EGTs, and support your truck at any power level. The first key component is the Mishimoto Cold-Side Intercooler Pipe; our engineers have maximized airflow by eliminating restrictive bends, allowing for a smooth and unimpeded airflow. The pipe is constructed of mandrel bent aluminum polished to a mirror finish. This kit includes Mishimoto Silicone Boots with DuraCore™ technology and Mishimoto Constant Tension T-bolt Clamps for accurate and consistent holding power. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto Silicone Diesel Boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. This package is rounded out with the Mishimoto intercooler featuring a significant increase in core volume, extremely durable cast aluminum end tanks, and a bar-and-plate core, all designed to provide cool, dense air to your engine. Our intercooler reduces pressure drop, which results in an overall increase in engine efficiency. All the components in this kit are engineered to last, just like your truck. Offered with either a black or silver core, the Mishimoto 6.4L Powerstroke Intercooler Kit, like all of our Powerstroke performance parts comes with the Mishimoto Lifetime Warranty.

Features:

  • Direct fit for the 2008–2010 Ford 6.4L Powerstroke
  • Bar-and-plate construction with cast aluminum end tanks
  • End tanks strategically designed for optimal airflow
  • Mandrel-bent polished aluminum cold-side intercooler pipe
  • Reduces turbo stress and extends life
  • Reduce pressure drop and increase cooling and power
  • DuraCore™ technology provides superior resistance to heat, pressure, fuel, and oil
  • Includes high-quality constant tension T-bolt clamps
  • Sleek Silver or Stealth Black intercooler options available
  • Provides improved airflow and lowers intake air temperatures
  • Mishimoto Lifetime Warranty

Tech Specs:

  • INSTALLATION TORQUE SPECS 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps.
    These clamps have an operating range of 18-35 in-lbs (2-4N*M).
    Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
  • PIPE DIAMETER 3"
  • CONSTANT TENSION T-BOLT CLAMPS SPECS (4) 3.25" Constant-Tension T-Bolt Clamps
  • SILICONE BOOTS WITH DURACORE SPECS Boot 1: 3.00"
    Boot 2: 3.00"
  • CORE THICKNESS 2.76"
  • TANK WALL THICKNESS 4 mm
  • OUTLET Quick Disconnect
  • CORE LENGTH 25.51"
  • CORE HEIGHT 23.11"
  • CORE WIDTH 2.76"
  • INLET 3.23"
  • CORE SIZE 25.51" x 23.11"
  • OVERALL WIDTH 5.1"
  • OVERALL HEIGHT 31.9"
  • OVERALL LENGTH 28.9"
  • CONSTRUCTION Bar-and-Plate

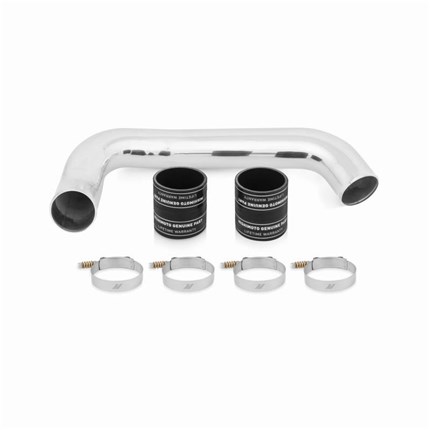

Includes:

  • (1) Mishimoto Intercooler
  • (1) Aluminum Intercooler Pipe

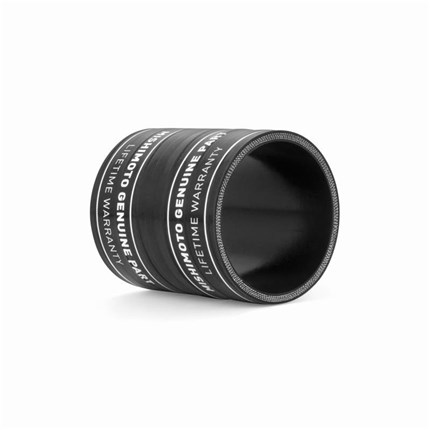

  • (2) Silicone Boots with DuraCore™ Technology
  • (4) Constant Tension T-Bolt Clamps
  • (2) Aluminum Mishimoto M Logo Badges
  • Mishimoto Lifetime Warranty

Notes: This product requires minor trimming of the upper radiator support for installation.
