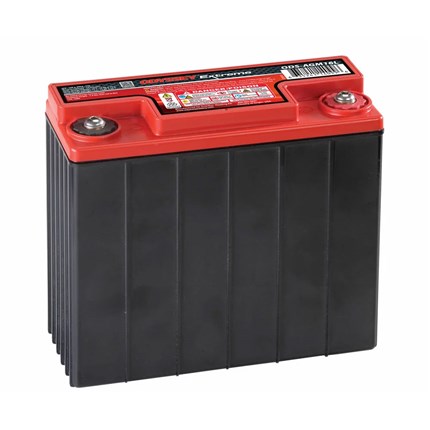

Odyssey Powersport 12V Battery Model ODS-AGM16L (PC680)

Product Name: Odyssey Powersport 12V Battery Model ODS-AGM16L (PC680)
Manufacturer: Odyssey
Manufacturer Part #: ODS-AGM16L
Thoroughbred Diesel Part #: ODYODS-AGM16L
Fitment Notes: Universal

Powersport vehicles need a powerful battery that’s built to take the constant pounding that comes with the territory, whether it’s is on land, sea, or snow.

The ODYSSEY battery can handle it. Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. And the pure lead plates mean more power-twice the overall power and three times the life of conventional batteries-up to 400 cycles at 80% depth of discharge!

Odyssey Battery Features:

• Voltage: 12v - PHCA: 520
• Cold Cranking Amps (CCA): 170 - HCA: 350
• Reserve Capacity in Minutes: 24
• Negative Terminal Location: Left Side
• Terminal: Internal threaded brass terminals with M6 SS bolts
• For more information on Odyssey call us at 1-859-737-4966

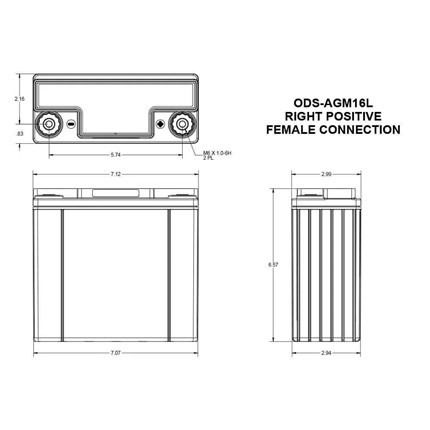

Dimensions

• Length 7.20 in
• Width 3.00 in
• Height (terminals included) 6.40 in
• Height (container) 6.60 in
• Weight 15.40 lbs

Specifications

• Voltage 12V
• Pulse (5 second) Hot Cranking Amps (PHCA) 520A
• Cold Cranking Amps (CCA) 170A
• HCA 350A
• MCA 280A
• 20Hr Nominal Capacity (Ah) 16Ah
• 10Hr Nominal Capacity (Ah) 16Ah
• Reserve Capacity Minutes 24 mins
• Terminal M6 Receptacle
• Torque Spec in-lbs (Nm max) 50 (5.6)
• Internal Resistance (mΩ) 7
• Short Circuit (A) 1800A
• Recommended Min. Charging Current (A) 1.6A
• Operating Temperature Range -40°F / -40°C to 113°F / +45°C
• Optimum Storage Temperature 68°F / +20°C
