Pacbrake PRXB Exhaust Brakes - Direct Mount

Thoroughbred Sku #: PACPRXBEXHAUSTBRAKE

Select a Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

There are no vehicles for this group item.

$819.84 - $1,697.15

free-shipping-no-handling

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
pacbrake

View More Products From

Pacbrake

Product Details

Product Name: PRXB Exhaust Brake DirectMount
Manufacturer: Pacbrake

WHAT IS A PRXB?

A PRXB is a Pressure Regulated Exhaust Brake that offers the highest retarding power for the lowest price available. Although the PRXB's retarding power is comparable to that of a compression release engine brake, the manufacturing and installation costs are significantly less.

HOW IS IT DIFFERENT FROM A STANDARD FIXED ORIFICE EXHAUST BRAKE?

Conventional exhaust brakes experience a reduced exhaust backpressure at low engine speeds, resulting in an unnecessary loss of braking power. Pacbrake's innovative PRXB addresses this issue with a patented wastegate design that regulates exhaust backpressure as engine speed changes. The valve maintains near constant engine backpressure throughout the entire RPM range, providing maximum exhaust braking power at all times.

PRXB offers the highest braking power to lowest price ratio available. Pacbrake's flagship product is the unquestioned leader in the supplemental brake industry. It has changed the way people think about exhaust brakes by providing performance, safety and durability that is unmatched by any other exhaust brake on the market.

Controlled by a master ON/OFF switch, Pacbrake's exhaust brakes provide whisper quiet supplemental braking that allows service brakes to be used much less, ultimately saving money. They have the ability to be left on all the time, making it ideal for in-city driving or for steep, downhill grades. This product pays for itself as less wear on the brake pads means fewer brake jobs.

Features:

  • The spring controlled pressure regulated mechanism on the exhaust brakes protects against engine overpressure
  • Pacbrake exhaust brakes are designed specifically for individual engine applications to maximize performance and reliability. They are not a one size fits all compromise
  • When the brake is deactivated, exhaust flow is unrestricted and won't interfere with power output Patented 90 degree Non-contacting Butterfly Valve is specially engineered to maximise backpressure while preventing seizing
  • The brakes use industry exclusive Arcor nitride coating on housing and components which increases resistance to wear and corrosion while strengthening the exhaust brake and adding lubricity
  • Precision machined surfaces on the exhaust brake eliminate the need for troublesome gaskets and risk of leakage
  • The brakes have hard anodized aluminum and stainless steel body and shaft with high performance seals
  • Maintenance is as simple as using the exhaust brake on a regular basis and periodically applying Superlube (Pacbrake's multi-purpose heat resistant lubricant which helps to prevent rust and corrosion)
  • Withstands extremely high exhaust temperatures
  • Compliant with latest emission regulations
  • Severe Duty & military approved
PRXB BenefiTs
  • Delivers the strongest braking horsepower, greatest speed reductions & shortest stopping distances possible without the use of service brakes
  • Maintains optimum retarding performance by maximizing the exhaust backpressure throughout the entire operating RPM range
  • Delivers maximum exhaust pressure (braking) as low as 1200 RPM through to the maximum allowable engine RPM
  • Provides increased performance and peace of mind with technology that protects the engine from the potential of overpressure

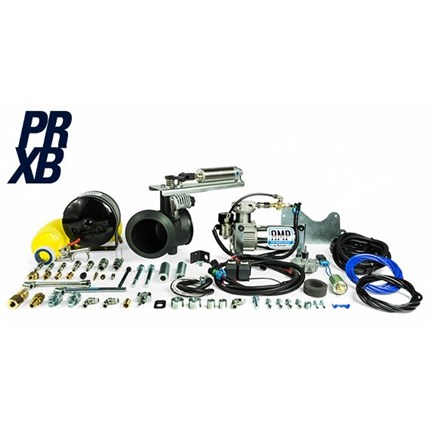

Kit Contents

Every PRXB Automotive Kit comes with a everything required for a complete installation:
  • PRXB Kits Include
  • PRXB Exhaust Brake
  • Controller (when required for application)
  • AMP Onboard Air Kit, which includes:
    - HP325 Series Compressor
    - 1/2 Gal Air Tank
    - 25ft Coiled Air Hose
    - Air Accessories & Fittings Kit

Reviews

Submit a question

  • If I turn on my exhaust brake when my truck is first started, will it help to warm my engine sooner in cold weather?

    Jim Hader | 5/21/2019

    Yes! This is a bonus feature of an exhaust brake. It creates a restriction at idle that puts a slight load on the engine, causing the engine to warm up faster.

  • My exhaust brake comes on at a idle, why is that?

    Robbie Maines | 5/21/2019

    This is a normal operation if the engine is not warm. This allows the engine to warm up sooner by increasing engine load at idle. This feature can be turned off by cycling the toggle switch 8 times.

  • How can I tell how much back pressure my exhaust brake is producing?

    Wade Harris | 5/21/2019

    Every Pacbrake exhaust brake has a 1/8" NPT port tapped into the side of the exhaust brake housing. It has a port plug threaded into it from the factory. Remove the plug and install a back pressure gauge to this port. Go for a test drive and observe the backpressure readings.

  • What type of maintenance is needed on my exhaust brake?

    Adam Clark | 5/21/2019

    The exhaust brake requires very little maintenance. If it is switched off the brake will go through an "exercise cycle" which activates the brake 3x at startup. This is to ensure it does not stick or seize up with inactive use. Also, it is recommended to apply a few drops of Pacbrake Super Lube to all pivot points every 3-6 months.

  • Can I change the spring in my PRXB exhaust brake to a stronger one and will it make my exhaust brake harder?

    Jeremy Mineer | 5/21/2019

    No, you cannot. This spring is specifically calibrated and adjusted and made tamperproof on the assembly line. This is done to ensure each application is matched to the maximum engine backpressure and will not cause any damage. Tampering with the springs will void the warranty and potentially cause severe engine damage.

  • When should a turbo mount with a cast adapter be used?

    James Holder | 5/21/2019

    This application is the preferred option for vehicles with a tight 90° bent header pipe post turbocharger. The cast adapter is constructed from cast iron with machined mating surfaces on both ends, eliminating any chance of exhaust leaks.

  • What is a fixed orifice exhaust brake?

    Casey Rogers | 5/21/2019

    This is a traditional style exhaust brake tuned for maximum allowable backpressure at the maximum engine rated RPM by the drilling of a carefully selected hole size in the butterfly valve.

  • Explain an direct mount exhaust brake?

    Roger White | 5/21/2019

    DirectMount –This application is preferred because of the reduced number of connections between the exhaust brake and the turbocharger. The mating surfaces are both machined cast iron which eliminates any chance of exhaust leaks.

    For vehicles with straight back systems shortening of the header pipe is required to maintain an adequate amount of flex pipe. Vehicles with a 90° header pipe use a cast elbow to interface with the stock header pipe. Pacbrake offers replacement header pipes for some truck models.
