Pacbrake PRXB High Performance Exhaust Brake DirectMount Comes with Air Tank/Hose and Accessory Kit - C44045

Thoroughbred Sku #: PACC44045
Manufacturer Sku #: C44045

Your Selected Vehicle Does Not Fit, Please Select a Vehicle

Select a Vehicle

Selected Vehicle

Select Vehicle

Year/Make/Model: {{year}} {{make.Name}} {{model.Name}} Edit

Item Options:

Install Sheet - PDF:
Shipping Restrictions:
This part is NOT available to ship to the state of California.


$1,285.64

free-shipping-no-handling

Applications:

View All applications

VERIFY VEHICLE FIT
Add a Optional Switch Pac?

Call Us For Free Advice

(859) 737-4966

Call Us For Free Advice

(859) 737-4966
pacbrake

View More Products From

Pacbrake

Product Details

Product Name: Pacbrake PRXB Exhaust Brakes
Manufacturer: Pacbrake
Manufacturer Part #: C44045
Thoroughbred Diesel Part #: PACC44045
Fitment Notes: 2004.5 - 2007 Dodge RAM Cummins 5.9L 24 Valve Engine w/ Standard Transmission and Dodge RAM 2006 - 2007 Cummins 5.9L 24 Valve Engine with 48RE Automatic Transmission

PRXB offers the highest braking power to lowest price ratio available. Pacbrake’s flagship product is the unquestioned leader in the supplemental brake industry. It has changed the way people think about exhaust brakes by providing performance, safety and durability that is unmatched by any other exhaust brake on the market.

Features:

  • The spring controlled pressure regulated mechanism on the exhaust brakes protects against engine overpressure
  • Pacbrake exhaust brakes are designed specifically for individual engine applications to maximize performance and reliability. They are not a one size fits all compromise
  • When the brake is deactivated, exhaust flow is unrestricted and won't interfere with power output Patented 90 degree Non-contacting Butterfly Valve is specially engineered to maximise backpressure while preventing seizing
  • The brakes use industry exclusive Arcor nitride coating on housing and components which increases resistance to wear and corrosion while strengthening the exhaust brake and adding lubricity
  • Precision machined surfaces on the exhaust brake eliminate the need for troublesome gaskets and risk of leakage
  • The brakes have hard anodized aluminum and stainless steel body and shaft with high performance seals
  • Maintenance is as simple as using the exhaust brake on a regular basis and periodically applying Superlube (Pacbrake's multi-purpose heat resistant lubricant which helps to prevent rust and corrosion)
  • Withstands extremely high exhaust temperatures
  • Compliant with latest emission regulations
  • Severe duty & military approved

Benefits:

  • Delivers the strongest braking horsepower, greatest speed reductions & shortest stopping distances possible without the use of service brakes
  • Maintains optimum retarding performance by maximizing the exhaust backpressure throughout the entire operating RPM range
  • Delivers maximum exhaust pressure (braking) as low as 1200 RPM through to the maximum allowable engine RPM
  • Provides increased performance and peace of mind with technology that protects the engine from the potential of overpressure

Kit Contents:

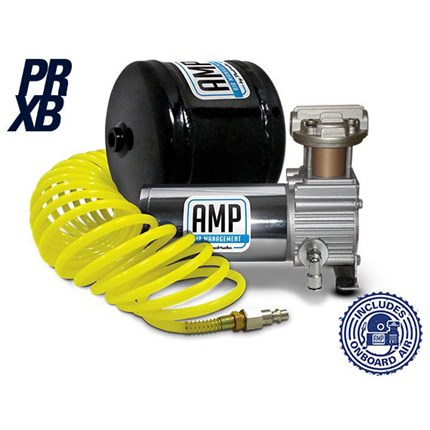

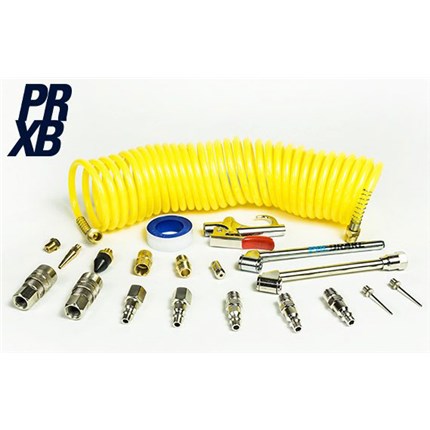

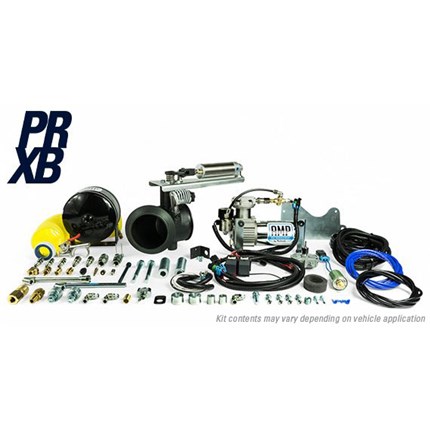

Every PRXB Automotive Kit comes with everything required for a complete installation. PRXB Exhaust Brake, Controller (when required for application) and AMP Onboard Air Kit, which includes: HP325 Series Compressor, 0.5 Gal Air Tank, 25ft Coiled Air Hose, Air Accessories and Fittings Kit.

Upgrade any standard exhaust brake to a PRXB for an improved design and a longer lasting brake with significantly increased performance. Tow & haul with complete control.

Reviews

Submit a question

  • How long of warranty do you have on the air compressor

    Tyrel ivins | 6/3/2023

    1 yr

  • Can I use this direct mount on my 2007 dodge 5.9 I have 5 inch exhaust or would I have to go with the inline model

    Steven | 6/19/2020

    You would need an inline system, due to the 5” exhaust.

  • How I know if I need onbord air

    Manny | 2/12/2021

    Does your vehicle have an air compressor now?

  • What part number for 2005 Dodge Ram auto built 4/05 exhaust brake pacbrake or BD exhaust

    Gary Knudson | 5/11/2019

    The correct part number for your truck will be PACC44052.  That is the exhaust brake for the 2005 trucks that includes the air compressor and is direct mount to your stock turbo.

  • If I turn on my exhaust brake when my truck is first started, will it help to warm my engine sooner in cold weather?

    Jim Hader | 5/21/2019

    Yes! This is a bonus feature of an exhaust brake. It creates a restriction at idle that puts a slight load on the engine, causing the engine to warm up faster.

  • My exhaust brake comes on at a idle, why is that?

    Robbie Maines | 5/21/2019

    This is a normal operation if the engine is not warm. This allows the engine to warm up sooner by increasing engine load at idle. This feature can be turned off by cycling the toggle switch 8 times.

  • How can I tell how much back pressure my exhaust brake is producing?

    Wade Harris | 5/21/2019

    Every Pacbrake exhaust brake has a 1/8" NPT port tapped into the side of the exhaust brake housing. It has a port plug threaded into it from the factory. Remove the plug and install a back pressure gauge to this port. Go for a test drive and observe the backpressure readings.

  • What type of maintenance is needed on my exhaust brake?

    Adam Clark | 5/21/2019

    The exhaust brake requires very little maintenance. If it is switched off the brake will go through an "exercise cycle" which activates the brake 3x at startup. This is to ensure it does not stick or seize up with inactive use. Also, it is recommended to apply a few drops of Pacbrake Super Lube to all pivot points every 3-6 months.

  • Can I change the spring in my PRXB exhaust brake to a stronger one and will it make my exhaust brake harder?

    Jeremy Mineer | 5/21/2019

    No, you cannot. This spring is specifically calibrated and adjusted and made tamperproof on the assembly line. This is done to ensure each application is matched to the maximum engine backpressure and will not cause any damage. Tampering with the springs will void the warranty and potentially cause severe engine damage.

  • When should a turbo mount with a cast adapter be used?

    James Holder | 5/21/2019

    This application is the preferred option for vehicles with a tight 90° bent header pipe post turbocharger. The cast adapter is constructed from cast iron with machined mating surfaces on both ends, eliminating any chance of exhaust leaks.

  • What is a fixed orifice exhaust brake?

    Casey Rogers | 5/21/2019

    This is a traditional style exhaust brake tuned for maximum allowable backpressure at the maximum engine rated RPM by the drilling of a carefully selected hole size in the butterfly valve.

  • Explain an direct mount exhaust brake?

    Roger White | 5/21/2019

    DirectMount –This application is preferred because of the reduced number of connections between the exhaust brake and the turbocharger. The mating surfaces are both machined cast iron which eliminates any chance of exhaust leaks.

    For vehicles with straight back systems shortening of the header pipe is required to maintain an adequate amount of flex pipe. Vehicles with a 90° header pipe use a cast elbow to interface with the stock header pipe. Pacbrake offers replacement header pipes for some truck models.
